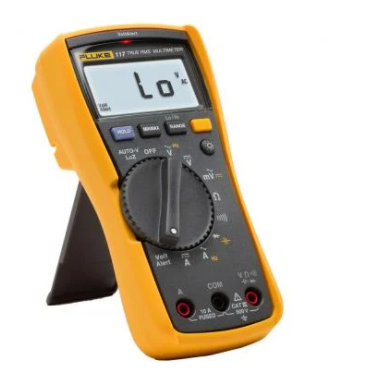

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for:
- Resistance
- Continuity
- Frequency
- Capacitance
- Min/Max/Average
Keep yourself safer with integrated VoltAlert™ technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.
Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.
| Key Features |
| VoltAlert ™ non-contact voltage detection technology |
| Automatic selection of AutoVolt AC / DC voltage |
| Low Input Impedance: Helps to prevent false readings due to voltage residual effect |
| A large, white LED display with backlight makes it easier to work in poorly lit places |
| The measurement of the true effective value enables the accurate measurement of non-linear loads |
| 20 A measurements (instantaneous 30 seconds; continuous 10 A) |
| Resistance, continuity, frequency and capacity |
| Provides Min / Max / Average for logging signal fluctuations |
| The small size and ergonomic shape enable one-handed operation |
| Can be used with the optional Magnetic Hanger (ToolPak ™), keeping your hands free |
| CAT safety class. III 600 V |
| Applications |
| Commercial buildings |
| Hospitals |
| Schools |
| Specifications |
|
|
Fluke FLUKE-117 EUR
Digital Multimeter; True-RMS
|
|
|
| Model Overview |
|
|
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 |
| DC volts | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
|
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy
| 2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)
|
| AC millivolts¹ True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
|
|
|
|
| AC volts¹ True RMS | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
|
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
|
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer. |
|
|
|
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
|
| Accuracy | 0.9% + 1 |
| Range/resolution | 40.00 MΩ / 0.01 MΩ |
| Accuracy | 5% + 2 |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 |
| Capacitance | Range/resolution | 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
|
| Accuracy | 1.9% + 2 |
| Range/resolution | > 1000 μF |
| Accuracy | 5% + 20% |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical |
| AC amps True RMS (45 Hz to 500 Hz) | Range/resolution | 6.000 A / 0.001 A
10.00 A / 0.01 A
|
| Accuracy | 1.5% + 3
20 A continuous overload for 30 seconds max
|
| DC amps | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3
20 A continuous overload for 30 seconds max
|
|
|
|
| Hz (V or A input)² | Range/resolution | 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 Hz
50.00 kHz / 0.01 Hz
|
| Accuracy | 0.1% + 2 |
| Specifications | |
Fluke FLUKE-117 EUR
Digital Multimeter; True-RMS
|
|
| Model Overview |
|
| Features | Parameters |
| Maximum Voltage between any Terminal and Earth Ground | 600 V |
| Safety | IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
|
| Fuse for A Input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4 per second |
| Bar Graph | 33 segments, updates 32 per second |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Battery Type | 9 volt Alkaline, IEC 6LR61 |
| Battery Life | 400 hours typical, without backlight |
