Viavi OLA-54 (2280/41)
OLA-54; Multimode, Variable Attenuator, 50/125 μm
Model
OLA-54 (2280/41)Product Family
Network & Fiber InstallationsManufacturer
ViaviConfigured models contain the following attributes:
Network & Fiber InstallationsFiber Optic AttenuatorsConfigurations
Key Specs
Product Overview
Resources
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

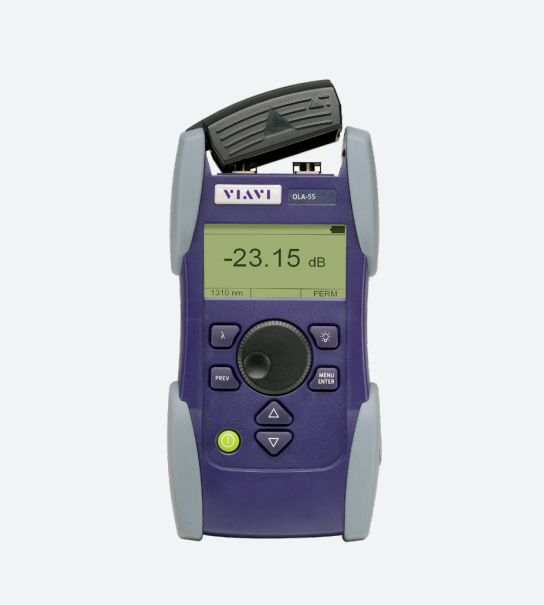

The SmartClass OLA-54/-55/-55M Optical Level Attenuators are future-proof, improved variable attenuators for fiber system testing as well as installation, maintenance, and production of multimode fibers (OLA-54) and singlemode fibers(OLA-55/-55M). The OLA-55M Motorized Optical Level Attenuator provides in addition an implemented power meter for stabilized level controller applications.
The SmartClass OLA-54 and OLA-55 Optical Level Attenuators can be part of a SmartClass Optical Test Kits that contain all of the tools, including instruments and accessories, necessary to perform professional-grade power or loss tests in the field.
| Key Features |
| Robust, shock-proof, and splash-proof design for field operation |
| USB port for remote operation |
| Absolute and relative attenuation setting |
| Level controller function for direct setting of attenuator output level (OLA-55M) |
| 40 Gbps ready due to low Differential Group Delay |
| Traceable measurements to NIST/PTB standards for confidence in accuracy |
| 600 adjustable wavelengths for the OLA-54 and 400 adjustable wavelengths for the OLA-55/55M |
| Long battery operation time of >1000 h (OLA-54/-55) |
| Benefits |
| Reduce testing time with a quick start operation, requiring no warm-up time |
| Provide excellent overall accuracy in use with hundreds of calibrated wavelength |
| Reduce the need for couplers and additional instruments in test setups. |
| Minimize insertion loss due to a special optical design |
| Specifications | |
| Features | Parameters |
| Display | Illuminated graphical display, resolution of 128 × 64 dots Results displayed in dB Backlight function switchable via a separate key |
| Connector | Optical connector interchangeable adapter from BN 2150/00.xx range is suitable for measurements on flat or angled physical contact systems |
| Power Supply | Four dry batteries Mignon/AA, 1.5 V or NiMH rechargeable cells Mignon/AA, 1.2 V Operating time from dry batteries; >300 h Batteries/NiCd/NiMH power saving: The instrument switches off automatically after ~20 min (function can be disabled) AC line operation via separate AC adapter Integrated fast battery charging function (2 hours) External 12 V DC operating via an AC adapter or a 12 V car battery adapter |
| Electromagnetic Compatibility | Corresponds to IEC 61326 (CE conformance) |
| Calibration | Suggested calibration interval; 3 years |
| Ambient Temperature | Nominal range of use: −10°C to +55°C Storage and transport: −40°C to +70°C |
| Dimensions and Weight | W × H × D approximately: 95 × 60 × 195 mm (3.74 × 2.36 × 7.68 in) |
| Weight Approximately | 500 g (1.1 lb) |
| Specifications | ||
SmartClass OLA-54/-55/-55M Optical Level Attenuators | ||
| Model | SmartClass OLA-54 (BN 2280/41 Multimode) | SmartClass OLA-55 (BN 2280/01 Single-mode) (BN 2280/21 Single-mode APC) |
| Table Adjustable Wavelength Range | 750 to 1350 nm in 1 nm Increments | 1260 to 1650 nm in 1 nm Increments |
| Fiber Type | 50/125 µm | 9/125 µm |
| Calibrated Wavelengths | 850 nm, 1300 nm | 1310 nm, 1550 nm, 1625 nm |
| Display Range(1) | <2.5 to 55 dB | 2.0 to 60 dB |
| Minimum Insertion Loss(1) | <2.5 dB | <2.0 dB |
| Linearity | ± 0.2 | ± 0.2 |
| Repeatability of Attenuation Setting(2) | ± 0.1 dB | ± 0.1 dB |
| Total Attenuation Accuracy(1) | typ. ± 0.8 dB | ± 0.8 dB |
| Setting Type | Continuous over the entire range | Continuous over the entire range |
| Function | Bi-directional | Bi-directional |
| Displayed Value(1) | Absolute or relative attenuation value | Absolute or relative attenuation value |
| Max. Permitted Level | +20 dBm | +23 dBm |
Notes:
(1) Including connectors (to IEC874-1, method 6), depending on quality of the connectors applied to the OLA
(2) Excluding remating
| Specifications | |
| Ordering Information | |
| Reference/Order Number | Instrument |
| BN 2280/01 | SmartClass OLA-55 Single-mode, variable attenuator, PC |
| BN 2280/02 | SmartClass OLA-55M Single-mode, variable attenuator incl. level control mode, PC |
| BN 2280/21 | SmartClass OLA-55 Single-mode, variable attenuator, APC |
| BN 2280/22 | SmartClass OLA-55M Single-mode, variable attenuator incl. level control mode, APC |
| BN 2280/41 | SmartClass OLA-54 Multimode, variable attenuator, 50/125 μm |
