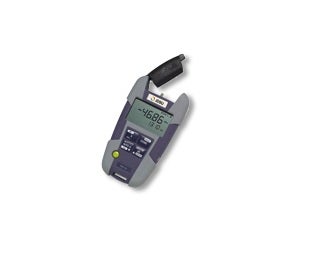

Easy-to-use for technicians at any skill level, SmartPocket optical power meters complement VIAVI optical light sources for insertion loss and continuity testing in both multimode and single-mode networks. They offer a dedicated and cost-optimized solution for testing and troubleshooting fiber in the field with:
Specifications | |
OLP-35 | |
Adjustable Wavelength Range | 780 to 1650 nm, in 1 nm increments |
Calibrated Wavelengths | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
Photo Diode | InGaAs |
Fiber Type | 9/125 to 100/140 |
Power Range | -65 to +10 dBm |
Display Range | -65 to +13 dBm |
Resolution | 0.01 dB, 0.001 µW |
Max. Permitted Level | +16 dBm |
Intrinsic Uncertainty (1) | ±0.2 dB (±5%) |
Linearity (2) | ±0.06 dB |
Overall Measurement Uncertainty (2) 850 nm, 980 nm 1300 nm 1310 nm, 1550 nm 1490 nm, 1625 nm | ±0.35 dB ±0.8 nW ±0.30 dB ±0.1 nW ±0.25 dB ±0.1 nW ±0.35 dB ±0.1 nW |
Notes:
(1) Under reference conditions: -20 dBm (CW), 1310 nm ±1 nm, 23 °C ±3K, 45 to 75% relative humidity, 9 to 50 μm test fiber, ceramic end face
(2) -50 to +5 dBm from -5 to +45 °C
Specifications | |||
Optical Power Meters | |||
Model Overview | |||
Model | OLP-34 | OLP-35 | OLP-38 |
Detector Type | InGaAs | InGaAs | Filtered InGaAs |
Optical Interface/Connectors | Universal 2.5 mm/1.25 mm (1) | Universal 2.5 mm/1.25 mm (1) | Universal 2.5 mm/1.25 mm (1) |
Wavelength Range | 780 to 1600 nm | 780 to 1650 nm | 780 to 1650 nm |
Wavelength Settings | 780 to 1600 nm, step size 1 nm | 780 to 1650 nm, step size 1 nm | 780 to 1650 nm, step size 1 nm |
Programmable Wavelengths | 5 presets (customized) | 5 presets (customized) | 5 presets (customized) |
Calibrated Wavelengths | 850, 980, 1310, 1490, 1550 nm | 850, 980, 1310, 1490, 1550, 1625 nm | 850, 980, 1310, 1490, 1550, 1625 nm |
Power Range | –60 to +5 dBm | –65 to +10 dBm | –50 to +26 dBm |
Display Range | –60 to +10 dBm | –65 to +13 dBm | –50 to +26 dBm |
Max. Input Power | +13 dBm | +16 dBm | +27 dBm |
Measurement Units | dB/dBm/W | dB/dBm/W | dB/dBm/W |
Intrinsic Uncertainty (2) | ±0.2 dB (±5%) | ±0.2 dB (±5%) | ±0.2 dB (±5%) |
Linearity (3) | ±0.06 dB (–50 to +5 dBm) | ±0.06 dB (–50 to +5 dBm) | ±0.06 dB (–32 to +20 dBm) |
Tone Detection | 270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz |
Auto λ Mode (4) | Yes | Yes | Yes |
Multi λ Mode (4) | TwinTest/serial TripleTest | TwinTest/serial TripleTest | TwinTest/serial TripleTest |
Notes:
(1) Optional 1.25 mm UPP accessory adapter is available.
(2) Under these reference conditions: -20 dBm (CW), 1310 nm ±1 nm, 23°C ±3K, 5 to 75% relative humidity 9 to 50 μm test fiber with ceramic DIN connector.
(3) –5 to +45°C. 4. With VIAVI light sources.
Specifications | |
General (typical at 25°C) | |
Storage and Interface Data Storage Data Download Capability | 100 results Micro USB interface for PC transfer |
Power Supply Dry Batteries Rechargeable Batteries AC Operation Battery Life | 2x Mignon (AA) 1.5 V 2x Mignon (AA) NiMH 1.2 V Via micro USB and SNT-505 ≥200 hr Automatic power off after 20 minutes |
Environmental Conditions EMI/ESD Recommended Calibration Interval Operating Temperature Storage Temperature Dimensions (H x W x D) Weight | CE compliant 3 years –10 to +55°C (+14 to +131°F) –40 to +70°C (–40 to +158°F) 30 x 80 x 150 mm (1.2 x 3.1 x 5.9 in) 200 g (0.45 lb) |
Specification | |
OLP-34/35/38 Optical Power Meters | |
Ordering Information | |
Part Number | Description |
2302/11 | OLP-34 optical power meter InGaAs, +5 dBm with data storage and USB download capability |
2302/12 | OLP-35 optical power meter InGaAs, +10 dBm with data storage and USB download capability |
2302/13 | OLP-38 optical power meter Filtered InGaAs, +26 dBm with data storage and USB download capability |
Note: Each optical power meter includes a 2.5 mm UPP adapter, AA alkaline batteries, a quick start guide, neck strap, a belt bag, and a USB connection cable.
Specifications | |||||
OLP-34 Optical Power Meter | OLP-35 Optical Power Meter | OLP-38 Optical Power Meter | |||
Ordering Information | |||||
Part Number | Description | Part Number | Description | Part Number | Description |
BN 2302/01 | Germanium | BN 2302/02 | InGaAs | BN 2302/03 | InGaAs (coated) |
BN 2302/11 | Germanium with USB | BN 2302/12 | InGaAs, with USB | BN 2302/13 | InGaAs (coated), with USB |
