MultiFiber Pro Optical Power Meter and Source is the first fiber tester that can certify MPO fiber trunks without the use of fan-out cords.
This singlemode and multimode MPO fiber testing kit eliminates the complexity of polarity issues, and it makes cassettes easier to test in the field. Whether it is using 10 Gbps preterminated MPO fiber trunks or planning for next-generation 40/100 Gbps Ethernet performance, data centers are standardizing on an MPO connector solution.
Typical data center fiber installation means time-consuming, manual and imprecise MPO validation. MultiFiber Pro Optical Power Meter and Source is 90 percent faster than single fiber cable certification because it measures power loss and validates polarity on 12 fibers in a single connector— reducing test time from weeks to days.
Key Features |
850 nm Multimode and 1550 nm Singlemode MPO trunk testing kit |
Automatic scanning and test of all fibers in MPO connectors with “Scan All” function |
Eliminates the need for fan-out cords when testing MPO fiber trunks |
Automatic detection and analysis of standard 8, 10, and 12 fiber links |
Encircled Flux compliant at bulkhead |
Polarity agnostic referencing |
Benefits | |
Scan All Function | The Scan All function in the MultiFiber Pro Power Meter automatically scans and tests all 12 fibers in MPO connectors – taking just 6 seconds to complete all loss or power measurements. This feature automates the certification of MPO terminated fibers and eliminates the time consuming and manual process of moving the fiber tester from fiber to fiber while using fan-out cords. |
Built-in Polarity Verification | The simple purpose of any polarity scheme is to provide a continuous connection from the link’s transmitter to the link’s receiver. For array connectors, TIA-568-C.0 defines three methods to accomplish this: Methods A, B and C. Deployment mistakes are common because these methods require a combination of patch cords with different polarity types. The polarity measurement of MultiFiber Pro allows the user to test individual patch cords, permanent links and channels for correct polarity. |
On-board MPO Connector | Equipped with MPO connector on both the Optical Power Meter and Light Source, it eliminates the use of costly and complicated fan-out cords to test MPO fibers. Uncovered ports can put cabling, equipment and testers at risk for contamination and affect performance. Ensuring a covered connection on your tester can protect it from dirt and dust. MultiFiber Pro makes it easy by shuttering the MPO connector giving you greater test reliability and peace of mind. |
Simple User Interface | The MultiFiber Pro is so successful at simplifying the task of simultaneously representing polarity, power and loss results for 12 fibers that the user interface is patent pending. The power meter enables the users to easily comprehend the measurement results of 12 fibers simultaneously. The light source identifies each fiber within the MPO connector that is being tested. Any individual measurement that fails the test limit is plainly identified to allow root-cause analysis. This powerful yet straightforward test set enables everyone to become a fiber testing expert and increases efficiency in testing data center projects. |
Select an Individual Fiber | One of the main problems in the data center is the ability to drill down to a single fiber during testing and troubleshooting. MultiFiber Pro can troubleshoot a single fiber within an MPO trunk and provide a single fiber test result. This ability increases MPO connector verification and troubleshooting flexibility with more precise, per-fiber data and reporting. |
Easy Reporting | The MultiFiber Pro Power Meter stores up to 3,000 test results (or the equivalent of 250 MPO cables) internally which can be uploaded to a PC using the LinkWare™ 7 Cable Test Management Software. LinkWare 7 allows you to manage test results, edit cable ID’s, print professional reports and even export the data into spreadsheet formats. |
Kits for Every Need | MultiFiber Pro is available in several convenient kit configurations to meet all your cleaning, inspection and verification testing needs. |
Specifications | |
Optical Power Meter¹ | |
Feature | Parameter |
Detector Type | InGaAs |
Calibrated Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
Measurement Range | 0 dBm to -50 dBm |
Test Time Power Measurement Linearity | 6 seconds ±0.1 dB² |
Power Measurement Uncertainty | ±0.35 dB² |
Power Measurement Repeatability | < 0.10 dB² |
Display Resolution, dB or dBm | 0.01 |
Power Display Units | dBm, mW, µW |
User-Selectable Limit for Loss | 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB |
Auto Wavelength Detection | Yes |
Polarity Detection | Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities |
2 kHz Detection | Yes |
Record Storage | 3000 records, one fiber per record (250 12-fiber cables) |
External Interface | USB 2.0, full speed |
Optical Connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover. |
Power Requirement | 2 AA alkaline batteries |
Battery Life³ | 30 hours (typical) |
Automatic Power-Off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
Low Battery Warning | Low battery icon blinks |
Operating Temperature | -10ºC to +50ºC |
Storage Temperature | -20ºC to +50ºC |
Operating Humidity | 95% (10ºC to +35ºC) non-condensing 75% (35ºC to +45ºC) non-condensing Uncontrolled <10ºC |
Operating Altitude | 4,000 m |
Storage Altitude | 12,000 m |
Vibration | Random 2 G, 5 Hz to 500 Hz |
Dimensions | 5.8 in x 3.2 in x 1.6 in 14.7 cm x 8.0 cm x 4.0 cm |
Weight | 10.9 oz 309 g |
Note:
¹ Specifications apply at 23ºC (73ºF), unless otherwise noted
² For a continuous-wave optical signal.
³ Measured power levels≤ 0 dBm. Backlight on. Battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
Specifications | |
MultiFiber Pro | |
Model Overview | |
Model | Description |
MFTK1200 | MultiFiber Pro 850 nm Multimode Kit Iincludes: MultiFiber Pro Power Meter 850 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case. |
MFTK-SM1310 | MultiFiber Pro 1550 nm Singlemode Kit Includes: MultiFiber Pro Power Meter 1550 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case |
MFTK-SM1550 | MultiFiber Pro 1550 nm Singlemode Kit Includes: MultiFiber Pro Power Meter 1550 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case |
MFTK-MM850-SM1310 | MultiFiber Pro Multimode & 1310 nm Singlemode Kit Includes: MultiFiber Pro Power Meter 850 nm Light Source 1310 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case |

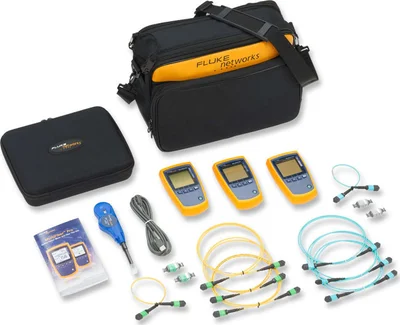

MFTK-MM850-SM1550 | MultiFiber Pro Multimode & 1550 nm Singlemode Kit Includes: MultiFiber Pro Power Meter 850 nm Light Source 1550 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case |
OFPQI-MFP | The complete kit for the Network Technician who needs to test ultra-short fiber links, verify polarity with MPO fiber trunks and inspect data center connection types. This kit includes everything you need - the OptiFiber® Pro OTDR, the MultiFiber™ Pro Loss Length tester and the MPO inspection tip-for troubleshooting multimode and singlemode fiber, field testing multimode MPO components and inspecting MPO ports and endfaces on fiber optic connectors. |
OFPMI-MFP | The complete kit for the Network Technician who needs to test ultra-short fiber links, verify polarity with MPO fiber trunks and inspect data center connection types. This kit includes everything you need - the OptiFiber® Pro OTDR, the MultiFiber™ Pro Loss Length tester and the MPO inspection tip—for troubleshooting mulitmode fiber, field testing MPO components and inspecting MPO ports and end-faces on fiber optic connectors. |
