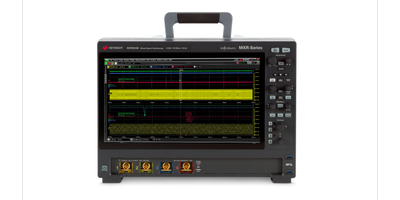

XR6-class Oscilloscope, 6 GHz, 4 Analog channels
Keysight XR6-class Expert oscilloscopes include the Infiniium EXR and MXR
6 GHz on all 4 channels, option to integrate up to 8 instruments in one, hardware accelerated plotting, and fully upgradeable, including up to 8 channels.
| KEY FEATURES |
| Up to 6 GHz bandwidth on all 4 channels all the time |
| Up to 70% faster jitter analysis (compared to MXR A) |
| 65% faster power integrity analysis (compared to MXR A) |
| 45% faster FFTs (compared to MXR A) |
| 15% faster USB 2.0 compliance testing (compared to MXR A) |
| New standard features InfiniiScan and Wave Gen |
| Maximum memory is a flexible 1.6 G points |
| Capabilities are extended with 8-in-1 instrument integration |
| Upgradeable in every possible way — including bandwidth and channel upgrades |
| BENEFITS |
|
| Introduction | Minimize the risk of launching products susceptible to bugs and failures with an oscilloscope that displays the truest, granular details.
Built from the same high-performance standard set by the MXR A, the MXR BSeries boasts newer, hardware-accelerated technology that speeds up test time. In addition to faster hardware, the MXR B-Series includes standard features like Keysight’s state-of-the-art InfiniiScan Event Identification Software, a built-in, 50 MHz arbitrary waveform generator, and a 50 MHz frequency response analyzer.
The automated analysis tools, extra-low, front-end noise, and uncompromised performance of the MXR B-Series enable you to test faster, shorten time to market, and design without compromise using an oscilloscope that delivers dependable results.
|
| MXR B-Series | Welcome to the Infiniium MXR B-Series. With twelve models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, the Infiniium MXR B-Series is designed to meet your needs today.
With a fully upgradeable platform, it will be ready for your measurement needs tomorrow.
|
| SPECIFICATIONS |
|
| Model: MXR604B |
|
| Features | Parameters |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Display Size | 15.6 inch |
| DDC RTSA | Yes |
| Maximum Sample Rate | 16 GSa/s |
| ADC Resolution | 10 bits |
| Brands Included | MXR Series |
| Maximum Memory Depth | 1.6 Gpts |
| Maximum Bandwidth | 6 GHz |
| SPECIFICATIONS |
|
| Infiniium MXR B-Series |
|
| Features | Parameters |
| Analog Channels | 4 or 8, upgradeable |
| Bandwidth | 500 MHz to 6 GHz, upgradeable |
| Sample Rate | 16 GSa/s |
| Memory | 200 Mpts, upgradeable to 400 Mpts or 1.6 Gpts flexible memory 1 |
| Resolution | 10 bits, up to 16 with high resolution |
| ENOB | As high as 9.0 |
| Timebase Accuracy | 8 parts per billion |
| Intrinsic Jitter | As low as 118 fs |
| Noise (1 mV/div) | As low as 43 µV |
| Digital Logic Channels | 16, dedicated input, upgradeable |
| Integrated Tools | 8-in-1 |
| Eye Diagram Speed | > 750,000 UI/s |
| Screen Display | 15.6” touch, full HD, dual screen support |
Note:
1 Please see data sheet spec tables to learn more about the 1.6 Gpts combined flexible memory option
| SPECIFICATIONS |
|
|
| Infiniium MXR B-Series |
|
|
| Model Overview |
|
|
| Model | Channels | Parameters |
| MXR054B | 4 | 500 MHz |
| MXR058B | 8 | 500 MHz |
| MXR104B | 4 | 1 GHz |
| MXR108B | 8 | 1 GHz |
| MXR204B | 4 | 2 GHz |
| MXR208B | 8 | 2 GHz |
| MXR254B | 4 | 2.5 GHz |
| MXR258B | 8 | 2.5 GHz |
| MXR404B | 4 | 4 GHz |
| MXR408B | 8 | 4 GHz |
| MXR604B | 4 | 6 GHz |
| MXR608B | 8 | 6 GHz |
