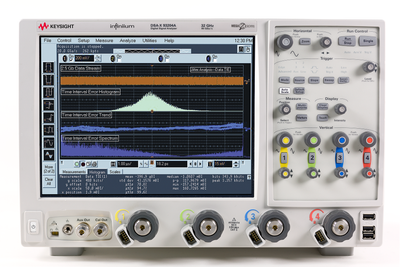

Keysight Technologies DSAX93204A

Whether you’re deploying emerging high speed serial bus technology, validating today’s high-speed digital designs, identifying spectral content of wide-bandwidth RF signals, or analyzing transient physical phenomena, you need the truest representation of your signals under test. The Keysight Infiniium 90000 X-Series oscilloscopes are engineered for 33 GHz true analog bandwidth that delivers. By investing in a proprietary integrated circuit process, Keysight has enabled high-frequency capability while yielding the industry’s lowest noise floor and jitter measurement floor; giving the 90000 X-Series true analog hardware performance to 33 GHz. It is ideal for directly digitizing the K and Ka band as well as validating SAS-3, FibreChannel, and other high-speed digital busses. It can even analyze 100 GbE with ease. The 90000 X-Series deliver the lowest noise and have the lowest jitter measurement floor in the industry, ensuring superior measurement accuracy.

Key Features:

• Industry’s most accurate 33 GHz true analog bandwidth
• 80 GSa/s sample rate 2 channels / 40 GSa/s sample rate 4 channels
• Industry deepest memory with up to 2 Gpts memory (50 Mpts per channel standard)
• 33 GHz of true analog bandwidth
• Industry’s lowest oscilloscope noise floor (2.15 mVrms at 33 GHz at 50mV/div)
• Lowest jitter measurement floor (<100 fS)
• New calibration leads to industry-leading spurious-free dynamic range
• Fully customized probe amplifier s-parameter characteristics provides accurate probe correction for each individual probe amplifier
• Industry’s first bandwidth-upgradeable probes mean you will be prepared for your evolving probing needs
• PrecisionProbe allows you to quickly characterize any input to your oscilloscope
