When you’re deploying emerging high speed serial bus technology, identifying spectral content of wide-bandwidth RF signals, or analyzing transient physical phenomena, you need the truest representation of your signals under test. The Keysight Infiniium 90000 X-Series oscilloscopes are engineered for up to 33 GHz true analog bandwidth that delivers. By investing in a proprietary integrated circuit process, Keysight has enabled high-frequency capability while yielding the industry’s lowest noise floor and jitter measurement floor; giving the 90000 X-Series true analog hardware performance to 33 GHz. The 90000 X-Series deliver the lowest noise and have the lowest jitter measurement floor in the industry, ensuring superior measurement accuracy.

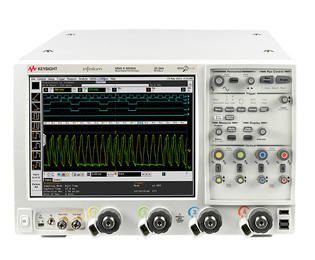

With its 25 GHz of true analog bandwidth, the MSOX92504A is ideal for directly digitizing signals into the K band as well as validating 10 Gbps signals.
The MSOX92504A features 16 fully-integrated, time-aligned digital channels that give you insight into timing relationships and allow precise triggering. The MSOX92504A has special modes designed to help with debug and validation of memory systems.
Key Features:
- 25 GHz true analog bandwidth, upgradable to 33 GHz
- 80 GSa/s sample rate 2 channels / 40 GSa/s sample rate 4 channels
- Industry deepest memory with up to 2 Gpts memory with 20 Mpts per channel standard (50 Mpts per channel with DSA option)
- Industry-leading 16 channels with up to 20 GSa/s timing resolution
- Industry’s highest true analog bandwidth (twice the analog bandwidth of leading competitor)
- Industry’s lowest oscilloscope noise floor (1.85 mVrms at 25 GHz at 50mV/div)
- Lowest jitter measurement floor (<100 fS)
- New calibration leads to industry-leading Spurious Free Dynamic Range (SFDR)
- Fully customized probe amplifier s-parameter characteristics provides accurate probe correction for each individual probe amplifier
- Industry’s first bandwidth-upgradeable probes mean you will be prepared for your evolving probing needs
- PrecisionProbe allows you to quickly characterize any input to your oscilloscope
- Digital channels are fully compatible with Keysight’s 90-pin logic analyzer probes
