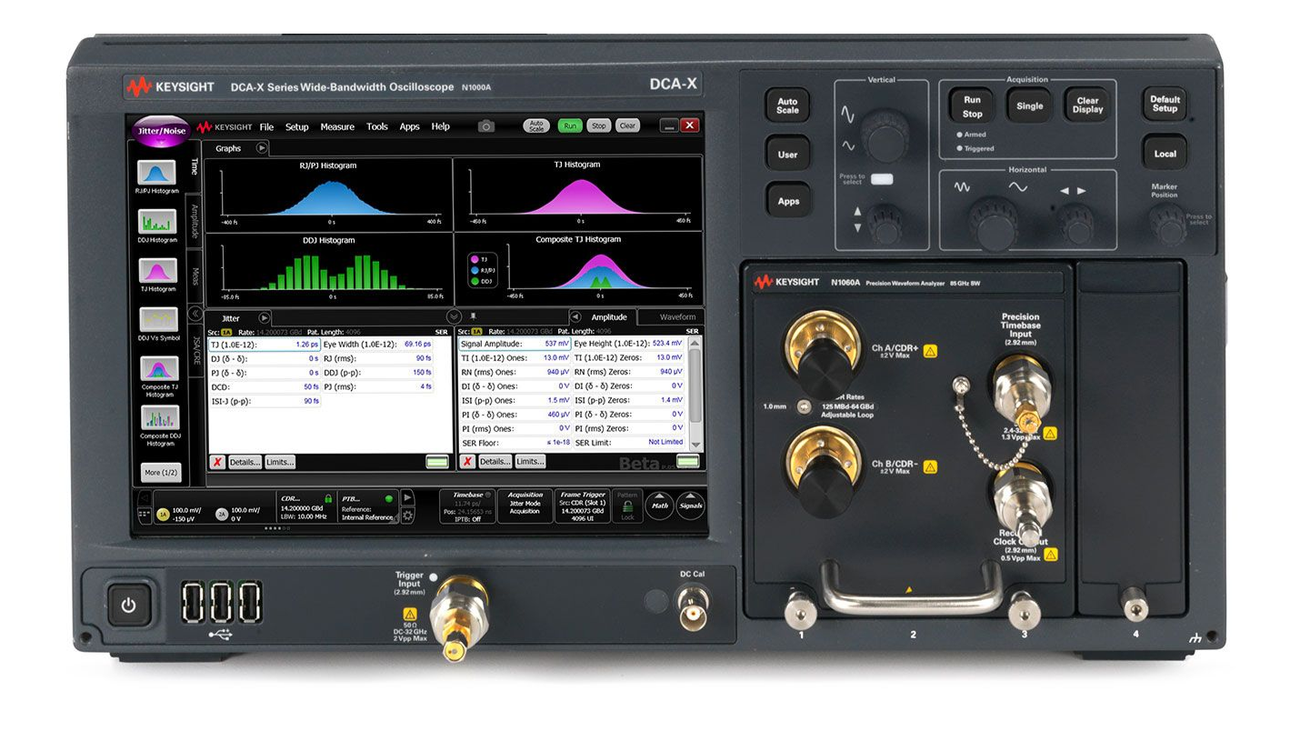

N1000A DCA-X is a wide bandwidth oscilloscope mainframe for measurements on high-speed signals from 50 MBd to more than 80 GBd or >100 GHz on up to 16 channels.
The Keysight N1000A DCA-X wide-bandwidth oscilloscope provides accurate and precise measurements on high-speed digital designs from 50 Mb/s to 224 Gb/s. Configure the N1000A DCA-X mainframe by selecting from plug-in modules to match your desired bandwidth, filtering, and sensitivity.
| KEY FEATURES |
| DCA-X platform consists of a mainframe and a wide variety of modules for flexible testing. |
| The consistency and flexibility of the DCA-X series ensure high accuracy in any measurement. |
| Supports today’s modules plus older, discontinued optical, electrical, and TDR modules to help protect your investment from obsolescence. |
|
| Test bandwidth to > 110 GHz, jitter as low as 50 fs, and noise as low as 275 uV. |
| Sample rates are up to 250 kSa/s and support up to 16 channels for high test throughput. |
| Customize with plug-in modules for precision optical, electrical, and / or TDR / TDT / S-parameter analysis. |
| 8X improvement in time interval accuracy |
| Temperature controlled timebase improves tolerance to ambient changes |
| SPECIFICATIONS |
|
| N1000A DCA-X Wide-Bandwidth Oscilloscope Mainframe |
|
| Features | Parameters |
| Applications | DCA-X Mainframe |
| Maximum Memory Depth | N/A |
| Bandwidth Options | >100 GHz |
| Electrical Channels | N/A |
| Optical Channels | N/A |
| Number of Channels | Up to 16 electrical and optical channels |
| Form Factor | Benchtop |
| Type | Equivalent-Time |
| Instrument Type | Equivalent-Time |
| Maximum Bandwidth | 100 GHz |
| Bandwidth | >100 GHz |
| Wavelength Range | 1250 nm to 1650 nm |
| Maximum Memory Depth | N/A |
| Maximum Sample Rate | 250 kHz |
| Input Type | 2.92 mm |
| Intrinsic Jitter | 90 fs rms |
| Module Type | Mainframe |
| Operating System | Windows 10 |
| Supported Filter Range | Up to 130 GHz/195 GBd |
| SPECIFICATIONS |
|
| DCA-X Wide-Bandwidth Oscilloscope Mainframe Overview |
|
| Model - Option Number | Description |
| N1000A | Infiniium DCA-X Mainframe |
| N1000A-PLK | Pattern Lock |
| N1000A-STB | Standard Timebase |
| N1000A-LOJ | Low jitter timebase |
| N1000A-PTB | Precision Timebase Integrated in the Mainframe |
| N1000A-GPI | GPIB Card Installed (mandatory option) |
| SPECIFICATIONS |
|
| DCA-X Modules Overview |
|
| Model | Description |
| N1000A | Infiniium DCA-X Mainframe |
| Optical Electrical Modules * |
|
| N1030A | Single 65 GHz optical channel, 9/125 μm fiber input |
| N1030B | Two 65 GHz optical channels, 9/125 μm fiber input |
| N1032A | Single 120 GHz optical channel, 9/125 μm fiber input |
| N1032B | Two 120 GHz optical channels, 9/125 μm fiber input |
| Dual/ Quad Electrical Channel Modules * |
|
| N1040A | Dual electrical channel module |
| N1045B | 2/4 port 60 GHz electrical remote head |
| N1046A | 100 GHz, 1/2/4 port electrical remote sampling head |
| TDR/TDT Modules * |
|
| N1055A ¹ | 35/50 GHz 2/4 Port electrical remote head module with TDR/TDT |
| Precision Waveform Analyzer Module * |
|
| N1060A | Precision waveform analyzer ² |
| External Clock Recovery Solutions Module * |
|
| N1076B | Electrical clock recovery |
| N1077A | Optical/electrical clock recovery |
| N1077B | Optical/electrical clock recovery |
| N1078A | Optical/electrical clock recovery |
| DCA-M Sampling Oscilloscope Module * |
|
| N1090A | Optical sampling oscilloscope |
| Optical DCA-M Sampling Oscilloscope Module * |
|
| N1092A | Single optical channel oscilloscope |
| N1092B | Dual optical channel oscilloscope |
| N1092D | Quad optical channel oscilloscope |
| N1092C | Single optical, dual electrical channel oscilloscope |
| N1092E | Dual optical, dual electrical channel oscilloscope |
| Electrical DCA-M Oscilloscope Module * |
|
| N1094A | Dual electrical channel oscilloscope |
| N1094B | Quad electrical channel oscilloscope |
Note:
* Please See Data Sheet in Resources for module options
¹ When used in an 86100D, 86100D option ETR is recommended if more than one TDR module is connected to the same DUT
² Module includes a custom System Impulse Response Correction (SIRC) file for each channel .
