Keysight Technologies N1032A

Single Channel Optical Module; 90/120 GHz

Model

N1032A

Product Family

Oscilloscopes & Logic Analyzers

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscopes & Logic AnalyzersSampling Oscilloscopes

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

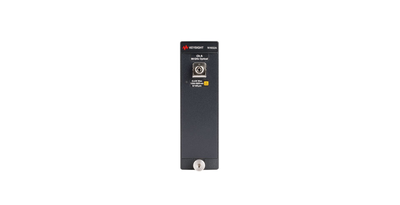

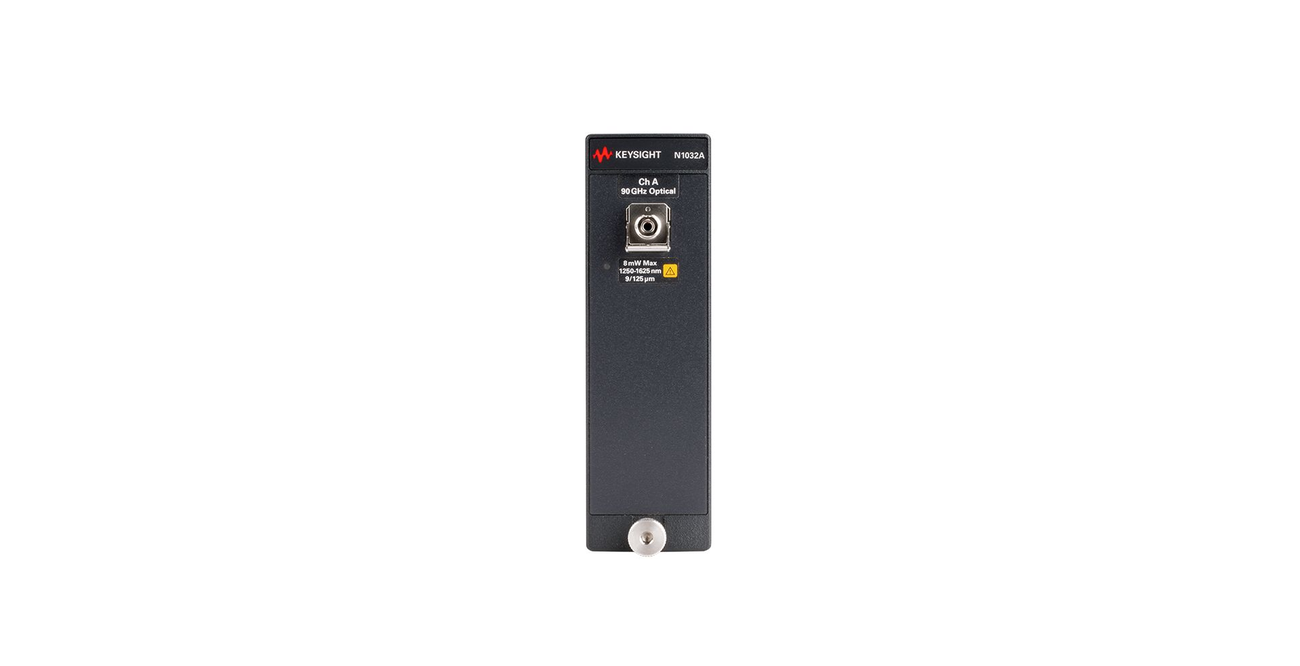

The N1032A is an optical plug-in module for the DCA-X mainframe that includes one optical channel up to 120 GHz.

Key Features

One 90 GHz (standard)/120 GHz (optional) optical channel

Jitter as low as 90 fs

Ideal for analyzing 112 GBd (224 Gbps) optical signals or any application that require ultra-wide optical receiver > 65 GHz bandwidth (-3 dBo)

Impulse response correction (Option IRC) is a standard feature and hardware filters for standards-based rates are optional

Protect your investment: works with both the N1000A (250 kSa/s sampling rate) and 86100D (40 kSa/s sampling rate) mainframes

Benefits

Up to 120 GHz optical bandwidth

1 to 8 channels per mainframe

Maximum Sampling Rate:

In 86100D mainframe: 40 kSa/s

In N1000A mainframe: 250 kSa/s

Specifications
N1032A 90/120 GHz Single Channel Optical Module
Feature	Parameter
Applications	NRZ PAM4
Bandwidth	120 GHz optical
Channels	1 optical
Input Type	FC/PC optical
Instrument Type	Equivalent-Time
Max Memory Depth	n/a
Max Sample Rate	Up to 250 KHz
Module Type	SM Optical
Operating System	Windows 10
Supported Filter Range	49.7 GBd to 112.5 GBd
Type	Equivalent-Time

Specifications
DCA-X Modules
Model Overview
Model	Description
N1000A	Infiniium DCA-X mainframe
86100D	Infiniium DCA-X Wide-Bandwidth Oscilloscope Mainframe
Optical Electrical Modules *
N1030A	Single 65 GHz optical channel, 9/125 μm fiber input
N1030B	Two 65 GHz optical channels, 9/125 μm fiber input
N1032A	Single 120 GHz optical channel, 9/125 μm fiber input
N1032B	Two 120 GHz optical channels, 9/125 μm fiber input
Dual/ Quad Electrical Channel Modules *
N1040A	Dual electrical channel module
N1045B	2/4 port 60 GHz electrical remote head
N1046A	100 GHz, 1/2/4 port electrical remote sampling head
TDR/TDT Modules *
N1055A ¹	35/50 GHz 2/4 Port electrical remote head module with TDR/TDT
Precision Waveform Analyzer Module *
N1060A	Precision waveform analyzer ² (6)
External Clock Recovery Solutions Module *
N1076B	Electrical clock recovery
N1077A	Optical/electrical clock recovery
N1077B	Optical/electrical clock recovery
N1078A	Optical/electrical clock recovery
DCA-M Sampling Oscilloscope Module *
N1090A	Optical sampling oscilloscope
Optical DCA-M Sampling Oscilloscope Module *
N1092A/B/D	Single optical channel oscilloscope
N1092B	Dual optical channel oscilloscope
N1092D	Quad optical channel oscilloscope
N1092C	Single optical, dual electrical channel oscilloscope
N1092E	Dual optical, dual electrical channel oscilloscope
Electrical DCA-M Oscilloscope Module *
N1094A	Dual electrical channel oscilloscope
N1094B	Quad electrical channel oscilloscope

Note:

* Please See Data Sheet in Resources for module options

¹ When used in an 86100D, 86100D option ETR is recommended if more than one TDR module is connected to the same DUT

² Module includes a custom System Impulse Response Correction (SIRC) file for each channel .

Specifications
Optical Channel Module
Model Overview
Model	Description
N1032A	Single Optical Channel Module
N1032B	Dual Optical Channel Module
N1032A Option
N1032A-09U	90 GHz Unamplified Optical Channel
N1032A-13U	120 GHz Unamplified Optical Channel
N1032A-112	Hardware filters for Standards-based rates
N1032A-IRC	Impulse response correction
N1032B Option
N1032B-09U	90 GHz Unamplified Optical Channel
N1032B-13U	120 GHz Unamplified Optical Channel
N1032B-112	Hardware filters for Standards-based rates
N1032B-IRC	Impulse response correction
