Maximize your uptime with the new Keysight Technologies, Inc. AC6800B Series basic AC power sources, and test your devices with confidence your products will perform as designed – even if voltage from the AC power grid is fluctuating or you are facing extreme inrush current or transient spikes.
Key Features:
- Increase your uptime with stable, reliable AC power source
- Engineer reliability into your designs with a basic AC power source
- Test your designs with confidence
- Test under real-world conditions - fluctuating voltage or transient spikes
- Easily access setup and measurement information
Testing Universal Power Supplies Designed to Work Globally:
The AC6800 AC source can be used to output the voltages and frequencies found around the world. The AC6800 has many built-in measurements, it can accurately measure power in Watts, VA, and phase angle. Inrush current can be measured consistently by setting the phase angle at which the voltage turns on.
Testing Avionic Electronics Designed for 400 Hz:
If you need single-phase 400 Hz power on the bench to check avionic electronics the AC6800B series can supply clean power. The AC6800 series offers a wide variety of input voltages and frequencies and can provide 500 VA to 4 kVA. It is currently used in development, manufacturing, and repair of avionic electronics.
Testing Commercial Light Drivers and Ballasts:
LED drivers and fluorescent ballasts can be tested up to 310 VAC which ideal for testing electronics to 277 VAC ± 10%. In manufacturing, many ballasts can be verified in parallel with an AC source capable of 500 VA to 4 kVA. An AC6800B series is used to output steady voltage allowing the ballast to be tested for efficiency and output regulation.
Specifications |
|

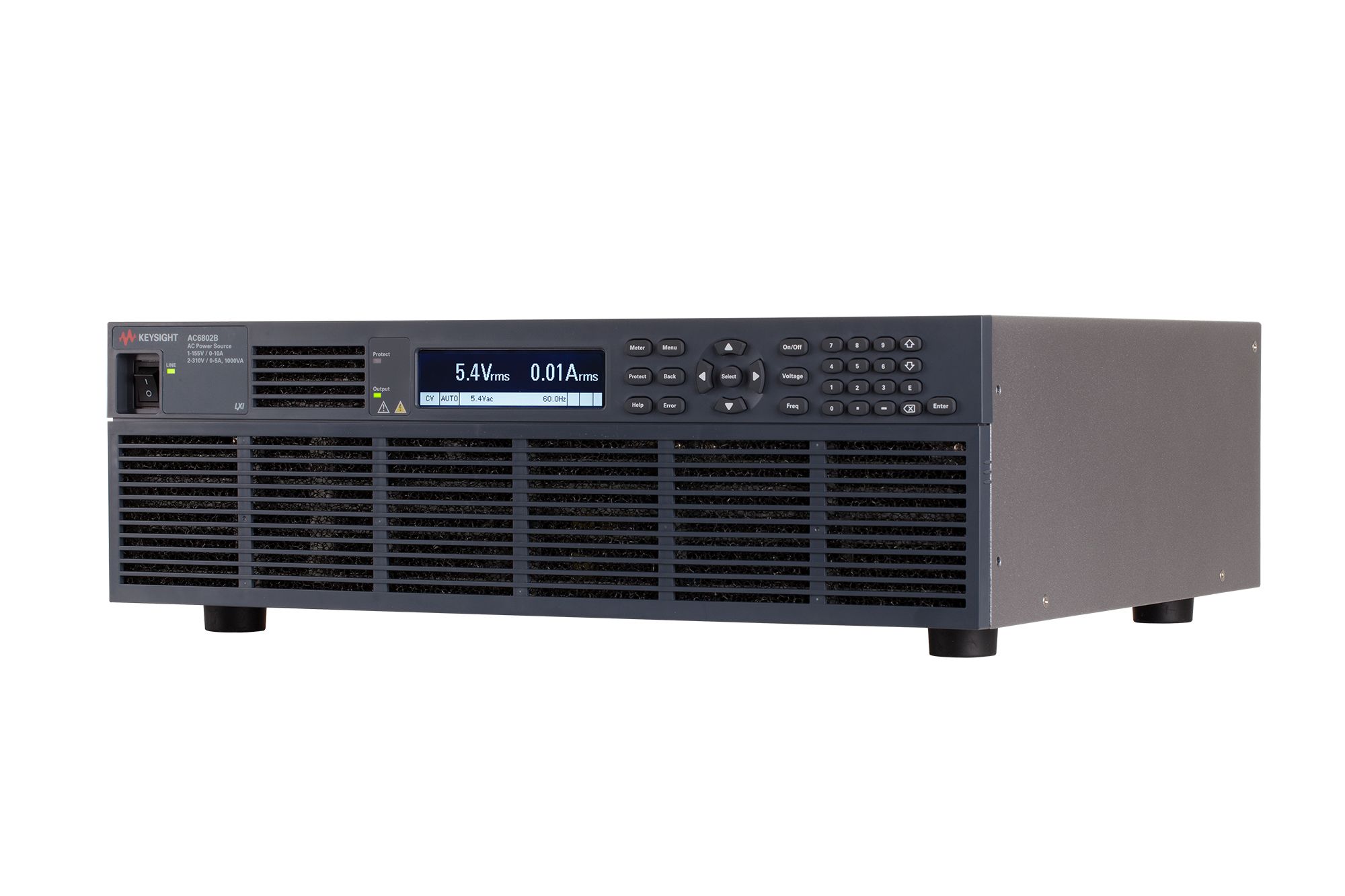

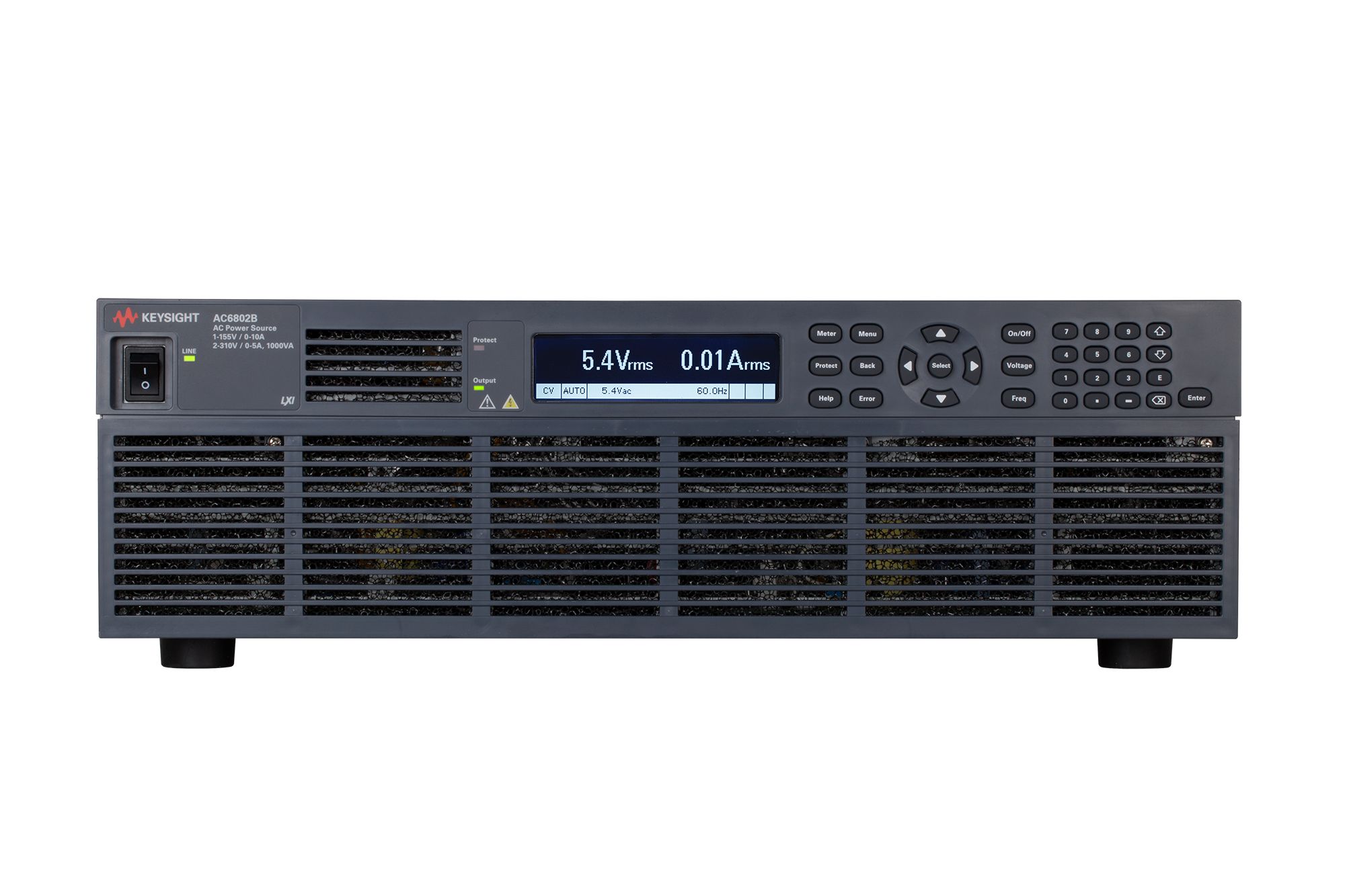

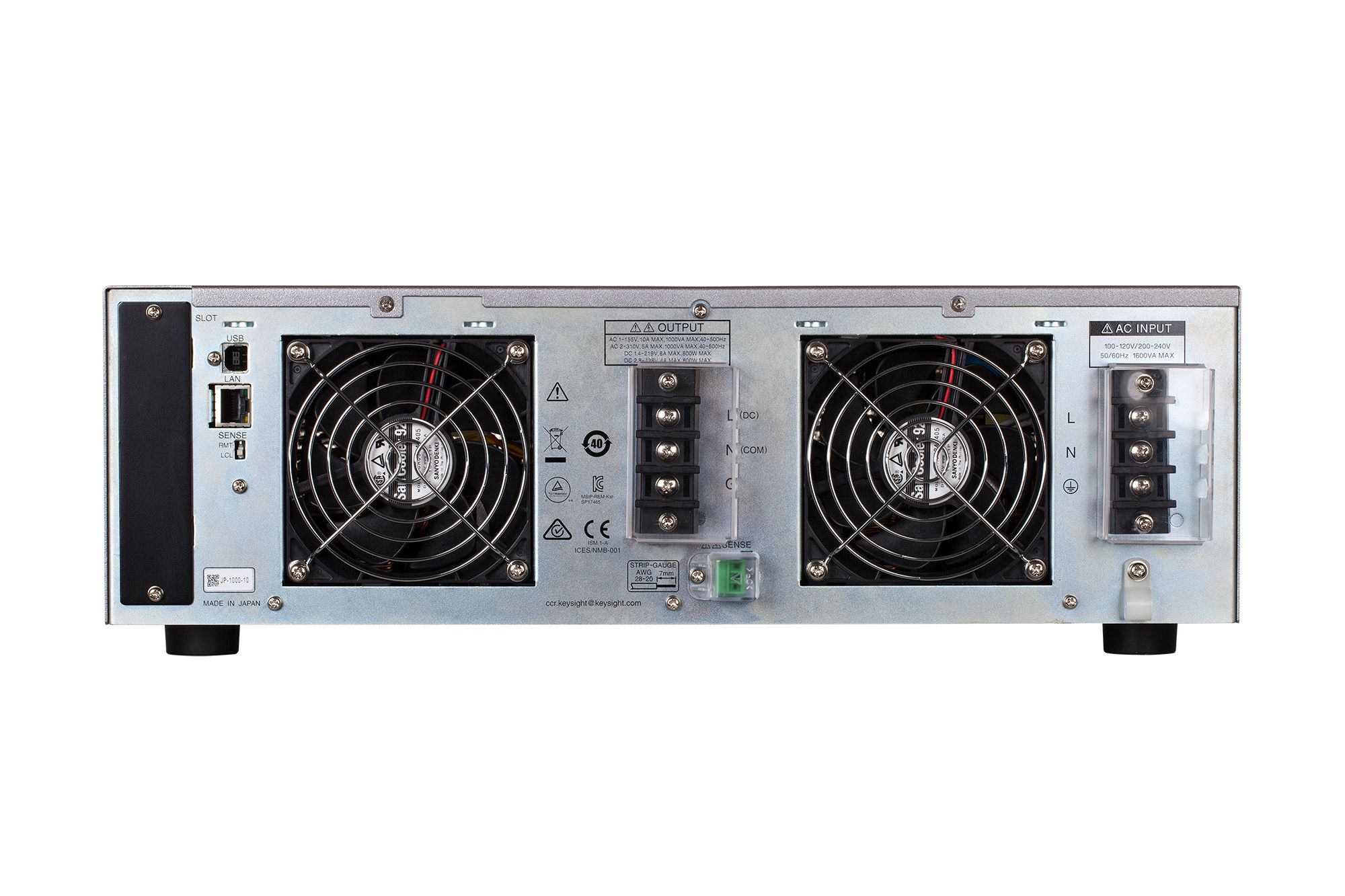

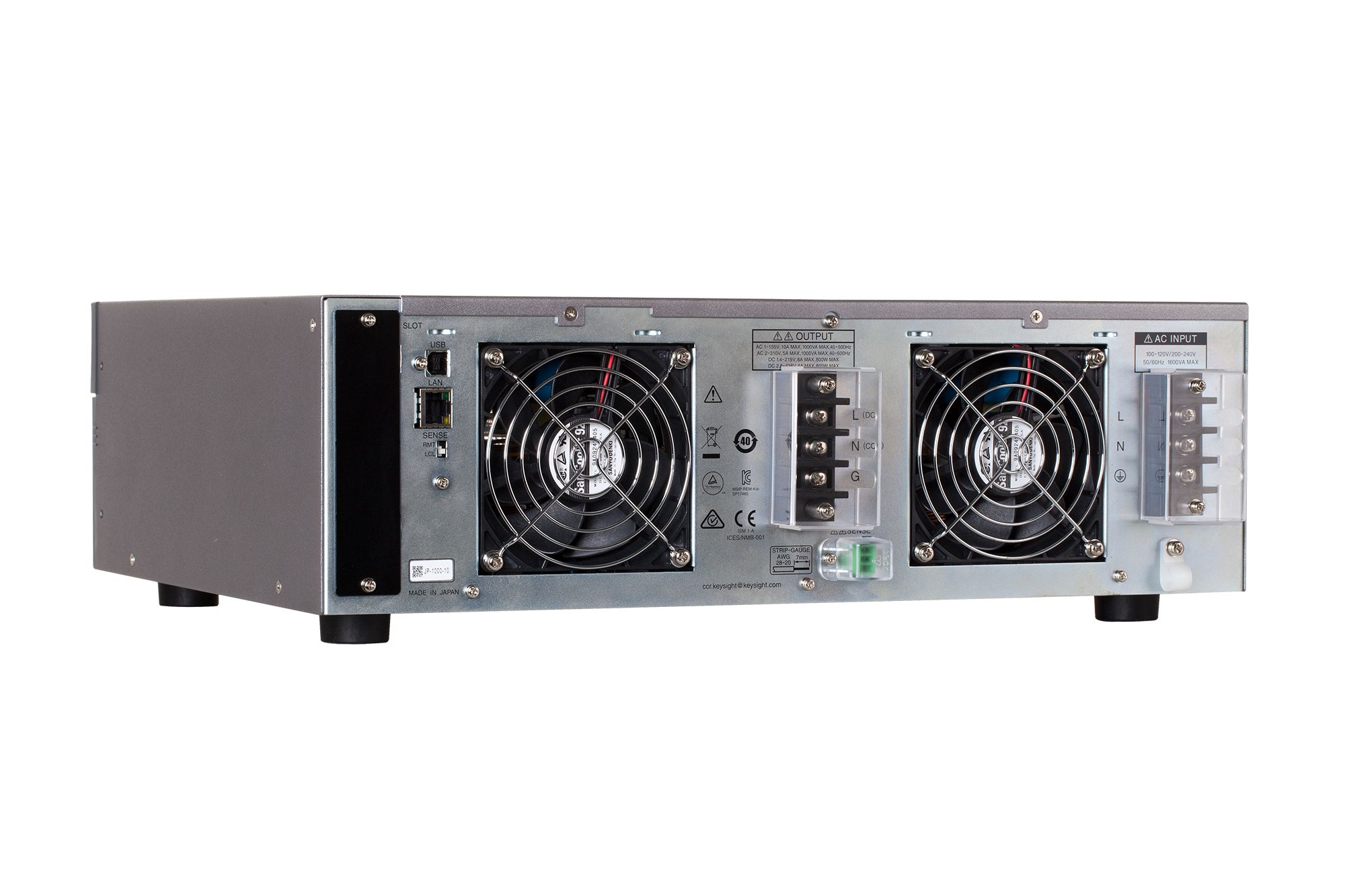

AC6802B Basic AC Power Source |
|
Features | Parameters |
Maximum Output Power | 1000 VA |
Maximum rms Current | 10 A |
Connectivity | LAN
USB
|
Basic | Yes |
Peak Current | 30 A |
Maximum Frequency | 500 Hz |
DC Power | 800 W |
DC Voltage | 219 V/438 V |
DC Current | 8 A |
RMS Voltage | 155 Vrms/310 Vrms |
Specifications |
|
|
|
|
Basic AC Power Source Overview |
|
|
|
|
Model | AC6801B | AC6802B | AC6803B | AC6804B |
Phases | Single-phase | Single-phase | Single-phase | Single-phase |
Maximum Output Power | 500 VA | 1000 VA | 2000 VA | 4000 VA |
AC Output Mode |
|
|
|
|
Voltage Ranges (low/high range) | 155 Vrms/310 Vrms | 155 Vrms/310 Vrms | 155 Vrms/310 Vrms | 155 Vrms/310 Vrms |
Maximum rms Current (low/high range) | 5 A/2.5 A | 10 A/5 A | 20 A/10 A | 40 A/20 A |
Frequency | 40 to 500 Hz | 40 to 500 Hz | 40 to 500 Hz | 40 to 500 Hz |
DC Output Mode |
|
|
|
|
Voltage Ranges (low/high range) | 219 V/438 V | 219 V/438 V | 219 V/438 V | 219 V/438 V |
Maximum Current (low/high range) | 4 A/2 A | 8 A/4 A | 16 A/8 A | 32 A/16 A |
Power Capacity | 400 W | 800 W | 1600 W | 3200 W |
Measurements & I/O |
|
|
|
|
Measurements | Voltage, current, power, AC, DC and AC+DC | Voltage, current, power, AC, DC and AC+DC | Voltage, current, power, AC, DC and AC+DC | Voltage, current, power, AC, DC and AC+DC |
Transients | Basic transient capability via optional analog card
(Option: AC68BALGU)
| Basic transient capability via optional analog card
(Option: AC68BALGU)
| Basic transient capability via optional analog card
(Option: AC68BALGU)
| Basic transient capability via optional analog card
(Option: AC68BALGU)
|
I/O | LAN/LXI Core with remote Web interface
USB
GPIB (Option: AC68GPBU)
| LAN/LXI Core with remote Web interface
USB
GPIB (Option: AC68GPBU)
| LAN/LXI Core with remote Web interface
USB
GPIB (Option: AC68GPBU)
| LAN/LXI Core with remote Web interface
USB
GPIB (Option: AC68GPBU)
|
Specifications |
|
Basic AC Power Source |
|
Options and Accessories |
|
Part Number | Description |
AC68BALGU | User-Installable Analog Interface Board for AC6800B Series Basic AC Power Sources |
AC68BRAC3 | Rack Mount Flange Kit for AC6801B, AC6802B, AC6803B Basic AC Power Sources |
AC68GPBU | Upgrade User-Installable GPIB Interface Board for AC6800B Series AC Sources |
AC68BRAC6 | Rack mount kit for AC6804B (flanges only) |
