The Keysight Technologies, Inc. N5700 Series system DC power supplies give you just the right performance — at just the right price — in a compact (1 U) package. This family of affordable 750 W and 1500 W single-output programmable DC power supplies consists of 24 models for simple DC power applications. They provide stable output power, built-in voltage and current measurement, and output voltage and current from 6 V to 600 V and 1.3 A to 180 A.
The Keysight N5700 Series delivers low noise power in a compact 1U package. Airflow moves front to back, so no additional space is required above or below the power supply in your automated test equipment (ATE) rack. Select output voltages from 6 to 600 V. For low current applications, the 750 W models provide 1.3 to 100 A. For higher current needs the 1500 W models provide twice as much current.

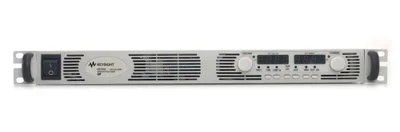

The single output, 1500 W N5767A provides universal AC input, GPIB, LAN, USB, LXI compliance, and analog/resistance control of output voltage and current.
Key Features |
Small high-density 1U package |
Low noise output as low as 8 mVrms |
Extensive device protection: overcurrent, overvoltage, and under-voltage |
Simple front panel operation — separate voltage and current knob |
Modern I/O: USB, LAN (LXI-Core), and GPIB |
Front to back airflow simplifies rack mounting |
Power supply overtemperature protection |
Connect up to 4 units in parallel for higher current |
Universal AC input: 85 to 265 Vac |
Specifications |
|
|
|
N5700 Series ATE System Power Supplies |
|
|
|
1500 W Output |
|
|
|
Model | Voltage | Current | Power |
N5761A | 6 V | 180 A | 1080 W |
N5762A | 8 V | 165 A | 1320 W |
N5763A | 12.5 V | 120 A | 1500 W |
N5764A | 20 V | 76 A | 1520 W |
N5765A | 30 V | 50 A | 1500 W |
N5766A | 40 V | 38 A | 1520 W |
N5767A | 60 V | 25 A | 1500 W |
N5768A | 80 V | 19 A | 1520 W |
N5769A | 100 V | 15 A | 1500 W |
N5770A | 150 V | 10 A | 1500 W |
N5771A | 300 V | 5 A | 1500 W |
N5772A | 600 V | 2.6 A | 1560 W |
Specifications |
|
|
|
N5700 Series ATE System Power Supplies |
|
|
|
750 W Output |
|
|
|
Model | Voltage | Current | Power |
N5741A | 6 V | 100 A | 600 W |
N5742A | 8 V | 90 A | 720 W |
N5743A | 12.5 V | 60 A | 750 W |
N5744A | 20 V | 38 A | 760 W |
N5745A | 30 V | 25 A | 750 W |
N5746A | 40 V | 19 A | 760 W |
N5747A | 60 V | 12.5 A | 750 W |
N5748A | 80 V | 9.5 A | 760 W |
N5749A | 100 V | 7.5 A | 750 W |
N5750A | 150 V | 5 A | 750 W |
N5751A | 300 V | 2.5 A | 750 W |
N5752A | 600 V | 1.3 A | 780 W |
