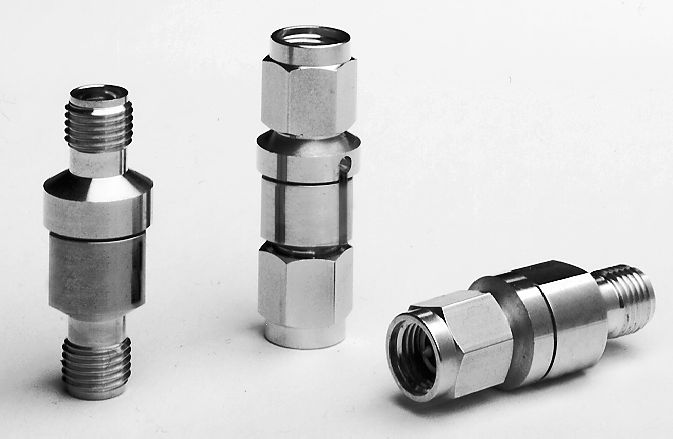

The Keysight 83059K adapter kit includes the 83059A 3.5-mm male adapter, the 83059B 3.5-mm female adapter, and the 83059C 3.5-mm male to 3.5-mm female adapter.
Key Features:
- Precision instrument-grade 3.5-mm coax connectors
- Ideal connector savers
Superior RF Performance:
- Low SWR
- Excellent repeatability
- Low loss
Specifications |
|
|
|
|
Precision
Coaxial Adapters
|
|
|
|
|
Model Number | Connector Type* | Frequency (GHz) | Typical Min Return Loss | Typical Max. Insertion Loss** / *** |
83059A | 3.5 mm (m-m) | DC - 26.5 | – 32 dB | 0.074 dB |
83059B | 3.5 mm (f-f) | DC - 26.5 | – 32 dB | 0.074 dB |
83059C | 3.5 mm (m-f) | DC - 26.5 | – 32 dB | 0.074 dB |
83059K (Kit) | 3.5 mm (m-m) (f-f), (m-f) | DC - 26.5 | – 32 dB | 0.074 dB |
* from the mean. 2. m = plug, f = jack
** Typical measurements were taken from the f-f 83059B; they represent the worst case for the Keysight 83059 family.
***Insertion loss values were derived using a short circuit technique; values displayed are half the measured “round trip” values
