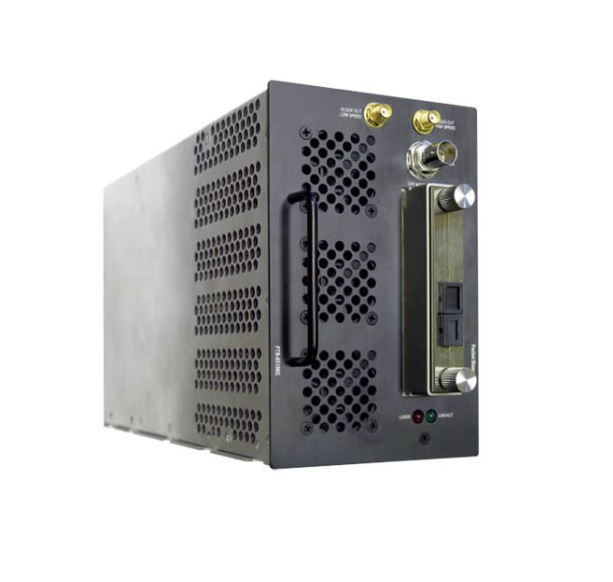

The first rugged and portable 100 Gbit/s Ethernet analyzer on the market, the FTB-85100G Packet Blazer enables teams to efficiently share the equipment in the lab, perform field trials and carry out early deployments, all with a single tester. Purpose-built for applications where thorough testing, portability, true ruggedness and ease of use are required, it offers powerful layer 1/2/3 traffic generation and analysis features to stress and validate network elements and services against demanding corner cases. The FTB-85100G supports multiple transceiver interfaces (CFP, CXP and QSFP) and offers unprecedented full-line-rate testing of the physical coding sublayer (PCS). Users can also generate and analyze 100 Gbit/s and 40 Gbit/s line rate Ethernet and IP packets, as well as perform comprehensive EtherBERT™ tests, all via an intuitive graphical user interface (GUI). With its complete range of test features and automation capabilities, the FTB-85100G can execute multilayer testing to rapidly validate physical-layer characteristics and accurately benchmark Ethernet/IP performance of equipment and services. Its flexible and scalable FPGA-based architecture ensures rapid and seamless incorporation of updates as the standard is ratified and refined moving forward, protecting your testing investment without sacrificing timely support of features and functions.
Key Features:
- Purpose-built for applications where thorough testing, portability,
- true ruggedness and ease of use are required
- Fully integrated functionality for fully assessing layer 1/2/3
- performance of 100 Gbit/s and 40 Gbit/s Ethernet equipment
- and network services
- EtherBERT™ test functionality for verifying the integrity of 100 Gbit/s
- and 40 Gbit/s Ethernet running on WDM networks
- Fast performance/functionality validation of CFP, CXP and QSFP
- transceivers, in the lab or in the fi eld
- 100 Gbit/s switch and router engine stress tests against demanding
- corner cases with full-line-rate Ethernet and IP packet generation
- at over 148 million packets per second
- OTU4-ready hardware for easy testing of advanced technologies
- A single instrument for lab testing, fi eld trials and early deployments,
- maximizing the return on investment and reducing the risk throughout
- the product lifecycle
