EXFO FTB-LITE-975

Simplex, Duplex, Multi-Fiber BiDirectional Certifier

Model

FTB-LITE-975

Product Family

Network & Fiber Installations

Manufacturer

EXFO

Configured models contain the following attributes:

Network & Fiber InstallationsOptical Time Domain Reflectometers

Configurations

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

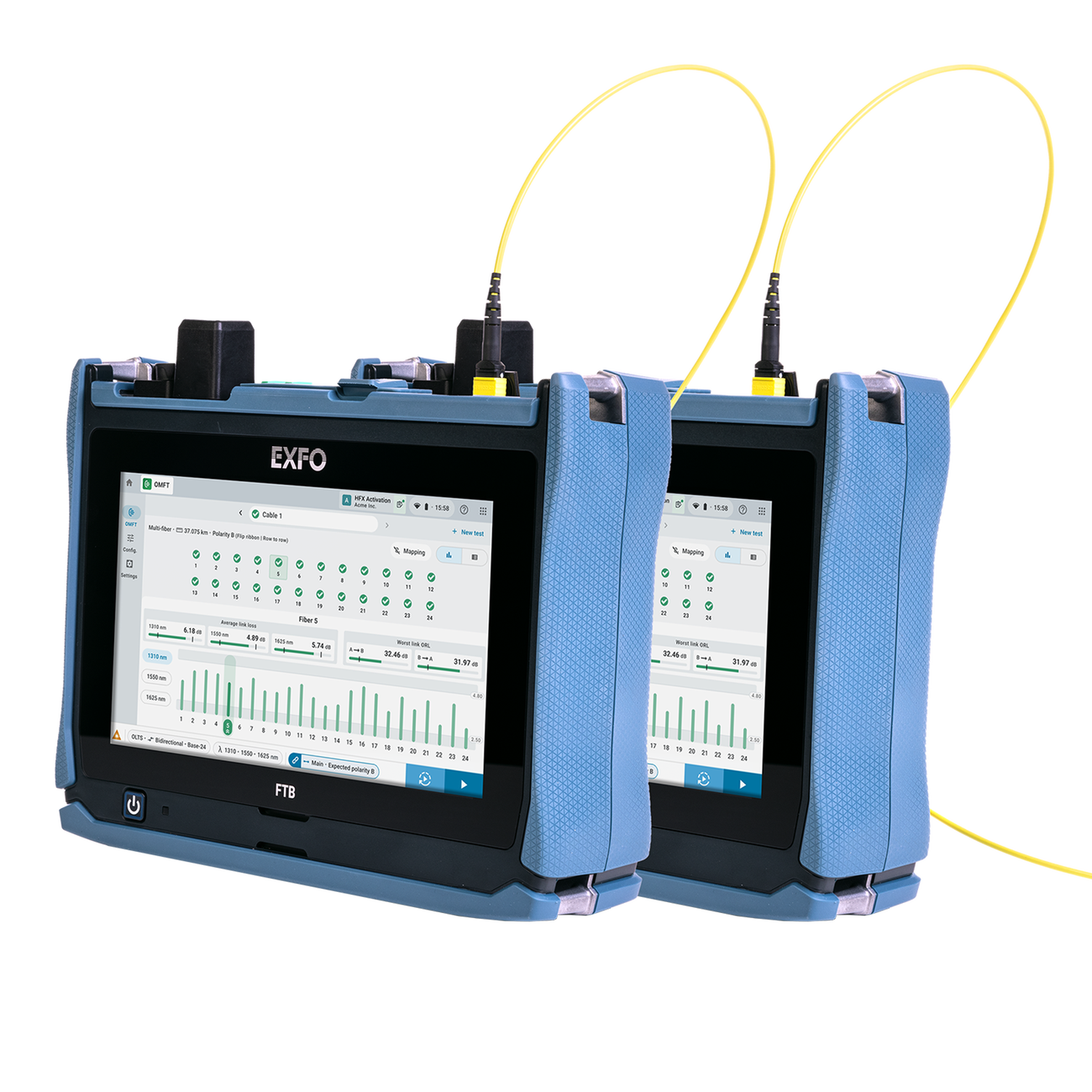

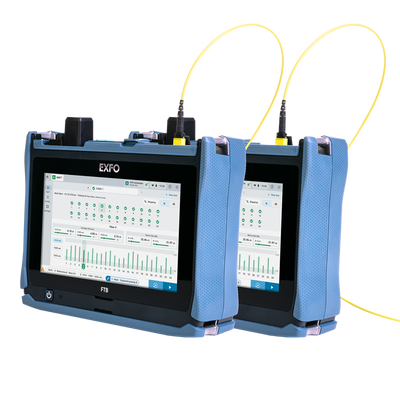

The only fully automated, always-connected solution natively combining bidirectional OLTS and OTDR-ready capabilities on one compact device. Supports simplex, duplex and multi-fiber connectors up to 24 fibers.

The FTB Lite 975 supports evolving data center and AI infrastructure with a flexible design for test cords that streamlines certification across simplex, duplex, and base‑8/12/16/24 multi‑fiber cables with multiple connector types (MPO/MMC/LC).

KEY FEATURES

Native simplex, duplex and multi-fiber testing up to 24 fibers

Bidirectional Tier-1 OLTS-enabled testing: insertion loss (IL), optical return loss (ORL), fiber length measurements, and polarity validation

Fault-finding and OTDR capabilities for fiber characterization with EXFO’s intelligent Optical Link Mapper (iOLM)

End-to-end automation from one-touch referencing, touchless testing through reporting to OTDR-enabled troubleshooting.

SmartRef™: One-touch referencing, validation and troubleshooting with visual diagnostics

APPLICATIONS

Intra data center

Campus data center interconnect (DCI)

Metro/longhaul DCI

Telco and FTTx

SPECIFICATIONS
Model: FTB Lite 975
Feature	Parameter
Automation	Yes
Calibrated Wavelengths	1550 / 1625 / 1310
EXFO Exchange Compatibility	Yes
Fiber Connector Type	Duplex / Simplex / Multi-fiber
Fiber Type	Singlemode
Measurement Type	Optical return loss (ORL) / Insertion loss / Polarity / Length / OTDR (upcoming)
Multiple Wavelength Measuring	Yes
Visual Fault Locator (VFL)	Yes

SPECIFICATIONS
FTB-Lite-975 Overview
Model FTB-Lite-975
Optical Configuration (FTB-Lite-975-XX)
SM1-DF	SM simplex/duplex fiber, 1310/1550 nm
SM3-DF	SM simplex/duplex fiber, 1310/1550/1625 nm
SM1-MF24	SM simplex/duplex/multifiber 24, 1310/1550 nm
Base Hardware (FTB-Lite-975-XX-XX)
OLTS	OLTS capabilities
iOLMC	OTDR-based capabilities (iOLM), including OLTS capabilities
Power Meter and VF (FTB-Lite-975-XX-XX-XX)
00	Without power meter or VFL
VFL	Visual fault locator
VFLHP	High power VFL
VPM2X	VFL and power meter; GeX detector
VPM2XHP	High-power VFL and power meter; GeX detector
Connectivity (FTB-Lite-975-XX-XX-XX-XX)
FRF	With full RF capability (LTE, GNSS, Wi-Fi and Bluetooth)
Multi-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX)
MC-MF24-SM-92F12	SM MPO-12/APC unpinned (female), 25 m
MC-MF24-SM-92M12	SM MPO-12/APC pinned (male), 25 m
MC-MF24-SM-92F16	SM MPO-16/APC unpinned (female), 25 m
MC-MF24-SM-92M16	SM MPO-16/APC pinned (male), 25 m
MC-MF24-SM-92F24	SM MPO-24/APC unpinned (female), 25 m
MC-MF24-SM-92M24	SM MPO-24/APC pinned (male), 25 m
MC-MF24-SM-116F16	SM MMC-16/APC unpinned (female), 25 m
MC-MF24-SM-116M16	SM MMC-16/APC pinned (male), 25 m
MC-MF24-SM-116F24	SM MMC-24/APC unpinned (female), 25 m
MC-MF24-SM-116M24	SM MMC-24/APC pinned (male), 25 m
Duplex-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX-XX)
DC-SM-SCA-SCA-25	SM duplex SC/APC, 25 m
DC-SM-SCA-SCU-25	SM duplex SC/UPC, 25 m
DC-SM-SCA-LCA-25	SM duplex LC/APC, 25 m
DC-SM-SCA-LCU-25	SM duplex LC/UPC, 25 m
DC-SM-SCA-MDCA-25	SM duplex MDC/APC, 25 m
DC-SM-SCA-MDCU-25	SM duplex MDC/UPC, 25 m
Single-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX-XX-XX)
SC-SM-SCA-SCA-25	SM SC/APC, 25 m
SC-SM-SCA-SCU-25	SM SC/UPC, 25 m
SC-SM-SCA-LCA-25	SM LC/APC, 25 m
SC-SM-SCA-LCU-25	SM LC/UPC, 25 m
SC-SM-SCA-FCA-25	SM FC/APC, 25 m
SC-SM-SCA-FCU-25	SM FC/UPC, 25 m
