Product Overview

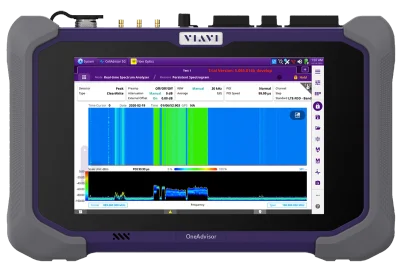

Radio Analysis Module (SPAxxMA) / Module for OneAdvisor 800 Wireless.
A family of radio analysis modules for spectrum and interference analysis, RF signal quality and coverage, PIM detection, Ethernet verification, and Open RAN radio verification.
The VIAVI OneAdvisor-800 is designed to meet the evolving needs of service providers, field technicians and contractors as they scale 5G infrastructure. OneAdvisor-800 allows cell site technicians to test fiber, RF, and CPRI/Ethernet from a single instrument, replacing multiple independent tools (OTDR, CAA, Fiber Scope) and significantly reducing the total cost of ownership.
The instrument’s workflow user interface carefully guides technicians through a pre-configured common test process, making sure that technicians complete the job in the same way and to the same specifications. With OneAdvisor-800, tower hands get built-in guidance, automatic test configuration, pass/fail results, and a single closeout report every time, at every site.
The VIAVI OneAdvisor-800 is the first test tool designed to address the challenges of a modern cell-site technician. By rolling all the key cell-site test capability into one portable tester and combining it with easy-to-use test process and reporting automation, VIAVI has equipped mobile service providers, tower companies, and contractors to meet the work-speed and test coverage requirements for 5G buildouts and LTE maintenance.
| PIM DETECTION OVER CPRI | |
| The VIAVI RFoCPRI technology on OneAdvisor 800 verifies the CPRI control signals and extracts the RF (IQ) data transmitted between the BBU and RRH, permitting the monitoring of the uplink (mobile devices) spectrum, performing interference analysis of external or internal sources including PIM. | OneAdvisor 800 performs simultaneous RF Source and RFoCPRI Analysis to accurately identify in real-time the uplink frequency of CPRI multi-carrier containers. RFoCPRI PIM detection compares in real-time, RF uplink signals of a MIMO system, providing additional characterization of the PIM source. Inspect in front and behind the impacted antenna for potential external PIM sources and perform a shake, tap, tighten, or cover potential PIM sources and see the instantaneous effect on the PIM signature. |
| KEY FEATURES |
| Frequency coverage from 9 kHz to 6 GHz. |
| Real-time persistent spectrum analysis with up to 100 MHz of instantaneous bandwidth. |
| 4G-LTE and 5G-NR compliance, including blind-scanner, signal coverage, and synchronization assessment. |
| Ethernet verification for 1G, 10G, 25G, and 100G. |
| Open RAN capable, validating Open Radio Units (O-RU) with O-DU emulation. |
| Fiber characterization supporting OTDR (CWDM, DWDM) and multi-channel verification. |
| BENEFITS |
| Versatile all-in-one portable field test solution. |
| Capable of adapting to any measurement task as a multi-functional test solution for RF characterization, cellular technologies (4G & 5G), fiber links, and Ethernet networks. |
| Supports test process automation with automated testing, remote control, and cloud services, including asset and data management. |
| APPLICATIONS |
| RF spectrum assessment and interference analysis. |
| Automated interference detection with TDD Auto Gated Spectrum (TAGS) technology and Interference Advisor. |
| PIM detection of any CPRI-based radio with RFoCPRI technology. |
| Radio installation testing for any cell site, including coax and fiber cable testing. |
| Open RAN capable, emulating Open Distribution Units (O-DU) and validating radio operation during installation. |
| Fronthaul transport and synchronization (IEEE 1588) verification. |
| SPECIFICATIONS | |
| Model: SPAxxMA /-O Overview | |
| Model | Description |
| SPA06MA | Spectrum Analyzer Module 9KHz to 6GHz, supporting RF tests of spectrum and interference analysis, EMF conformance verification, and RF signal quality and coverage. |
| SPA06MA-O | Spectrum Analyzer Module 9KHz to 6GHz with Optical Hardware, supporting RF tests of spectrum and interference analysis, EMF conformance verification, and RF signal quality and coverage; as well as Ethernet testing, PIM detection and Open RAN radio verification. |
| SPECIFICATIONS | |
| OneAdvisor-800 Model Overview | |
| Model | Description |
| ONA-800A* | OneAdvisor package |
| PACKAGE/BUNDLES | |
| ONA800A-CAA-OTDR-DBA | OneAdvisor Demo Bundle with Accessories - CAA-BiasT OTDR-SM |
| ONA800A-CAA-ATT-CFL | OneAdvisor Bundle 1 - CAA - Accessories - FOR ATT ONLY |
| ONA800A-CAA | OneAdvisor Bundle 2 - CAA |
| ONA800A-CAA-A | OneAdvisor Bundle 3 - CAA - Accessories |
| ONA800A-OSM | OneAdvisor Bundle 4 - OTDR SM |
| ONA800A-OSM-A | OneAdvisor Bundle 5 - OTDR SM - FiberChek - Accessories |
| ONA800A-C-OSM | OneAdvisor Bundle 6 - CAA - OTDR SM |
| ONA800A-C-OSM-A | OneAdvisor Bundle 7 - CAA - OTDR SM - FiberChek - Accessories |
| ONA800A-C-OSM-A-V | OneAdvisor Bundle 8 - CAA - OTDR SM - FiberChek - Accessories - RFVision |
| ONA800A-CAA-OQ | OneAdvisor Bundle 9 - CAA - OTDR Quad |
| ONA800A-C-OQ-A | OneAdvisor Bundle 10 - CAA - OTDR Quad - FiberChek - Accessories |
| ONA800A-C-OQ-A-V | OneAdvisor Bundle 11 - CAA - OTDR Quad - FiberChek - Accessories - RFVision |
| ONA800A-SPCP | OneAdvisor Bundle 12 - SpecAn GSS RM IntAn RtSA RFoCPRI |
| ONA800A-SPCPCA | OneAdvisor Bundle 13 - SpecAn GSS RM IntAn RtSA RFoCPRI - CAA |
| ONA800A-SPCPCAOS | OneAdvisor Bundle 14 - SpecAn GSS RM IntAn RtSA RFoCPRI - CAA - OTDR SM |
| ONA800A-SPO-A | OneAdvisor Bundle 15 - SpecAn GSS RM IntAn RtSA with RF Antennas |
Note:
* Including OneAdvisor Mainframe, Display, AC/DC Adapter, Li-Ion Battery, and Soft Carrying case. Recommended for CAA06MB module only
