Product Overview

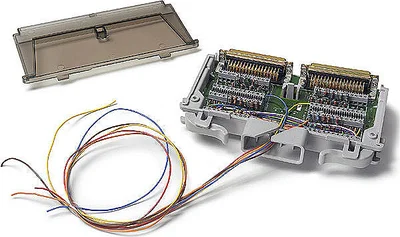

The Keysight 34925T is a terminal block for the 34925A 40/80-channel FET multiplexer, used for discrete wiring. It supports up to 20 AWG wire size for up to 100 connections or 24 AWG for 100 connections or more. Two terminal block options facilitate wiring connections to the 34925A module:

34925T-001 (Option 001) Terminal Block for 2-wire configurations
34925T-002 (Option 002) Terminal Block for 1-wire configurations

The 34925T is a detachable terminal block that provides a flexible method for connecting external wiring.

Specifications
34980A Data Acquisition System
Model	Description
Mainframe – Holds up to 8 Plug-in Modules
34980A	Multifunction data acquisition mainframe. (Comes standard with “DMM” option and BenchVue DAQ)
BV0006B	BenchVue Data Acquisition Control and Analysis (DAQ) BenchVue makes it simple to connect, control instruments, and automate test sequences. Supported plug-in modules: 34921A 34922A 34923A 34924A 34925A 34931A 34932A 34933A 34937A 34938A 34952A

Specifications
34980A Data Acquisition System
Module Overview
Module	Description	Max. Volts	Switch/Carry Current	BW (MHz)	Scan ch/sec	Thermal Offset	Comments
Multiplexer Modules
34921A	40-channel armature multiplexer w/low thermal offset	± 300V	1A/2A	45 MHz	100	< 3 μV	Temperature reference 4 current channels. Config as 2- or 4-wire
34922A	70-channel armature multiplexer	± 300V	1A/2A	25 MHz	100	< 3 μV	Config as 2- or 4-wire
34923A	40/80-channel reed multiplexer	± 150V	0.5A/1.5A	45 MHz	500	< 50 μV	Config as 1-, 2- or 4- wire
34924A	70-channel reed multiplexer	± 150V	0.5A/1.5A	25 MHz	500	< 50 μV	Config as 2- or 4-wire
34925A	40/80-channel optically isolated FET multiplexer	± 80V	0.02A	1 MHz	1000	< 3 μV	Config as 1-, 2- or 4- wire
Matrix Modules
34931A	Dual 4x8 armature matrix	± 300V	1A/2A	30 MHz	100	< 3 μV	Backplane expandable
34932A	Dual 4x16 armature matrix	± 300V	1A/2A	30 MHz	100	< 3 μV	Backplane expandable
34933A	Dual/Quad 4x8 reed matrix	± 150V	0.5A/1.5A	30 MHz	500	< 50 μV	Backplane expandable Config as 1- or 2-wire
34934A	Quad 4x32 reed matrix	± 100V	0.5A/0.5A	20MHz	500	< 50 μV	Row expansion kit. Config as 1- or 2-wire
General Purpose Modules
34937A	28-channel Form C and 4-channel Form A	±300V ±250VAC	1A/2A/5A	10 MHz	N/A	< 3 μV < 3 μV	--
34938A	20-channel 5-amp Form A	± 250VAC	5A/8A	1 MHz	N/A	< 3 μV	--
34939A	64-channels Form A	± 100V	1A/2A	10 MHz	N/A	< 3 μV	--

Specifications
Data Acquisition System Modules Overview
Module Overview
Module	Description	Connectors
Multiplexer Modules
34921A	40-channel armature multiplexer w/low thermal offset (order 34921T for temp reference)	2 – 50-pin Dsub, Male
34923A	40/80-channel reed multiplexer	2 – 50-pin Dsub, Male
34925A	40/80-channel optically isolated FET multiplexer	2 – 50-pin Dsub, Male
34922A	70-channel armature multiplexer	2 – 78-pin Dsub, Male
34924A	70-channel reed multiplexer	2 – 78-pin Dsub, Male
Matrix Modules
34931A	Dual 4x8 armature matrix	2 – 50-pin Dsub, Male
34932A	Dual 4x16 armature matrix	2 – 50-pin Dsub, Male
34933A	Dual/quad 4x8 reed matrix	2 – 50-pin Dsub, Male
34934A	Quad 4x32 reed matrix	2 – 78-pin Dsub, Male
General Purpose/Actuator Models
34937A	32-channel Form C/Form A general purpose switch	2 – 50-pin Dsub, Male
34938A	20-channel 5-amp Form A switch	2 – 50-pin Dsub, Male
34939A	64-channel Form A Switch	2 – 78-pin Dsub, Male
RF and Microwave Modules
34941A	Quad 1x4 50-ohm 3-GHz RF multiplexer	20 - SMA
34942A	Quad 1x4 75-ohm 1.5 GHz RF multiplexer	20 – mini SMB
34945A	Microwave switch/attenuator driver	N/A
34946A	Dual 1x2 SPDT terminated microwave switch Option 001: No switches installed Option 004: 4 GHZ switches installed Option 020: 20 GHz switches installed Option 026: 26.5 GHz switches installed	6 SMA
34947A	Triple 1x2 SPDT Unterminated Microwave Switch Module	9 SMA
System Measurement and Control Modules
34950A	64-bit digital I/O with memory and counter	2 – 78-pin Dsub, Female
34951A	4-channel isolated D/A converter with waveform memory (DMM option required for calibration)	1 – 50-pin Dsub, Female
34952A	Multifunction module with 32-bit DIO, 2-ch D/A and totalizer	1 – 50-pin Dsub, Female
34959A	Breadboard module	26- & 40-pin internal ribbon cable connectors

Specifications
34980A Data Acquisition System Module Overview
Model	Description
Terminal Blocks used for Discrete Wiring. Supports 20 AWG Wire for 100 Connections
3492xT	Multiplexer terminal blocks
3493xT	Matrix and GP terminal blocks
3495xT	Measurement and control terminal blocks
