快速報價: Wavecontrol SMP3 (WSL0001)
Wavecontrol SMP3 (WSL0001)
SMP3 Broadband - Electromagnetic Field Meter SMP3 Broadband: Broadband Measurements
型號
SMP3 (WSL0001)產品類別
Cable製造商
Wavecontrol配置型號包含以下特性:
CableAntenna & PIM AnalyzersElectromagnetic measurement tools配置
產品總覽
資源
讓我們為您提供準確的配置
產品總覽

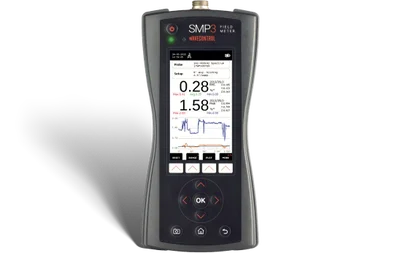

SMP3 - Electromagnetic Field Meter.
Portable solution to measure people’s EMF exposure in accordance with ICNIRP, IEC, EN, IEEE, European Directive 2013/35/EU, FCC, Safety Code 6 (2015) and other standards.
A unique combination of spectrum analysis, broadband and static field measurements in a single device.
SMP3 meter in combination with our field probes is also used for product certification, verify that products emission are below standards limits.
SMP3 meter is a fully compliant and flexible solution capable of measuring from DC up to 90 GHz for Electric and magnetic fields. It is a multi-standard device designed to offer maximum flexibility with a simplified use.
Combined with the latest WP10M probe (1 Hz – 10 MHz) is a unique solution in the market for fully compliant low frequency measurements up to 10 MHz using the weighted peak method (WPM) required in the standards.
| KEY FEATURES |
| Real-time FFT-based spectrum analysis using digital processing; |
| Weighted Peak Method (WPM) for automatic and real time comparison with limits; |
| Special auto-gain function for peak detection (indispensable for procedures such as welding); |
| Display of results in RMS and peak values; |
| Function for time domain measurement of a specific frequency; |
| Automatic field probe recognition; |
| E&H field selection; |
| Total field value and value for each component (X, Y, Z); |
| Frequency SPAN selection; |
| High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz; |
| Max-hold function; |
| Display of maximum, minimum and average values; |
| Spatial average function; |
| Adjustable measurement time from 1s to 100 hours; |
| Programmable measurement to start at a given time; |
| Graphic display of broadband measurement changes over time; |
| Adjustable graph display from 1 s to 12 minutes; |
| Programmable alarm function; |
| Digital output for real time external measurements; |
| USB-C and fibre optics connection; |
| Large storage capacity; |
| Screen-shot function for reporting; |
| PC software for control and reporting; |
| Results can be uploaded automatically to a web-page control centre; |
| Available in several languages. |
| BENEFITS | |
| Weighted Peak Method (WPM) | Real-time comparison in % with the selected limits up to 10 MHz |
| One Single Meter for all Probes | Isotropic and high accuracy probes; Electric and Magnetic field; Probe auto-detect capability; |
| Assessments According to Internnational Standards | EU Directive 2013/35, ICNIRP, IEC, EN, IEEE, SC6, etc; All limits embedded in a single meter |
| USB and Fiber Optic Commmunication PC Software Included | Data download, automatic reporting, and remote control |
| Firmware Upgrade | Easy and fast install to upgrade capabilities |
| Automotive Measurements | H field measurements Time and frequency domain Real time results |
| SPECIFICATIONS | |
| SMP3 Model Overview | |
| Model / Part Number | Description |
| SMP3 / WSL0001 | BROADBAND For broadband measurements using the following probes: WPF3 WPF6 WPF8 WPF18 WPF40 WPF60 WPF60S WPF90 WP50 WPH60 WPH1000 |
| SMP3 / WSL0003 | SELECTIVE For frequency selective measurements from 0 to 10 MHz using: WP400 WP400c WP400-3 WP10M WPH-DC |
| SMP3 / WSL0002 | DUAL For both kinds of measurements using all field probes. |
資源
文檔資料
Wavecontrol SMP3 Eelectromagnetic Field Meter Data Sheet.pdf
