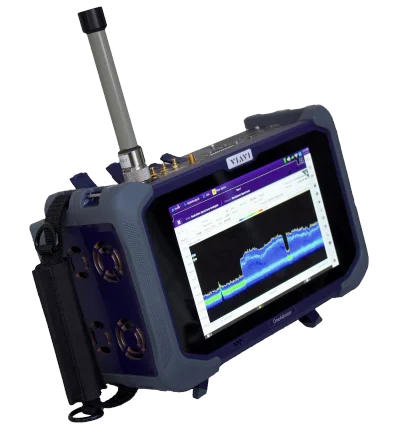

Radio Analysis Module (RAxxMA) / Module for OneAdvisor 800 Wireless.
A family of radio analysis modules for spectrum and interference analysis, RF signal quality and coverage, PIM detection, Ethernet verification, and Open RAN radio verification.
| KEY FEATURES |
| Frequency coverage from 9 kHz to 9, 18, 32, or 44 GHz. |
| Real-time persistent spectrum analysis with up to 110 MHz of instantaneous bandwidth. |
| 4G-LTE and 5G-NR compliance, including blind-scanner, coverage, and synchronization assessment. |
| Ethernet verification for 1G, 10G, 25G, and 100G. |
| Open RAN capable, validating Open Radio Units (O-RU) with O-DU emulation. |
| Fiber characterization supporting OTDR (CWDM, DWDM) and multi-channel verification. |
| BENEFITS |
| Versatile all-in-one portable field test solution. |
| Capable of adapting to any measurement task as a multi-functional test solution for RF characterization, cellular technologies (4G & 5G), fiber links, and Ethernet networks. |
| Supports test process automation with automated testing, remote control, and cloud services, including asset and data management. |
| APPLICATIONS |
| RF spectrum assessment and interference analysis. |
| Automated interference detection with TDD Auto Gated Spectrum (TAGS) technology and Interference Advisor. |
| PIM detection of any CPRI-based radio with RFoCPRI technology. |
| Radio installation testing for any cell site, including coax and fiber cable testing. |
| Open RAN capable, emulating Open Distribution Units (O-DU) and validating radio operation during installation. |
| Fronthaul transport and synchronization (IEEE 1588) verification. |
| SPECIFICATIONS |
|
| Radio Analysis Modules (RAxxMA-O) Overview |
|
| Model | Description |
| RA09MA-O | Spectrum Analyzer Module 9KHz to 9GHz with Optical Hardware |
| RA18MA-O | Spectrum Analyzer Module 9KHz to 18GHz with Optical Hardware |
| RA32MA-O | Spectrum Analyzer Module 9KHz to 32GHz with Optical Hardware |
| RA44MA-O | Spectrum Analyzer Module 9KHz to 44GHz with Optical Hardware |
