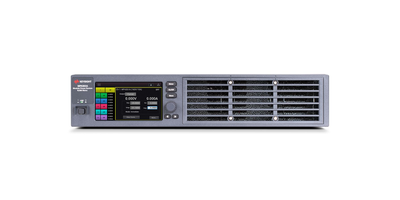

Keysight Technologies MP4303A

Modular Power System 10kW Mainframe: 200/208 VAC

型號

MP4303A

產品類別

Electrical & Power Quality

製造商

Keysight Technologies

配置型號包含以下特性:

Electrical & Power QualityPower Analysis / Recorders / Loggers

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

The Keysight MP4303A solar array simulator (SAS) is a modular power system with a 10-kW mainframe and 200 / 208 volts alternating current (VAC) that accommodates up to six slots for SAS modules in a compact 2U footprint.

The Keysight MP4300 Series Solar Array Simulators (SAS) is a family of 1 kW and 1.4 kW modular power systems in a 2U footprint. The 10 kW mainframes can accommodate up to six slots for SAS modules, achieving excellent power and channel density.

Furthermore, the MP4300 Series SAS can simulate solar panels in a spacecraft while offering the highest density, efficiency, and reliability — minimizing rack space and providing the best total cost of ownership. The platform features LAN / LXI, USB, and optional GPIB interfaces.

The MP4300 Series offers autoranging output for greater flexibility (with Keysight MP4361A, MP4351A, and MP4352A modules only).

KEY FEATURES

Support up to 160 V, up to ± 20 A, and 1.4 kW per module.

Enable solar array simulation.

Operate in two-quadrant modes, such as solar array simulator and regenerative electronic load.

Provide fast IV curve change and fast recovery time.

Achieve rapid deployment and debugging of new test systems with the help of an intuitive five-inch touchscreen interface.

SPECIFICATIONS
Model: MP4303A
Feature	Parameter
Type	Mainframe / 2U
Maximum Current per Output	20 A
Maximum Power	10000 W
Maximum Voltage per Output	160 V
Number of Outputs	6
Input Voltage	200 V
Auxiliary Voltage Measurement Input	No
Regenerative Power	No
Arbitrary Waveform Generation	No
Adjustable Slew Rate	N/A
Measurement Accuracy	N/A
Noise and Ripple	N/A
Output Response Time	N/A
Programming Accuracy	N/A
Applications	Photovoltaic testing

SPECIFICATIONS
MP4300A Series Overview
Model / Mainframe	Description	Number of Modules
MP4301A	Modular Power System 6kW Mainframe - 200/208Vac	Holds up to 6 modules
MP4302A	Modular Power System 6kW Mainframe – 380/400/480Vac	Holds up to 6 modules
MP4303A	Modular Power System 10kW Mainframe - 200/208Vac	Holds up to 6 modules
MP4304A	Modular Power System 10kW Mainframe – 380/400/480Vac	Holds up to 6 modules
Line Cord and Terminations (Plugs) NOTE: If the AC input voltage where the SAS system will be used is: 180 to 229, 3-phase, please choose a 200/208 VAC model (MP4301A) 342 to 528, 3-phase, please choose a 380/400/480 VAC model (MP4302A) 180 to 229, 3-phase, please choose a 200/208 VAC model (MP4303A) 342 to 528, 3-phase, please choose a 380/400/480 VAC model (MP4304A) Due to the number of different line cords and terminations worldwide, the MP43xx does not come with line cords or terminations. Users will need to supply their own depending on the local laws and codes of the country/region where the power supply will be used.
Modules
MP4361A	Solar Array Simulator Auto Ranging 0-160V, 0-10A, 1kW	Mainframe holds up to 6 modules
MP4362A	Solar Array Simulator Module 0-130V, 0-8A, 1kW	Mainframe holds up to 6 modules
MP4351A	Solar Array Simulator Auto Ranging 0-160V, 0-10A, 1.4kW	Mainframe holds up to 6 modules
MP4352A	Solar Array Simulator Auto Ranging 0-80V, 0-20A, 1.4kW	Mainframe holds up to 6 modules
Options
Option UK6	Commercial calibration with test results data
Option GPB	GPIB option for MP4301A, MP4302A, MP4303A and MP4304A
Option FL5	Filler Panel for MP4300 Series Mainframes - 5 panels. For proper operation, you must fill any empty slots with filler panels. When configuring mainframes with less than 6 modules, you must order option FL5 or MP4309A kit.
