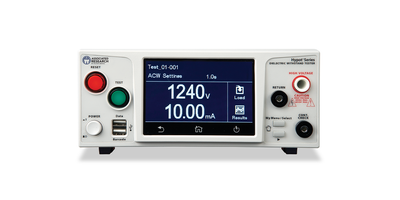

Associated Research 3870

Hipot & Insulation Resistance Tester: 5KV AC, 6KV DC

型號

3870

產品類別

Electrical Power Test

製造商

Associated Research

配置型號包含以下特性:

Electrical Power TestHipot Testing

配置

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

The 3870 raises the bar for safety and efficiency in production line Hipot Testers. If your application requires AC or DC Withstand test, Ground Continuity, and Insulation resistance testing capabilities the 3870 is the electrical safety tester for you.

The Hypot Series Dielectric Withstand Tester provides a simple solution for you. This line of Electrical Safety testers is equipped with innovations that allow you to achieve industry leading test solutions, without the need for an expensive automated test system or connection to a PC. Improve efficiency and traceability with on-board data storage and data transfer capabilities. Automate your production line with direct barcode connection, which allows you to quickly associate products with pre-programed test files. Keep operators safe with SmartGFI®, Safety Interlock, and Personal Protective Equipment (PPE) compatible accessories.

SPECIFICATIONS
Model: 38xx
Feature	Parameter
AC Hipot	Voltage Output = 0-5000VAC Leakage Current Limits = 0.00-20.0mA Output Frequency = 50/60HzΩ
DC Hipot	Voltage Output = 0-6000VDC Leakage Current Limits = 1µA-7.500mA DC Ripple ≤ 5% Ripple RMS at 6KVDC @ 7.5mA, Resistive Load
Ground Continuity	Current = DC 0.1A ± 0.01A, fixed Resistance Limits = 0.0Ω-1.50Ω
Insulation Resistance	Voltage Output = 30-1000VDC Resistance Range = 1MΩ-50GΩ

SPECIFICATIONS
38xx Series Overview
Models	Test Capabilities	Test Specifications
3805	AC Hipot Ground Continuity	AC Hipot Voltage Output = 0-5000VAC Leakage Current Limits = 0.00-20.0mA Output Frequency = 50/60Hz Ground Continuity Current = DC 0.1A ± 0.01A, fixed Resistance Limits = 0.0Ω-1.50Ω
3855	AC Hipot Ground Continuity Insulation Resistance	AC Hipot Voltage Output = 0-5000VAC Leakage Current Limits = 0.00-20.0mA Output Frequency = 50/60Hz Ground Continuity Current = DC 0.1A ± 0.01A, fixed Resistance Limits = 0.0Ω-1.50Ω Insulation Resistance Voltage Output = 30-1000VDC Resistance Range = 1MΩ-50GΩ
3865	AC Hipot DC Hipot Ground Continuity	AC Hipot Voltage Output = 0-5000VAC Leakage Current Limits = 0.00-20.0mA Output Frequency = 50/60Hz DC Hipot Voltage Output = 0-6000VDC Leakage Current Limits = 1µA-7.500mA DC Ripple ≤ 5% Ripple RMS at 6KVDC @ 7.5mA, Resistive Load Ground Continuity Current = DC 0.1A ± 0.01A, fixed Resistance Limits = 0.0Ω-1.50Ω
3870	AC Hipot DC Hipot Ground Continuity Insulation Resistance	AC Hipot Voltage Output = 0-5000VAC Leakage Current Limits = 0.00-20.0mA Output Frequency = 50/60Hz DC Hipot Voltage Output = 0-6000VDC Leakage Current Limits = 1µA-7.500mA DC Ripple ≤ 5% Ripple RMS at 6KVDC @ 7.5mA, Resistive Load Ground Continuity Current = DC 0.1A ± 0.01A, fixed Resistance Limits = 0.0Ω-1.50Ω Insulation Resistance Voltage Output = 30-1000VDC Resistance Range = 1MΩ-50GΩ
