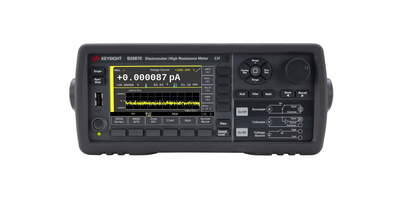

Keysight Technologies B2987C
Electrometer/High Resistance Meter: 0.01fA, 1000V, Battery
型號
B2987C產品類別
LCR / Impedance Analyzers製造商
Keysight Technologies配置型號包含以下特性:
LCR / Impedance AnalyzersSemiconductor Test Equipment配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
請參考資源中的資料文檔或查看產品總覽。
如果您想瞭解更多，請 聯繫，我們的團隊將為您提供幫助。
產品總覽
The B2987C Electrometer / High Resistance Meter offers 0.01 fA (0.01 × 10⁻¹⁵ A) resolution for ultra-low current measurements and measures resistances up to 10 PΩ (10 × 10¹⁵ Ω). Its 4.3” color LCD provides intuitive data visualization with trend charts, histograms, and numeric data, while battery operation ensures cleaner measurements by eliminating AC noise.
The B2987C is the only graphical electrometer that combines high-sensitivity current measurement with large resistance measurement up to 10 PΩ. Its 4.3” color LCD enables real-time trend analysis and histogram data, enabling quick statistical analysis without a PC. Battery operation eliminates AC noise, ensuring more reliable measurements. The Setup Integrity Checker software helps diagnose noise sources by comparing different cabling and fixturing setups.
| KEY FEATURES |
| Achieve 0.01 fA (0.01 × 10⁻¹⁵ A) resolution for ultra-sensitive measurements. |
| Measure resistances up to 10 PΩ with a 1000 V source. |
| Capture up to 20,000 readings/s for high-speed data acquisition. |
| Eliminate AC noise with battery operation for cleaner measurements. |
| Diagnose noise issues with the Setup Integrity Checker software. |
| Enhance usability with auto navigation. |
| SPECIFICATIONS | |
| Model: B2987C | |
| Feature | Parameter |
| Maximum Measurable Resistance | 10 PΩ |
| DC Voltage | 1000 V |
| Charge Measurement | Available |
| Minimum Current Measurement Resolution | 0.01 fA |
| Battery Options | Available |
| SPECIFICATIONS | |
| B2980C Series Overview | |
| Model | Description |
| B2981C | Femto/Picoammeter. 0.01 fA |
| B2983C | Femto/Picoammeter. 0.01 fA, battery |
| B2985C | Electrometer/High Resistance Meter, 0.01 fA, 1000 V |
| B2987C | Electrometer/High Resistance Meter, 0.01 fA, 1000 V, battery |
| OPTIONS | |
| 1A7 | Calibration + Uncertainties + Guardbanding (not accredited) |
| A6J | ANSI Z540-1-1994 calibration |
| UK6 | Commercial calibration certificate with test data |
| SPECIFICATIONS | |
| B2980C Series Accessories Overview | |
| Model | Description |
| N1411A/B | Interlock cable, 4 pin terminal plug to 6 pin circular plug, (1.5 m/3 m) |
| N1413A | High resistance meter fixture adapter |
| N1414A | High resistance measurement universal adapter |
| N1415A | Triax to alligator cable, 200 V, 1.5 m |
| N1416A/B | Triax bulkhead connector (200 V/500 V) |
| N1417A | Open cap for triaxial connector |
| N1418A | Lithium-ion battery pack for B2983/B2987 |
| N1423A | Thermocouple for B2985/B2987 |
| N1424A | Resistivity Cell for N1413 with B2980 Series (50 mm Electrodes) |
| N1424B | Resistivity Cell for N1413 with B2980 Series (26/50 mm Diameter Electrodes) |
| N1424C | Resistivity Cell for N1413 with B2980 Series (26/50/76 mm Diameter Electrodes) |
| N1425A/B | Low Noise Test Leads for N1413 with B2980 series (1.5 m/3 m) |
| N1426A | Pin Probes for N1425 |
| N1426B | Soldering Sockets for N1425 |
| N1426C | Alligator Clips for N1425 |
| N1427A/B | Alligator Clips for N1425 N1427A/B Low Noise Test Cables for N1413 with B2980 series (1.5 m/3 m) |
| N1428A | Component Test Fixture for N1413 with B2980 Series |
| N1412/A/B/C | Low leakage triax cable (500 V, 1.5 m/3 m/6 m) |
| N1254A-102 | Triax (female) to BNC (male) adaptor: For current measurement, floating DUT/sample |
| N1254A-104 | Triax (female) to BNC (male) adaptor: For current measurement, grounded DUT/sample |
| N1254A-105 | Triax (female) to BNC (male) adaptor: For voltage measurement |
| 1CM124A | Rack Mount Kit |
