Keysight Technologies CX1206A

Sensor Head; High Current Adapter with Expander, 10 A

型號

CX1206A

產品類別

LCR / Impedance Analyzers

製造商

Keysight Technologies

配置型號包含以下特性:

LCR / Impedance AnalyzersSemiconductor Test Equipment

配置

技术指标

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

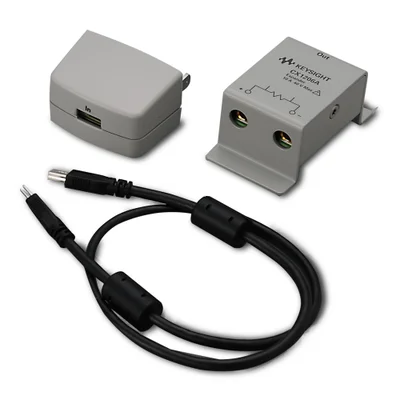

The CX1206A Sensor Head is an accessory for the CX1101A current sensor and expands the maximum measurement current up to 10 A. It also provides two banana jack terminals for ammeter + and - terminals of a CX3300 analog channel through a current sensor (CX1101A).

Key Features

ESL reduced shunt resistor technology

High current measurement up to 10 A

Minimum measurable current is less than 3 mA

Current sensing is done by the expander with banana plugs

Specifications
CX1200A Series Overview Sensor Heads for CX1101A and CX1102A
Ordering Information
Model	Description
CX1201A Sensor Head; Coaxial through	CX1201A has two SMA connectors for connecting ammeter + and − terminals to a source instrument and DUT. Maximum current: 1 A. Input: SMA jack connectors
CX1202A Sensor Head; Coaxial through with V Monitor	CX1202A has two SMA connectors for connecting ammeter + and − terminals to a source instrument and DUT. Also has an SMA connector for monitoring voltage. Maximum current: 1 A. Input: SMA jack connectors
CX1203A Sensor Head; Coaxial Termination	CX1203A has an SMA connector for connecting ammeter + and − terminals to DUT. Also has a built-in series resistor, 50 Ω. Maximum current: 1 A with 0 Ω, 70 mA with 50 Ω series resistor. Input: SMA jack connector (center: +, outer: −).
CX1204A Sensor Head; Twisted Pair Adapter	CX1204A is a sensor head with extension cables (shielded, twisted pair, 100 mm, or 300 mm) for soldering the DUT. Maximum current: 1 A.
CX1205A Sensor Head; Test Lead Adapter	CX1205A has two minijack terminals for connecting ammeter + and − terminals to DUT. Maximum current: 1 A. Input: Minijack terminals.
CX1206A Sensor Head; Test Kead Adapter (for CX1101A only)	CX1206A expands the maximum measurement current of CX1101A up to 10 A. It has two banana jack terminals for connecting ammeter + and − terminals to DUT. Maximum current: 10 A. Input: Banana jack terminals.
