Improve airflow by inserting plastic slot blockers into empty PXI slots.

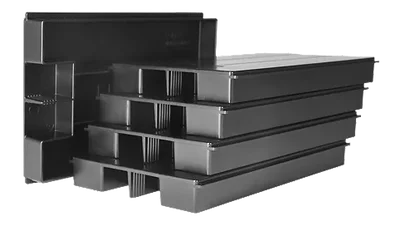

Y1212A is a kit of 5 plastic slot-blockers improves airflow by inserting plastic slot blockers into empty PXI slots. Made with static dissipative PC/ABS molding.
The Y1212A is a kit of five plastic slot-blockers to be used any PXI chassis. These can be placed in empty slots to help improve airflow through PXI modules. Require the use of a blank PXI filler panels.
| KEY FEATURES |
| Set of five, single-slot slot-blockers |
| Made with static dissipative PC/ABS molding compound which prevents the slot blockers from holding a charge |
| SPECIFICATIONS |
|
| M9018B and M9019A 18-slot PXIe Chassis |
|
| Model Overview |
|
| Model | Description |
| M9018B | PXIe Chassis: 18-slot, Gen 2, 3U, 8 GB/s
Included: Standard (non-EMC) PXI filler panels
|
| M9019A | PXIe Chassis: 18-slot, Gen 3, 3U, 24 GB/s
Included: Standard (non-EMC) PXI filler panels
|
| ACCESSORIES |
|
| Y1212A | Slot blocker kit: 5 single-slot |
| Y1213A | PXI EMC filler panel kit: 5 single-slot |
| Y1214C | Air inlet module kit (includes controller slot blocker) |
| Y1215C | Flush mount rack kit |
| Y1216B | Recess mount rack kit |
| Y1217A | Rack mount rail kit |
| Y1218A | Cable tray kit |
