快速報價: Viavi NSC200-PLATINUM-10G

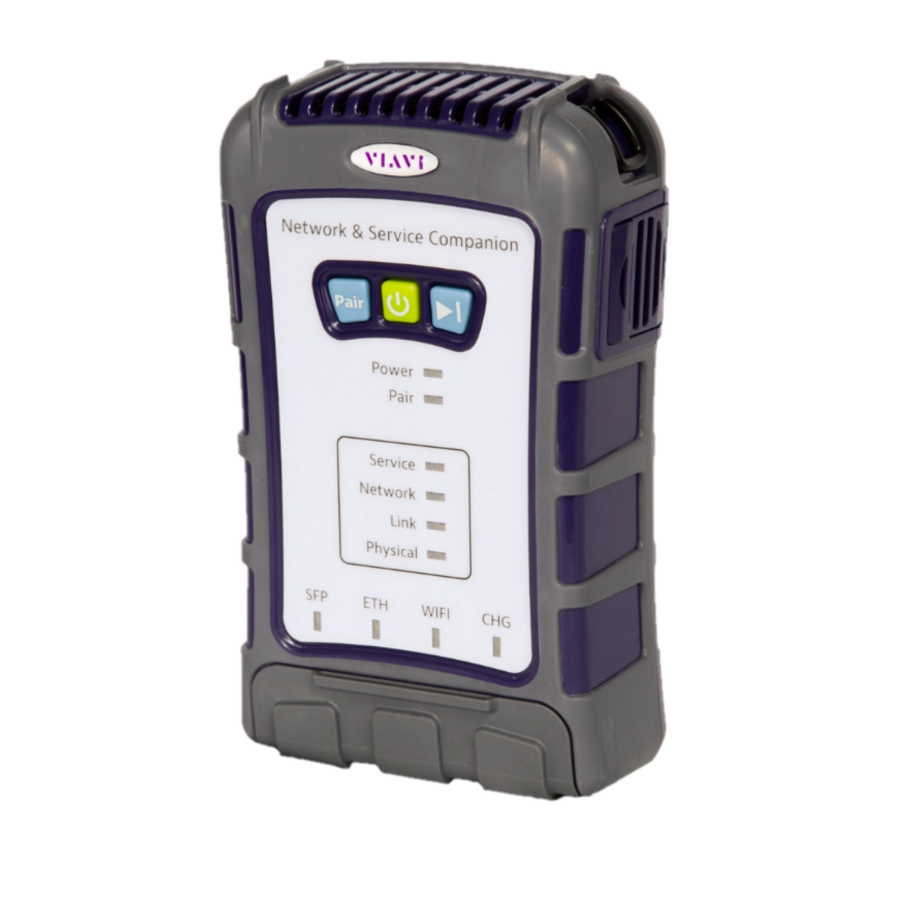

Viavi NSC200-PLATINUM-10G
Network Service Companion, PON, Ethernet, WiFI Tester to 10G
型號
NSC200-PLATINUM-10G產品類別
Network & Fiber Installations製造商
Viavi配置型號包含以下特性:
Network & Fiber InstallationsLAN Cable Test Instruments配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
請參考資源中的資料文檔或查看產品總覽。
如果您想瞭解更多，請 聯繫，我們的團隊將為您提供幫助。
產品總覽
The Network & Service Companion (NSC-200) allows techs and contractors to validate both network and service layers up to 10G before sharing their test results with customers and providers.
NSC200 Platinum Package Includes: XGSPON, Ethernet, WiFi, SpeedCheck 10G, Speedtest 10G, TrueSpeed 10G, Loopback 10G, TWAMP
Key Features:
- Simplify the closeout test process and analysis for both inexperienced and expert techs with one-button, one-screen result tests, all run under 1 minute.
- Prevent customer complaints or find the root cause of issues by testing at every access point (GPON, XGSPON, Ethernet, WiFi) for a clear and fast demarcation.
- Optimize WiFi coverage and performance; educate end users with simple room-by-room analysis. Get network improvement recommendations when performance is below expectation.
Specifications
| GPON (Optional) | |
| ONU/ONT | VIAVI GPON SFP |
| Interface | SC/APC |
| Standard | G.984.2 GPON compliant |
| G.988 OMCI compliant | |
| Upstream (1310 nm) Tx Signal Power Range | 0.5 dBm to 5.0 dBm |
| Downstream (1490 nm) Rx Signal Power Range | -28.0 dBm to -8.0 dBm |
| Test Results | PON Activation State, Power Level values from the SFP, PON ID, ODN Class – according to ITU-T G.984 and G.988 standards |
| XGSPON (Optional) | |
| ONU/ONT | VIAVI XGSPON SFP |
| Interface | SC/APC |
| Standard | G.9807.1 XGSPON compliant |
| G.988 OMCI compliant | |
| Upstream (1270 nm) Tx Signal Power Range | 4.0 dBm to 9.0 dBm |
| Downstream (1577 nm) Rx Signal Power Range | -28.0 dBm to -9.0 dBm |
| Test Results | PON Activation State, Power Level values from the SFP, PON ID, ODN Class – according to ITU-T G.9807 and G.988 standards |
| Ethernet (Optional) | |
| Standard | IEEE 802.3 |
| 10M, 100M, 1G, 2.5G, 5G, and 10G Ethernet | |
| Test Results | Ethernet Frames, IP Connectivity, Ping, Traceroute, Web Connectivity, Speed Test up to 10 Gbps |
| TWAMP Reflector (Optional) | 10M, 100M, and 1G Ethernet |
| TWAMP Light Reflector support | |
| Port/L2/L3 Loopback (Optional) | 10M, 100M, 1G, and 10G Ethernet |
| Port Loopback and Source specific VIAVI Loopback support |
| WiFi (Optional) | ||
| Test Results | WiFi Expert (Passive Mode) | Up to WiFi 6 (802.11 a/b/g/n/ac/ax) • Signal strength (RSSI), Channel, Standard, Width, Channel Noise, Total Airtime, Noise Airtime, Estimated Throughput, Recommendations |
| OneCheck WiFi (Connected Mode) | Up to WiFi 5 3x3 (802.11 a/b/g/n/ac) • Signal strength (RSSI), Standard, Width, Max Router PHY Rate, IP/Web connectivity, Throughput Tests |
| Throughput Performance Test (Optional) | |
| TCP Throughput Test | VIAVI SpeedCheck Ookla Speedtest VIAVI TrueSpeed (RFC-6349) iPerf |
| Performance | 10 Gbps for SpeedCheck, Ookla Speedtest, TrueSpeed, iPerf |
| Test Results | Delay, Upstream and Downstream Bit Rates |
資源
文檔資料
Viavi NSC200 Datasheet
