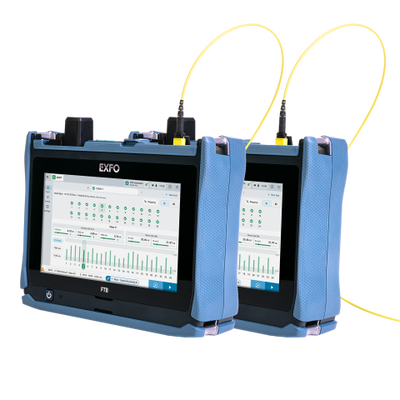

EXFO FTB-LITE-975

Simplex, Duplex, Multi-Fiber BiDirectional Certifier

型號

FTB-LITE-975

產品類別

Network & Fiber Installations

製造商

EXFO

配置型號包含以下特性:

Network & Fiber InstallationsOptical Time Domain Reflectometers

配置

產品總覽

資源

讓我們為您提供準確的配置

請使用“獲取快速報價”，我們將根據您的需求與您聯繫並報價。

您也可以選擇保持聯繫，我們會為您提供正確的應用和採購解決方案。

產品總覽

The only fully automated, always-connected solution natively combining bidirectional OLTS and OTDR-ready capabilities on one compact device. Supports simplex, duplex and multi-fiber connectors up to 24 fibers.

The FTB Lite 975 supports evolving data center and AI infrastructure with a flexible design for test cords that streamlines certification across simplex, duplex, and base‑8/12/16/24 multi‑fiber cables with multiple connector types (MPO/MMC/LC).

KEY FEATURES

Native simplex, duplex and multi-fiber testing up to 24 fibers

Bidirectional Tier-1 OLTS-enabled testing: insertion loss (IL), optical return loss (ORL), fiber length measurements, and polarity validation

Fault-finding and OTDR capabilities for fiber characterization with EXFO’s intelligent Optical Link Mapper (iOLM)

End-to-end automation from one-touch referencing, touchless testing through reporting to OTDR-enabled troubleshooting.

SmartRef™: One-touch referencing, validation and troubleshooting with visual diagnostics

APPLICATIONS

Intra data center

Campus data center interconnect (DCI)

Metro/longhaul DCI

Telco and FTTx

SPECIFICATIONS
Model: FTB Lite 975
Feature	Parameter
Automation	Yes
Calibrated Wavelengths	1550 / 1625 / 1310
EXFO Exchange Compatibility	Yes
Fiber Connector Type	Duplex / Simplex / Multi-fiber
Fiber Type	Singlemode
Measurement Type	Optical return loss (ORL) / Insertion loss / Polarity / Length / OTDR (upcoming)
Multiple Wavelength Measuring	Yes
Visual Fault Locator (VFL)	Yes

SPECIFICATIONS
FTB-Lite-975 Overview
Model FTB-Lite-975
Optical Configuration (FTB-Lite-975-XX)
SM1-DF	SM simplex/duplex fiber, 1310/1550 nm
SM3-DF	SM simplex/duplex fiber, 1310/1550/1625 nm
SM1-MF24	SM simplex/duplex/multifiber 24, 1310/1550 nm
Base Hardware (FTB-Lite-975-XX-XX)
OLTS	OLTS capabilities
iOLMC	OTDR-based capabilities (iOLM), including OLTS capabilities
Power Meter and VF (FTB-Lite-975-XX-XX-XX)
00	Without power meter or VFL
VFL	Visual fault locator
VFLHP	High power VFL
VPM2X	VFL and power meter; GeX detector
VPM2XHP	High-power VFL and power meter; GeX detector
Connectivity (FTB-Lite-975-XX-XX-XX-XX)
FRF	With full RF capability (LTE, GNSS, Wi-Fi and Bluetooth)
Multi-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX)
MC-MF24-SM-92F12	SM MPO-12/APC unpinned (female), 25 m
MC-MF24-SM-92M12	SM MPO-12/APC pinned (male), 25 m
MC-MF24-SM-92F16	SM MPO-16/APC unpinned (female), 25 m
MC-MF24-SM-92M16	SM MPO-16/APC pinned (male), 25 m
MC-MF24-SM-92F24	SM MPO-24/APC unpinned (female), 25 m
MC-MF24-SM-92M24	SM MPO-24/APC pinned (male), 25 m
MC-MF24-SM-116F16	SM MMC-16/APC unpinned (female), 25 m
MC-MF24-SM-116M16	SM MMC-16/APC pinned (male), 25 m
MC-MF24-SM-116F24	SM MMC-24/APC unpinned (female), 25 m
MC-MF24-SM-116M24	SM MMC-24/APC pinned (male), 25 m
Duplex-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX-XX)
DC-SM-SCA-SCA-25	SM duplex SC/APC, 25 m
DC-SM-SCA-SCU-25	SM duplex SC/UPC, 25 m
DC-SM-SCA-LCA-25	SM duplex LC/APC, 25 m
DC-SM-SCA-LCU-25	SM duplex LC/UPC, 25 m
DC-SM-SCA-MDCA-25	SM duplex MDC/APC, 25 m
DC-SM-SCA-MDCU-25	SM duplex MDC/UPC, 25 m
Single-fiber Test Cord (FTB-Lite-975-XX-XX-XX-XX-XX-XX-XX)
SC-SM-SCA-SCA-25	SM SC/APC, 25 m
SC-SM-SCA-SCU-25	SM SC/UPC, 25 m
SC-SM-SCA-LCA-25	SM LC/APC, 25 m
SC-SM-SCA-LCU-25	SM LC/UPC, 25 m
SC-SM-SCA-FCA-25	SM FC/APC, 25 m
SC-SM-SCA-FCU-25	SM FC/UPC, 25 m
