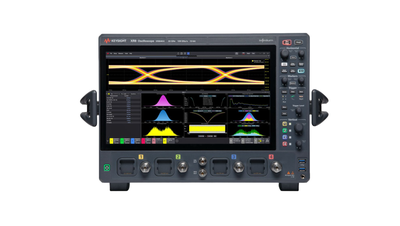

Keysight Technologies XR804KA
Infiniium XR8 Real-Time Oscilloscope: 12-bit, 128 GSa/s, 4Ch, 2.92mm
型號
XR804KA產品類別
Oscilloscopes & Logic Analyzers製造商
Keysight Technologies配置型號包含以下特性:
Oscilloscopes & Logic AnalyzersOscilloscopes 20GHz+配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
請參考資源中的資料文檔或查看產品總覽。
如果您想瞭解更多，請 聯繫，我們的團隊將為您提供幫助。
產品總覽
The Keysight Pro oscilloscopes come in two classes. The XR8-class includes XR8 oscilloscopes. The XR9-class includes the Infiniium UXR series.
Combining next-generation hardware with a powerful software platform in a compact design, the Infiniium XR8 redefines the standard for signal integrity. Experience faster, deeper analysis that leverages Keysight's industry-leading measurement science for unmatched insight.
| KEY FEATURES |
| 8 to 33 GHz real-time oscilloscope bandwidth options available with single XR804KA model number |
Flexible bandwidth configuration options: ● All four channels at maximum bandwidth (8 to 33 GHz) ● Two channel bandwidth pairs with 128 GSa/s sample rate (four channels total): ○13 GHz (two channels) + 25 GHz (two channels) ○25 GHz (two channels) + 33 GHz (two channels) ● License upgradable to any bandwidth option |
| 1 Gpt memory per channel standard, upgradable to 2 or 8 Gpts memory per channel |
| 128 GSa/s sample rate on all four channels |
| 12-bit Hardware ADC (Analog-to-Digital Converter) |
| Next-gen Infiniium 2026 software platform delivers faster performance and advanced analysis |
| Compact and optimized for reduced power consumption (900 VA max), improved thermal efficiency and quiet operation |
| BENEFITS | |
| Smarter Analysis. Faster Answers | Powered by Infiniium 2026 software and multicore CPU acceleration, the XR8 delivers up to 5 times faster PAM analysis and up to 12 times faster jitter analysis—so engineers spend less time waiting and more time debugging. |
| Smaller Footprint. Better Efficiency | The XR8’s compact, low-power design with advanced thermal control reduces heat and acoustic noise, making it easy to deploy across modern labs without infrastructure upgrades. |
| Superior Signal Integrity by Design | With a highly consolidated front end, single-chip ADC and DSP integration, and native 12-bit ADC resolution, the XR8 delivers cleaner measurements and higher confidence in every result. |
| SPECIFICATIONS | |
| Model: XR804KA | |
| Feature | Parameters |
| Display Size | 15.6 inch |
| Front-end Connector Size | 2.92 mm |
| ADC Resolution | 12 bits |
| Analog Channels | 4 |
| Maximum Memory Depth | 8 Gpts |
| Maximum Sample Rate | 128 GSa/s |
| Maximum Bandwidth | 33 GHz |
| Brands Included | UXR Series |
| SPECIFICATIONS | |
| XR894KA Model Overview | |
| Model - Option | Bandwidth (Maximum / Channel) |
| XR804KA-084 | 8 GHz / 4 Channels |
| XR804KA-104 | 10 GHz / 4 Channels |
| XR804KA-134 | 13 GHz / 4 Channels |
| XR804KA-164 | 16 GHz / 4 Channels |
| XR804KA-204 | 20 GHz / 4 Channels |
| XR804KA-252 | 25 GHz / 2 Channels; 13 GHz / 2 Channels |
| XR804KA-254 | 25 GHz / 4 Channels |
| XR804KA-332 | 33 GHz / 2 Channels; 25 GHz / 2 Channels |
| XR804KA-334 | 33 GHz / 4 Channels |
