Tektronix 80C10
Optical Module: 65GHz 43Gbps
型號
80C10產品類別
Oscilloscopes & Logic Analyzers製造商
Tektronix配置型號包含以下特性:
Oscilloscopes & Logic AnalyzersSampling Oscilloscopes50GHz <= 85GHz配置
技术指标
產品總覽
資源
讓我們為您提供準確的配置
技术指标
在選擇附件時標明其特性， 有關附件詳細資訊請參見“配置”選項。
| 特性 | 參數 |
|---|---|
| High Frequency (range) | 50GHz <= 85GHz |
產品總覽
The DSA8200 Series Sampling Oscilloscope, when configured with one or more optical sampling modules, provide complete optical test solutions for Telecom (125 Mb/s to 43.018 Gb/s) or Datacom (Fibre Channel, Gigabit Ethernet, 10 GbE and InfiniBand) applications, as well as general purpose optical component testing.
| KEY FEATURES |
| 10 Gb/s Telecom & Datacom |
| Highly accurate ER Calibrated (Extinction Ratio) measurement option for increased repeatability and transferability of the measurement |
| 40 Gb/s Telecom |
| 80C10 Provides Highest Optical Bandwidth Capability for Performance Testing and Signal Characterization of 40 Gb/s RZ or NRZ Data Formats |
| 80C10 Provides 65 GHz Optical Bandwidth and Reference Receivers for Conformance Testing of 39.813 Gb/s (OC-768/STM-256) and 43.018 Gb/s (ITU-T G.709 FEC) |
| BENEFITS | |
| Each Optical Module includes all the elements necessary for optical testing: | Optical to Electrical Converter Average Power Monitor One or More Reference Receiver Filters A Full Bandwidth Optical Path A Low-noise Electrical Sampler Optional Integrated Clock Recovery (80C12 clock recovery is provided via the 80A05 or 80A07 Clock Recovery Module – sold separately) Universal Optical Input Connector |
| SPECIFICATIONS | |

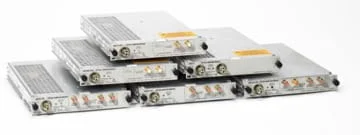

| Optical Sampling Modules | |
| Model | Description |
| 80C02 High-Performance Telecom | The 80C02 module is optimized for testing of long-wavelength (1100 to 1650 nm) signals at 9.953 Gb/s (SONET OC-192/SDH STM-64). With its high optical bandwidth of 30 GHz (typical), it is also well-suited for general purpose, high-performance optical component testing. The 80C02 can be optionally configured with clock recovery that supports 9.953 Gb/s telecom standards. |
| 80C10 65 GHz 40 Gb/s Module with 43 Gb/s ITU-T G.709 Forward Error Correction | The 80C10 module provides integrated and selectable reference receiver filtering, enabling conformance testing at either 1310 nm or 1550 nm for 39.813 Gb/s (OC-768/STM-256) and 43.018 Gb/s (43 Gb/s ITU-T G.709 FEC) rates. In addition to the filter rates, the user may also choose selectable bandwidths of 30 GHz, 65 GHz in 80C10 for optimal noise vs. bandwidth performance for accurate signal characterization. The 80C10 is optionally available in a bundled ordering configuration which includes a 70+ GHz electrical sampling channel. |
| SPECIFICATIONS | |||
| Optical Sampling Modules | |||
| Module | 80C02 | 80C02 | 80C10 |
| Opt. | CR | ||
| Bandwidth (GHz) | 30 | 30 | 65 |
| Wavelength Range (nm) | 1100-1650 | 1100-1650 | 1290-1330 1520-1580 |
| Fiber Input (μm) | 9 | 9 | 9 |
| Mask Test Sensitivity (dBm) | -9 | -9 | -2 |
| Number of Channels | 1 | 1 | 1 |
