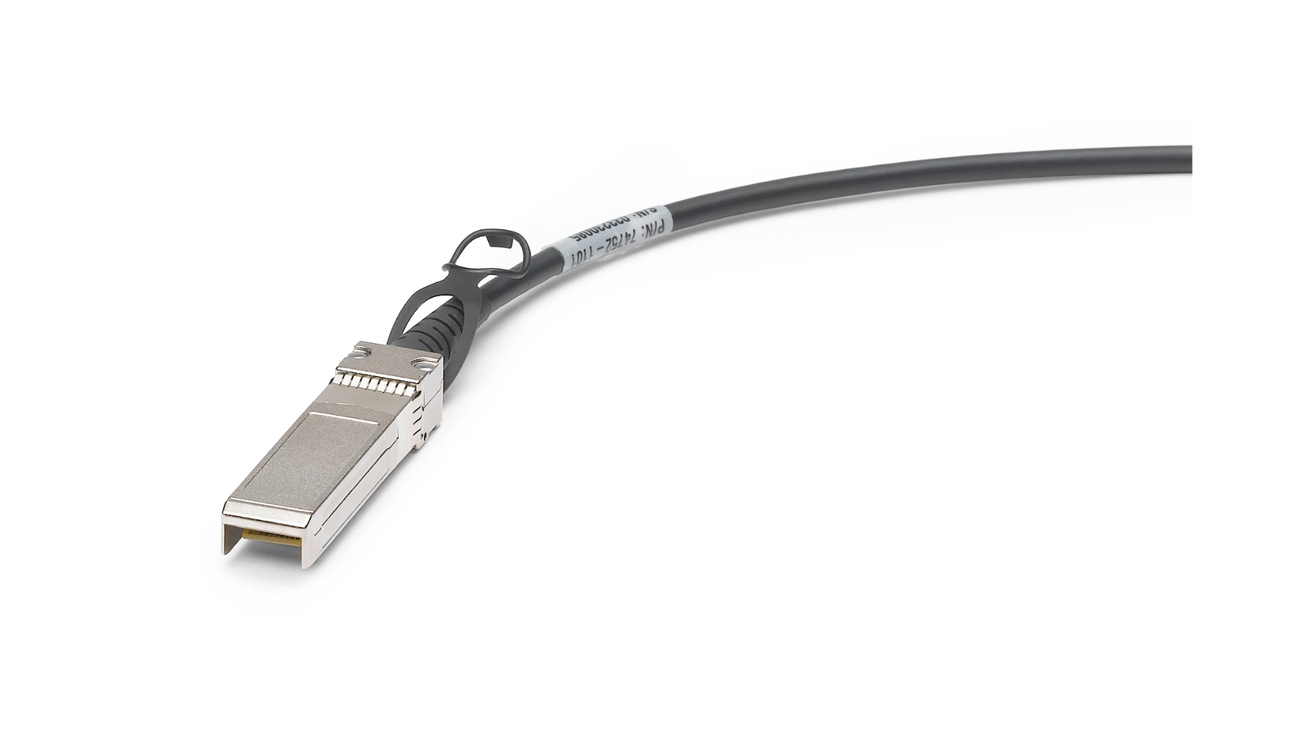

Connects to the small form-factor pluggable (SFP) or quad small form-factor pluggable (QSFP) ports on hardware devices and instruments.
The SFP cable connects to the SFP or QSFP port on some PXI High-Speed Serial Instruments, PXI Ethernet Interface Modules, Controllers for FlexRIO, and USRP RIO devices.
| Specifications |
|
|
|
|
| SFP Cable |
|
|
|
|
| Model Overview |
|
|
|
|
| Model (Part Number) | Back End Connection | Front End Connection | Optical Fiber | Length |
QSFP+ Cable
(785685-01)
| 1 Pin, Male QSFP+ | 1 Pin, Male QSFP+ | -- | 1 m |
QSFP+ Cable
(785685-05)
| 1 Pin, Male QSFP+ | 1 Pin, Male QSFP+ | -- | 5 m |
QSFP+ Cable
(785700-10)
| 1 Pin, Male QSFP+ | 1 Pin, Male QSFP+ | -- | 10 m |
QSFP+ Cable
(785700-50)
| 1 Pin, Male QSFP+ | 1 Pin, Male QSFP+ | -- | 50 m |
QSFP28 Cable
(788256-0R5)
| 1 Pin, Male QSFP28 | 1 Pin, Male QSFP28 | -- | 0.5 m |
QSFP28 Cable
(788256-01)
| 1 Pin, Male QSFP28 | 1 Pin, Male QSFP28 | -- | 1 m |
QSFP28 Cable
(788256-02)
| 1 Pin, Male QSFP28 | 1 Pin, Male QSFP28 | -- | 2 m |
QSFP28 Cable
(788215-03)
| 1 Pin, Male QSFP28 | 1 Pin, Male QSFP28 | -- | 3 m |
QSFP28 Cable
(788257-10)
| 2-Pin, Male LC Duplex | 2-Pin, Male LC Duplex | -- | 10 m |
SFP+ Cable
(784076-0R5)
| 1-Pin, Male SFP+ | 1-Pin, Male SFP+ | -- | 0.5 M |
SFP+ Cable
(784184-10)
| 2-Pin, Male LC Duplex | 2-Pin, Male LC Duplex | Multimode | 10 m |
SFP+ Cable
(784076-01)
| 1-Pin, Male SFP+ | 1-Pin, Male SFP+ | -- | 1 m |
SFP+ Cable
(784076-03)
| 1-Pin, Male SFP+ | 1-Pin, Male SFP+ | -- | 3 m |
SFP+ Cable
(784184-50)
| 2-Pin, Male LC Duplex | 2-Pin, Male LC Duplex | Multimode | 50 m |
SFP+ Cable
(784184-100)
| 2-Pin, Male LC Duplex | 2-Pin, Male LC Duplex | Multimode | 100 m |
