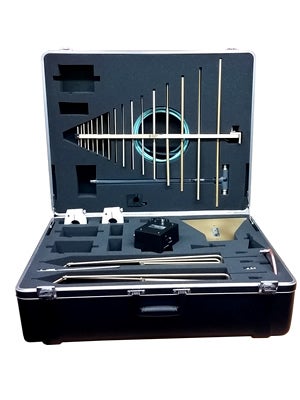

The AK-18G antenna kit provides all the reliable antennas, current probes, and accessories needed to satisfy a wide array of customer requirements. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head, and a tripod carrying case accompany the antenna kit. Everything you need for any of your compliance testing.
| Key Features |
| 20 Hz to 18 GHz |
| Individually Calibrated |
| FCC, MIL-STD, VDE and TEMPEST Testing |
| Rugged Construction |
| Specifications |
|
|
AK-18G
Antenna Kit
|
|
|
| Included Equipment | Frequency Range | Description |
| TSC-542 |
| Transit Storage Case |
| SAS-510-2 | 290 MHz - 2000 MHz | Log Periodic Antenna |
| SAS-542 | 20 MHz - 330 MHz | Biconical Antenna |
| SAS-550-1B | 9 KHz - 60 MHz | Active Monopole |
| SAS-560 | 20 Hz - 2 MHz | Passive Loop Antenna |
| SAS-571 | 700 Hz - 18 GHz | DRG Horn Antenna |
| BCP-610 | 20 Hz - 20 MHz | Broadband Current Probe |
| BCP-611 | 10 KHz - 150 MHz | Broadband Current Probe |
| SAC-18G-3 | up to 18 GHz | 3 Meter Low-Loss Cable |
| ADP-202 | up to 18 GHz | N(f) to BNC(m) Adapter |
| ATU-510 |
| Wooden Tripod |
| AEH-510 |
| Azimuth and Elevation Head |
| TCC-510 |
| Tripod Carrying Case |
| Specifications |
|
AK-18G
Antenna Kit
|
|
| Dimensions |
|
| Antenna Case Size | 28" x 23" x 10" |
| Weight | 38 lb.'s |
| Tripod Case Size | 46" x 8" Dia. |
| Weight | 18.6 lb.'s |
