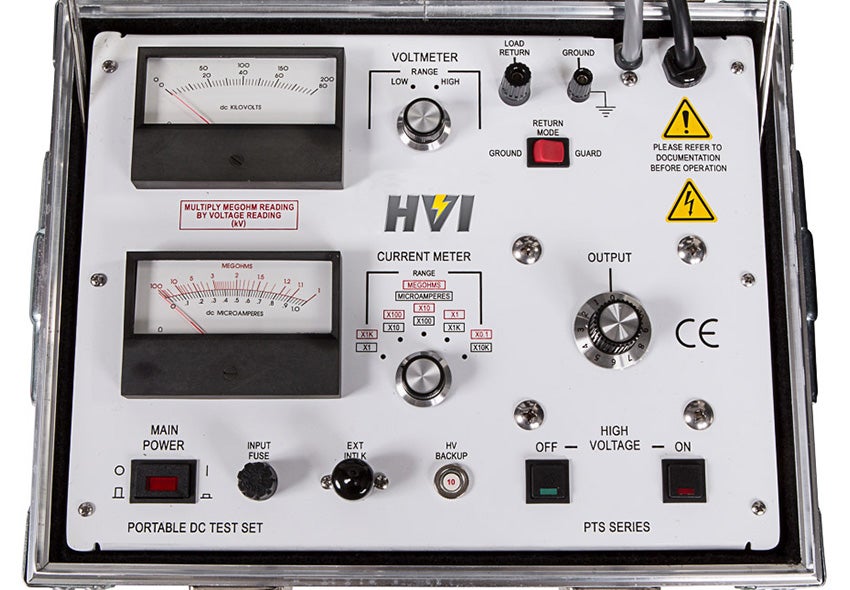

The PTS-200 and PTS-200F are combination high voltage DC proof tester and megohmmeter. Dielectric strength and insulation resistance testing are combined into one instrument saving time, money, size and weight. Equipped with a 5-range current meter scaled 0 – 1 dc microamps for accurate current measurement down to a 10 nanoamp resolution in the x1 range.
Using the alternate scale on the current meter allows the PTS Series to double as a Megohmmeter up to 20 teraohms, scaled 100-1 megohms, insulation resistance can be taken at any voltage. An accurate 2 range voltmeter rounds out the standard instrumentation.
Additional features include ruggedized anti-static and transit protected meters, rugged two-piece design with foam padded handles, full-wave bridge rectifier, internal shorting solenoid with discharge resistors, and is CE marked.
| KEY FEATURES |
| 20 foot (6 meter) shielded output cable, ground and return leads |
| 5 range current/megohm meter for accurate leakage current |
| Megohm readings at any output voltage up to 20 teraohms |
| Full-wave bridge rectifier |
| Internal HV Shorting Solenoid with discharge resistors |
| Automatic transit protected meters with Anti-static glass face |
| Under lid and HV tank mounted storage for all accessories |
| External safety and zero start interlocks |
| SPECIFICATIONS |
|
| PTS-200 AND PTS-200F DC Hipots |
|
| Features | Parameters |
| Input: | PTS-200 – 120Vac, 60Hz, 15A
PTS-200F – 230Vac, 50/60Hz, 8A
|
| Output: | 0 – 200 kV DC @ 5 mA, negative polarity, positive ground
Full Wave Bridge Rectification
|
| Duty: | Continuous, capacitive charging |
| Voltmeter: | 3.5”, scaled 0 – 80/200 kV DC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0 – 1.0 μAdc, ±2% F.S. with multipliers of x 1, x 10, x 100, x 1 k, x 10 k
Guard/ground load return
|
| Megohmmeter: | Scaled 100 -1 MΩ ±2% F.S. with multipliers of x 0.1, x 1, x 10, x 100, x 1 k |
Size & Weight:
(W x D x H)
| Case:
14 x 11 x 14 in., 34 lb.
356 x 279 x 356 mm, 15 kg
HV Tank:
13 x 14 x 27.5 in., 150 lb.
330 x 356 x 699 mm, 68 kg
|
| SPECIFICATIONS |
|
|
| PTS-Series Overview |
|
|
| Model | Frequency | Input Power |
| PTS-15 | 0 – 15 kV DC | 120Vac, 60Hz, 10A |
| PTS-15F5 | 0 – 15 kV DC | 230Vac, 50Hz, 5A |
| PTS-15F6 | 0 – 15 kV DC | 230Vac, 60Hz, 5A, +/-1% input voltage regulator |
| PTS-37.5 | 0 – 37.5 kV DC | 120Vac, 60Hz, 10A |
| PTS-37.5F5 | 0 – 37.5 kV DC | 230Vac, 50Hz, 5A |
| PTS-37.5F6 | 0 – 37.5 kV DC | 230Vac, 60Hz, 5A, +/-1% input voltage regulator |
| PTS-75 | 0 – 75 kV DC | 120Vac, 60Hz, 10A |
| PTS-75F5 | 0 – 75 kV DC | 230Vac, 50Hz, 5A |
| PTS-75F6 | 0 – 75 kV DC | 230Vac, 60Hz, 5A, +/-1% input voltage regulator |
| PTS-80 | 0 – 80 kV DC | 120Vac, 60Hz, 10A |
| PTS-80F | 0 – 80 kV DC | 230Vac, 50/60Hz, 5A |
| PTS-100 | 0 – 100 kV DC | 120Vac, 60Hz, 10A |
| PTS-100F | 0 – 100 kV DC | 230Vac, 50/60Hz, 5A |
| PTS-130 | 0 – 130 kV DC | 120Vac, 60Hz, 15A |
| PTS-130F | 0 – 130 kV DC | 230Vac, 50/60Hz, 8A |
| PTS-200 | 0 – 200 kV DC | 120Vac, 60Hz, 15A |
| PTS-200F | 0 – 200 kV DC | 230Vac, 50/60Hz, 8A |
| PTS-300 | 0 – 300 kV DC | 120 Vac, 60 Hz, 15 A |
| PTS-300F | 0 – 300 kV DC | 230 Vac, 50/60 Hz, 8 A |
| PTS-600 | 0 – 600 kV DC | 120Vac, 50/60Hz, 30A |
| PTS-600F | 0 – 600 kV DC | 230Vac, 50/60Hz, 15A |
