| Specifications |
|
| U1280 Series Handheld Digital Multimeters |
|
| Series Overview |
|
| Model | Description |

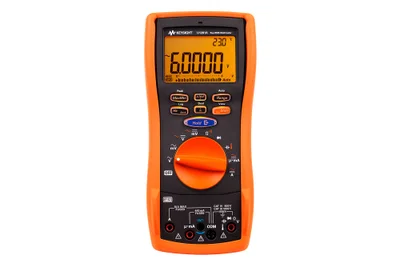

| U1281A | 4 ½-Digit Handheld Digital Multimeter
Included:
Test leads (red and black)
Infrared (IR)-to-USB cable
AA batteries (4x)
Quick Start Guide
Certificate of Calibration
|
| U1282A | 4 ½-Digit Handheld Digital Multimeter
Included:
Test leads (red and black)
Infrared (IR)-to-USB cable
AA batteries (4x)
Quick Start Guide
Certificate of Calibration
|
| Optional Accessories |
|
| U1117A | Infrared(IR)-to-Bluetooth Adapter
Enable Bluetooth connection to Keysight handheld digital multimeters
Up to 100-meter operating rage
|
| U1115A | Remote Logging Display
Displays up to 4 Keysight handheld digital multimeters measurements
60,000 points interval logging
Extended measurement distance of up to 100-meter
|
| U5404A | Remote Switch Probe for U1280 Series
Measure and save measurement with a single touch of button
|
| U1594A | Hard Carrying Case
Hard carrying case with two compartments for U1280 Series handheld digital multimeters.
|
| U1595A | Rugged Carrying Case
High quality, water and dust proof carrying case designed to store up to two handheld and accessories
|
| U1583B | AC Current Clamp
Dual range 40 A and 400 A
BNC-to-banana plug adapter provided for use with handheld digital multimeters
|
| U1161A | Extended Test Lead Kit
Includes two test leads (red and black), two test probes, medium sized alligator clips and 4-mm banana plugs.
Test leads: CAT III 1000 V, CAT IV 600 V, 15 A
Test probe (4-mm tips): CAT III 1000 V, CAT IV 600 V, 15 A
Medium-sized alligator clips: CAT III 1000 V, CAT IV 600 V, 15 A
4-mm banana plugs: CAT II 600 V, 10 A
|
| U1168B | Standard Test Lead Kit
Includes two test leads (red and black), 4-mm test probes, alligator clips, fine-tip test probes, SMT grabbers and mini grabber (black)
Test leads: CAT III 1000 V, CAT IV 600 V, 15 A
Test probe (19-mm tips): CAT II 1000 V, 15 A
Test probe (4-mm tips): CAT III 1000 V, CAT IV 600 V, 15 A (highly recommended for CAT IV environment)
Alligator clips: CAT III 1000 V, CAT IV 600 V, 15 A
Fine-tip test p[robes: CAT II 300 V, 3 A
SMT grabber: CAT II 300 V, 3 A
Mini grabber: CAT II 300 V, 3 A
|
| U1180A | Temperature Sensors and Probes
Includes thermocouple adapter, thermocouple bead J-type and thermocouple bead Ktype.
T/C adapter J/K type
T/C bead J-type: –20 to 200 °C
T/C bead K-type: –20 to 200 °C
|
| U1181A | Immersion Temperature Probe
Type K T/C for use in oil and other liquids
Measurement range: –50 to 700 °C
Includes adapter U1184A for connection to DMM
|
| U1182A | Industrial Surface Temperature Probe
Type K T/C for use on still surfaces
Measurement range: –50 to 400 °C
Includes adapter U1184A for connection to DMM
|
| U1183A | Air Temperature Probe
Type K T/C for use in air and non-caustic gas
Measurement range: –50 to 800 °C
Includes adapter U1184A for connection to DMM
|
| U1184A | Temperature Probe Adapter
Mini-connector-to-banana-plug adapter for use with DMM
|
| U1185A | Thermocouple (J-type) and Temperature Probe Adapter
T/C adapter J/K type
T/C bead J-type: –20 to 200 °C
|
| U1186A | Thermocouple (K-type) and Temperature Probe Adapter
T/C adapter J/K type
T/C bead J-type: –20 to 200 °C
|
