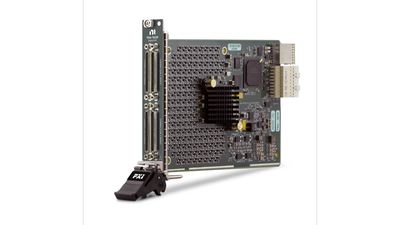

NI PXIe-7822R

Kintex 7 325T FPGA, 128 DIO, 512 MB DRAM, PXI Digital Reconfigurable I/O Module.

The PXIe-7822 is a reconfigurable I/O (RIO) device that features a user-programmable FPGA for onboard processing and flexible I/O operation. With LabVIEW FPGA, you can individually configure the digital lines as inputs, outputs, counter/timers, PWM, encoder inputs, or specialized communication protocols. You can also program custom onboard decision making that executes with hardware-timed speed and reliability. Each line offers software-selectable logic levels.

The PXIe-7822 supports peer-to-peer streaming for direct data transfer between PXI Express modules.\r \r The PXIe-7822 is well-suited for a wide variety of applications, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, bit error rate test, and other applications that require precise timing and control.
