Kikusui PCR6000WEA2 3P4W 400V

Ultra compact AC/DC Power Supply; 6kVA 3P4W 400V, DC, 1Hz to 5kHz

Model

PCR6000WEA2 3P4W 400V

Product Family

Power Supplies / Electronic Loads

Manufacturer

Kikusui

Configured models contain the following attributes:

Power Supplies / Electronic LoadsAC Power Supplies30A20A60A10A6kW

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Current	30A
Maximum Current	20A
Maximum Current	60A
Maximum Current	10A
Maximum Power	6kW

Product Overview

The PCR-WEA/WEA2 is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 15 model line-up ranges from 1 kVA to 36 kVA AC/DC with single & 3-phase variable output from 6 kVA and up.

The PCR-WEA2 also features a regenerative mode*1 that can drastically reduce power consumption and cut operating costs.

The PCR-WEA2/WEA2R also supports mix-and-match parallel operation*2 up to 144kVA for large-scale test systems.

Output frequency up to 5kHz is also available with all models, which is critical for AC applications in avionic industries.

Note:

*1 Only “R” models (PCR-WEA2R) with 3-phase 200 V input. For regeneration within the installation site only.

*2 Parallel operation is available for 6kVA models and up, with a maximum of 4 units. Same model combination is not required.

Key Features

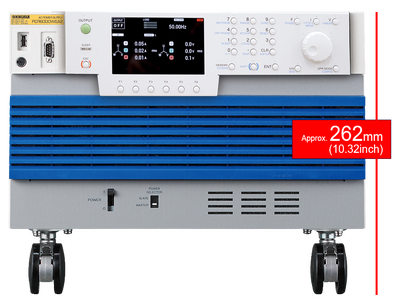

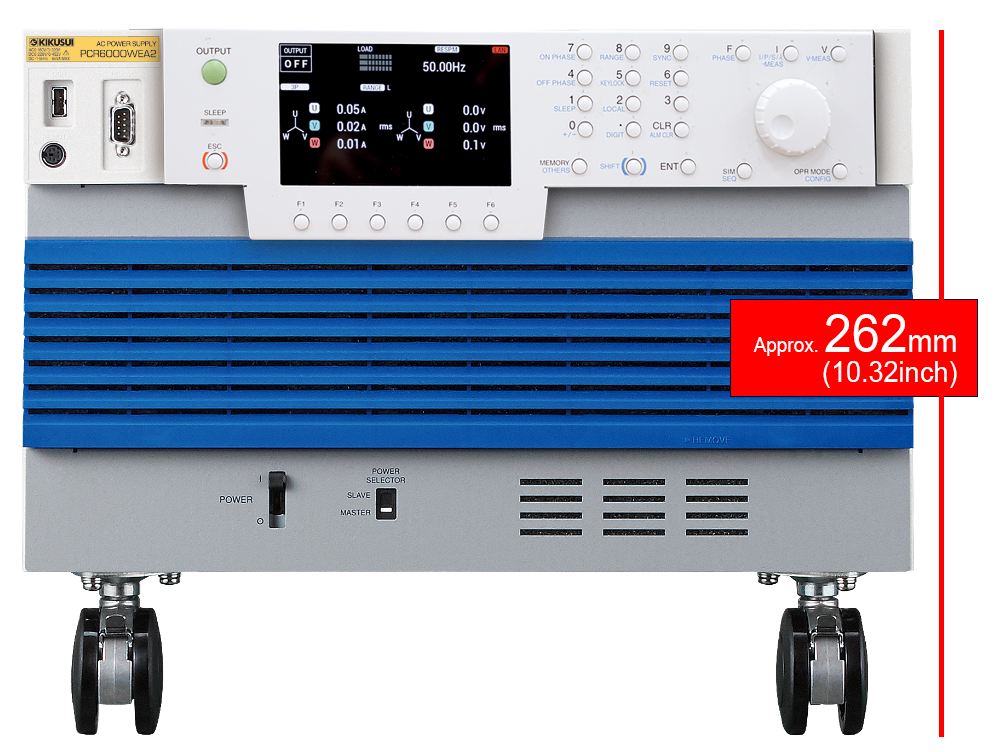

Compact size: 6 kVA in 6U (PCR6000WEA2/PCR6000WEA2R)

Up to 36 kVA in a single unit

100% Regenerative-power capability (Only “R” models (PCR-WEA2R)

with 3-phase 200 V input. Regeneration on premises only.)

Mix-and-match parallel operation up to 144 kVA

Flexible digital interface: LAN (LXI), USB, RS232C, GPIB (factory option)

Sequence function for advanced simulation

Power-saving function

DC output: +/-, 100% of rated power

Output frequency up to 5 kHz

Output rating: AC 0 to 320 Vrms, DC 0 to ±452 V

Benefits
Compact Size	Compared to our previous PWM models, the size of the PCR-WEA has been drastically reduced by 60%. Efficiency has also been increased by approximately 7%, for an overall high efficiency of approximately 85%.
Up to 144kVA with Parallel Operation	Parallel operation is available on all models by simply connecting an optional parallel operation cable. This feature is available even among different models for a wide range of high power. *Same input voltage required for 6 kVA models and higher.
Extremely Power Dense 36kVA Chassis	The PCR-WEA/WEA2 form factor has been significantly improved, occupying the absolute minimum amount of precious space in your testing facility. The form factor is even further optimized in high power models.
Low Ripple Noise	Achieves an extremely low switching noise for a PWM inverter-type AC power supply, with ripple noise as low as 0.25 Vrms. The PCR-WEA series even boasts similar noise performance with the PCR-LE/LE2 linear amplifier power supply series. The compact, high-power design of the PCR-WEA/WEA2 has been achieved with absolutely no compromises to ripple noise performance.
100% Regeneration Capability, No Time Limit	The PCR-WEA2R models are capable of 100% power regeneration. The power regeneration feature is available with absolutely no reverse load flow time limit. (30% for PCR-LE/LE2) *Regeneration is limited within installation site. Only available in "R" models (PCR-WEA2R) with 3-phase 200 V input.
Output Frequency	It has a maximum output frequency up to 5 kHz for critical applications in the defense and avionics industries. The frequency performance of the PCR-WEA allows for simulation of sharp voltage fluctuations required for airborne electronic equipment testing. Furthermore, the compact 6kVA/6U form factor allows for the easy preparation of an automated, one-rack testing system without requiring a costly, specialized power source installation space.
DC Output 100% of Rated Power	The PCR-WEA/WEA2 series enables DC output up to 100% of the AC rated power output.
LAN, USB, RS232C Standard Digital Interface	The PCR-WEA/WEA2 series includes a flexible digital interface for users utilizing LAN, USB, and RS232C communication interfaces (GPIB factory option available). LAN connection is LXI compliant, allowing you to monitor and control your device wherever you are via computer, smartphone, or tablet web browser. This feature is particularly important when conducting critical AC tests in anechoic chambers/shield rooms. Additionally, the PCR-WEA can be controlled directly with easy remote-control software for customers with limitations in external communication.
Power Saving Mode	Sleep Mode: If the PCR-WEA/WEA2 does not detect output for a certain amount of time, the power unit will go into "sleep mode" and cut power consumption. Power-Saving Mode: The power-saving feature allows the PCR-WEA to cut the costs of operation by drawing power from only the necessary power modules required to reach the output setting.

Specifications
PCR-WEA/WEA2 Series Ultra-Compact AC/DC Programmable Power Supply
Model Overview
Model	PCR6000WEA2 PCR6000WEA2R	PCR12000WEA2 PCR12000WEA2R	PCR18000WEA2 PCR18000WEA2R
Insulation Resistance (Between; Input and Chassis Output and Chassis Input and Output)	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more
Withstand Voltage (Between; Input and Chassis Output and Chassis Input and Output)	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute
Electromagnetic Compatibility (EMC) ¹ ²	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³), EN 55011 (Class A ³, Group 1 ⁴) EN 61000-3-2 ⁵, EN 61000-3-3 ⁵ Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³) EN 55011 (Class A ³, Group 1 ⁴) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³) EN 55011 (Class A ³, Group 1 ⁴) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.
Safety ¹	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)
Operating Environment	Indoor use Overvoltage category II	Indoor use Overvoltage category II	Indoor use Overvoltage category II
Operating Temperature	0 °C to +50 °C 32 °F to +122 °F	0 °C to +50 °C 32 °F to +122 °F	0 °C to +50 °C 32 °F to +122 °F
Storage Temperature	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F
Operating Humidity	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)
Storage Humidity	90 %rh and less (no condensation)	90 %rh and less (no condensation)	90 %rh and less (no condensation)
Altitude	Up to 2000 m	Up to 2000 m	Up to 2000 m
Input Terminal	M5	M5	200 V input model : M8 400 V input model : M5
Output Terminal	M5	M5	M6

Specifications
PCR-WEA/WEA2 Series Ultra-Compact AC/DC Programmable Power Supply
Model Overview
Model	PCR1000WEA	PCR2000WEA	PCR3000WEA2
Insulation Resistance (Between; Input and Chassis Output and Chassis Input and Output)	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more
Withstand Voltage (Between; Input and Chassis Output and Chassis Input and Output)	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute
Electromagnetic Compatibility (EMC) ¹ ²	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³), EN 55011 (Class A ³, Group 1 ⁴) EN 61000-3-2 ⁵, EN 61000-3-3 ⁵ Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³), EN 55011 (Class A ³, Group 1 ⁴) EN 61000-3-2 ⁵, EN 61000-3-3 ⁵ Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³), EN 55011 (Class A ³, Group 1 ⁴) EN 61000-3-2 ⁵, EN 61000-3-3 ⁵ Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.
Safety ¹	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)
Operating Environment	Indoor use Overvoltage category II	Indoor use Overvoltage category II	Indoor use Overvoltage category II
Operating Temperature	0 °C to +50 °C 32 °F to +122 °F)	0 °C to +50 °C 32 °F to +122 °F	0 °C to +50 °C 32 °F to +122 °F
Storage Temperature	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F
Operating Humidity	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)
Storage Humidity	90 %rh and less (no condensation)	90 %rh and less (no condensation)	90 %rh and less (no condensation)
Altitude	Up to 2000 m	Up to 2000 m	Up to 2000 m
Input Terminal	M6	M6	M6
Output Terminal	M6	M6	M6

Specifications
PCR-WEA/WEA2 Series Ultra-Compact AC/DC Programmable Power Supply
Model Overview
Model	PCR24000WEA2 PCR24000WEA2R	PCR30000WEA2 PCR30000WEA2R	PCR36000WEA2 PCR36000WEA2R
Insulation Resistance (Between; Input and Chassis Output and Chassis Input and Output)	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more	500 Vdc, 10 MΩ or more
Withstand Voltage (Between; Input and Chassis Output and Chassis Input and Output)	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute	1500 Vac / 2150 Vdc, 1 minute
Electromagnetic Compatibility (EMC) ¹ ²	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³) EN 55011 (Class A ³, Group 1 ⁴) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³) EN 55011 (Class A ³, Group 1 ⁴) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.	Complies with the requirements of the following directive and standards: EMC Directive 2014/30/EU EN 61326-1 (Class A ³) EN 55011 (Class A ³, Group 1 ⁴) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.
Safety ¹	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)	Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷)
Operating Environment	Indoor use Overvoltage category II	Indoor use Overvoltage category II	Indoor use Overvoltage category II
Operating Temperature	0 °C to +50 °C 32 °F to +122 °F	0 °C to +50 °C 32 °F to +122 °F	0 °C to +50 °C 32 °F to +122 °F
Storage Temperature	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F	-10 °C to +60 °C 14 °F to +140 °F
Operating Humidity	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)	20 %rh to 80 %rh (no condensation)
Storage Humidity	90 %rh and less (no condensation)	90 %rh and less (no condensation)	90 %rh and less (no condensation)
Altitude	Up to 2000 m	Up to 2000 m	Up to 2000 m
Input Terminal	200 V input model : M8 400 V input model : M5	200 V input model : M8 400 V input model : M5	200 V input model : M8 400 V input model : M5
Output Terminal	M6	M8	M8

Note:

¹Does not apply to specially ordered or modified products.

²Only on models that have the CE marking on the panel.

³ This is Class A equipment. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

⁴ This is Group 1 equipment. This product does not generate and/or use intentionally radio-frequency energy, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose.

⁵ This does not apply to the PCR6000WEA2R.

⁶ This is Class I equipment. Be sure to ground this product’s protective conductor terminal. The safety of this product is only guaranteed when the product is properly grounded.

⁷Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only nonconductive pollution will occur except for an occasional temporary conductivity caused by condensation.

Specifications
PCR-WEA/WEA2 Series Dimensions/Weight
Model Overview
Model	Dimensions (mm(inch))(Maximum size)	Weight
PCR1000WEA	430(16.9")W×129.2(5.1")(150(5.9"))H×655(25.8")(710(28"))Dmm	16 kg 35.3 lb
PCR2000WEA	430(16.9")W×129.2(5.1")(150(5.9"))H×655(25.8")(710(28"))Dmm	20 kg 44.1 lb
PCR3000WEA2	430(16.9")W×129.2(5.1")(150(5.9"))H×655(25.8")(710(28"))Dmm	23 kg 50.7 lb
PCR6000WEA2R	430(16.9")W×262(10.3")(345(13.6"))H×550(21.7")(620(24.4"))Dmm	42 kg 92.6 lb
PCR6000WEA2	430(16.9")W×262(10.3")(345(13.6"))H×550(21.7")(620(24.4"))Dmm	43 kg 94.8 lb
PCR12000WEA2R	430(16.9")W×389(15.3")(475(18.7"))H×550(21.7")(620(24.4"))Dmm	66 kg 145.5 lb
PCR12000WEA2	430(16.9")W×389(15.3")(475(18.7"))H×550(21.7")(620(24.4"))Dmm	65 kg 143.3 lb
PCR18000WEA2R	430(16.9")(445(17.5"))W×690(27.2")(785(30.9"))H×550(21.7")(660(26"))Dmm	120 kg 264.6 lb
PCR18000WEA2	430(16.9")(445(17.5"))W×690(27.2")(785(30.9"))H×550(21.7")(660(26"))Dmm	120 kg 264.6 lb
PCR24000WEA2R	430(16.9")(445(17.5"))W×690(27.2")(785(30.9"))H×550(21.7")(660(26"))Dmm	130 kg 286.6 lb
PCR24000WEA2	430(16.9")(445(17.5"))W×690(27.2")(785(30.9"))H×550(21.7")(660(26"))Dmm	130 kg 286.6 lb
PCR30000WEA2R	430(16.9")(445(17.5"))W×944(37.2")(1040(40.9"))H×550(21.7")(660(26"))Dmm	160 kg 352.7 lb
PCR30000WEA2	430(16.9")(445(17.5"))W×944(37.2")(1040(40.9"))H×550(21.7")(660(26"))Dmm	160 kg 352.7 lb
PCR36000WEA2R	430(16.9")(445(17.5"))W×944(37.2")(1040(40.9"))H×550(21.7")(660(26"))Dmm	180 kg 396.8 lb
PCR36000WEA2	430(16.9")(445(17.5"))W×944(37.2")(1040(40.9"))H×550(21.7")(660(26"))Dmm	170 kg 374.8 lb
