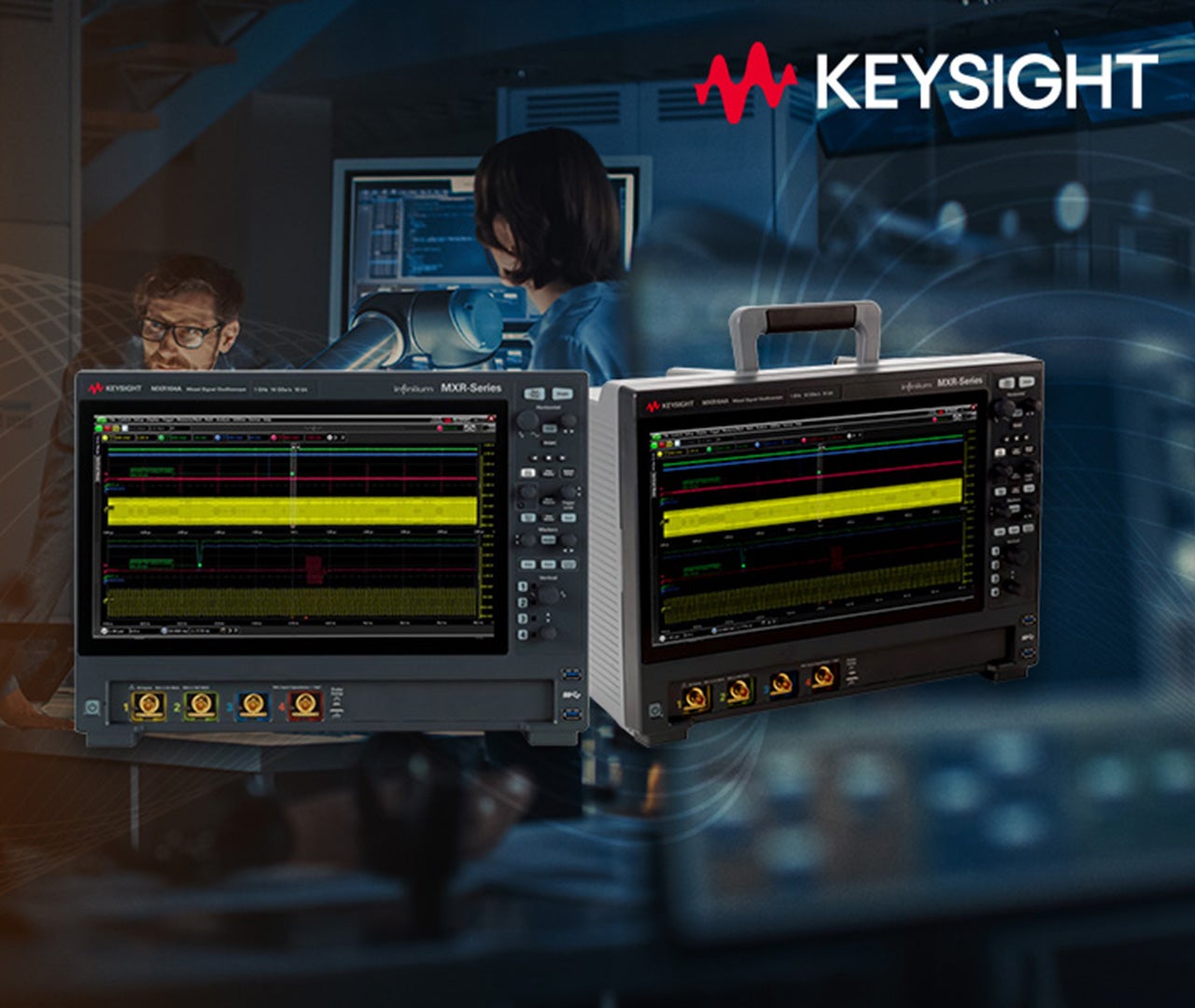

Keysight Infiniium MXR-Series Real-Time Oscilloscopes

500 MHz to 6 GHz on all 8 channels, 8 instruments integrated in one, hardware accelerated plotting, and fully upgradeable.

RENT / BUY NOW

Meet the Keysight Infiniium MXR-Series Oscilloscope

The Keysight Infiniium MXR-Series oscilloscopes are your window into the intricate interactions of complex designs. Offering illuminating views of all your crucial signals, the MXR-Series helps you go from symptom to root cause to resolution in minutes instead of hours. Leveraging the same hardware acceleration ASIC as the Infiniium UXR-Series, the MXR-Series accelerates eye plots and triggering with the excellent signal integrity that you've come to expect from Keysight. The MXR-Series also lets you future-proof your budget because it is fully upgradeable, including the number of channels and bandwidth. Buy what you need today and add more to your MXR-Series oscilloscope later.

Highlights

Faster test speeds than ever before with ASICs from the Infiniium UXR-Series
Accurate measurements with effective number of bits (ENOB) up to 9.0, noise as low as 43 µV
8-in-1 instrument integration: oscilloscope, logic analyzer, protocol analyzer, DVM, counter, real-time spectrum analyzer, bode plotter, and waveform generator in one unit
Full HD 1920 x 1080 resolution on a 15.6-inch display that can be extended or duplicated to a large monitor

Key Specifications

Bandwidth: 0.5 - 6 GHz
Analog Channels: 4 or 8, upgradeable
Sampling Rate: 16 GSa/s
Standard Memory: 200 Mpts/ch
Waveform Update Rate: >200,000 wfms/sec

Rent, Buy New, or Buy Used

Keysight Technologies MXR054A

Infiniium MXR Real-Time Oscilloscope; 4 Channel, 16 GSa/s, 500 MHz

Keysight Technologies MXR058A

Infiniium MXR-Series Real-Time Oscilloscope; 8 Channel, 16 GSa/s, 500 MHz

Keysight Technologies MXR104Az

Infiniium MXR-Series Real-Time Oscilloscope; 4 Channel, 16 GSa/s, 1 GHz

Keysight Technologies MXR108A

Infiniium MXR-Series Real-Time Oscilloscope; 8 Channel, 16 GSa/s, 1 GHz

Maximize Your Memory with the Keysight Infiniium MXR

Buy a New MXR, Get 1.6 Gpts of Flexible Memory for FREE

As your requirements for capturing longer signals increase, so does your need for deeper memory. However, your scope does not always come with all the memory you need. For a limited time, you can get 1.6 Gpts of combined flexible memory for FREE (a $14,000 value) when you purchase a new Infiniium MXR oscilloscope.

VIEW OFFER
