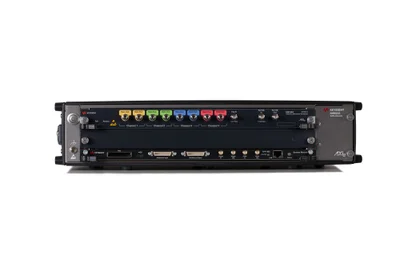

Keysight Technologies M8196A

The Keysight M8196A 92 GSa/s Arbitrary Waveform Generator has the highest combination of speed, bandwidth and channel density. It includes 92 GSa/s sample rate supporting signals up to 64 GBaud on 4 channels in a 1-slot AXIe module - simultaneously.

Key Features:

•  High channel density: 1, 2 or 4 channels per AXIe module
•  Built-in frequency and phase response calibration for clean output signals
• 32 GHz analog bandwidth
• Amplitude up to 1 Vpp(se) (2 Vpp(diff.), voltage window -1.0 to +2.5 V
• 512 kSa of waveform memory per channel
• Transition times < 9 ps (20% to 80%), with frequency response compensation
• Sample rate up to 92 GSa/s, 8-bit vertical resolution
• 32 GHz analog bandwidth
• Amplitude up to 1 Vpp(se) (2 Vpp(diff.), voltage window -1.0 to +2.5 V
• Supporting signals up to 64 GBaud and beyond
• 512 kSa of waveform memory per channel
• Ultra-low intrinsic jitter
• Transition times < 9 ps (20% to 80%), with frequency response compensation
• Multi-functions with M8070A System Software for M8000 Series BER Test Solutions
