ZA2-class LCR Meter, 1 MHz

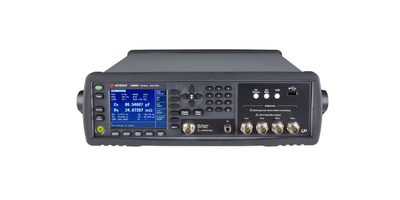

The Keysight E4980BL precision LCR meter is an industry-standard LCR meter that combines accuracy, speed, and versatility for a wide range of component measurements. The available frequency upgrades provide a strong investment option and asset utilization.
The E4980BL is an essential tool for general R&D and manufacturing tests of components and materials, offering fast measurement speed and exceptional performance across both low and high-impedance ranges.
The versatile LAN, USB, and GPIB PC connectivity enhance your design and test productivity. For materials measurements, the E4980BL paired with the Keysight N1500A-005/006 materials measurement suite simplifies the entire process, from fixture setup to report generation.
| KEY FEATURES |
|
| Frequency | 20 Hz to 300 kHz/500 kHz/1 MHz, with four-digit resolution in any range |
| Basic Accuracy | 0.05% basic accuracy with superior measurement repeatability at low and high impedance |
| More Features | 100 uV to 2 Vrms; 1 uA to 20 mA variable test signal
DC bias 1.5 / 2 V
auto-level control
DC resistance
201 points list measurement sweep
versatile PC connectivity (LAN, USB, and GPIB)
frequency upgradability
|
| SPECIFICATIONS |
|
| Model: E4980BL |
|
| Feature | Parameter |
| Maximum Frequency | 1 MHz |
| Type | Benchtop |
| Target DUT | General-purpose device, Material |
| Rated Voltage | 100 − 240 VA |
| Voltage Range | 90 – 264 VAC |
| Rated Frequency | 50 / 60 Hz |
| Frequency Range | 47 − 63 Hz |
| Power Consumption | Max. 150 VA |
| SPECIFICATIONS |
|
| Model Overview |
|
| Model Number and Option | Frequency Range |
| E4980B | 20 Hz to 2 MHz |
| E4980BL-102 | 20 Hz to 1 MHz |
| E4980BL-052 | 20 Hz to 500 kHz |
| E4980BL-032 | 20 Hz to 300 kHz |
NOTE:
The E4980B is the model number of the 20 Hz to 2 MHz frequency range LCR meter. The E4980BL is the model number of the 20 Hz to 300 kHz, 500 kHz or 1 MHz frequency range LCR meter.
Please see the E4980B/E4980BL Configuration Guide (Resources Tab) for more details.
