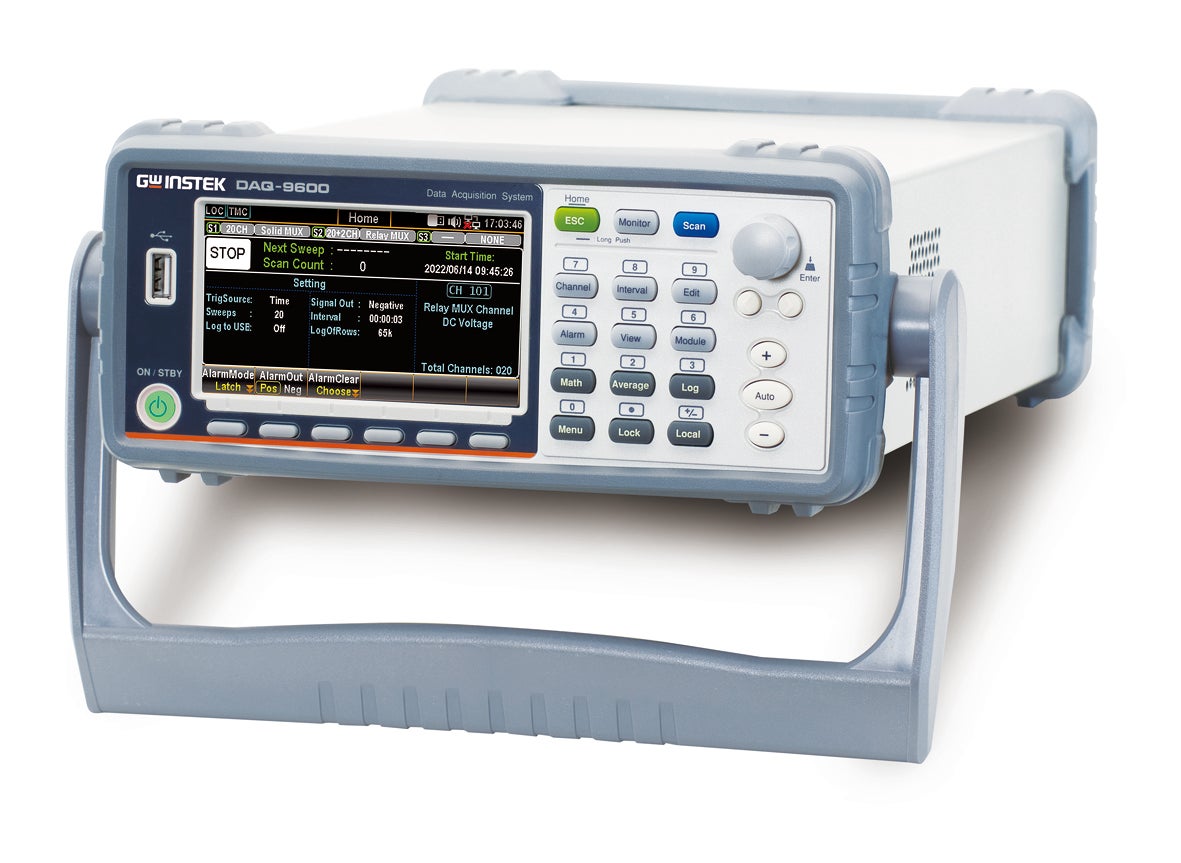

The DAQ-9600 data acquisition system is a modularized data acquisition system with high flexibility and higher performance. The mainframe is equipped with 3 module slots and a built-in precision 6 1/2 digital DMM is the core of its test and measurement. 5 modules are available to meet different measurement needs.
For the research and development of analyzing product characteristics or the production and manufacturing of system testing or fault diagnosis, a data acquisition system with flexibility and high performance can effectively fulfill different measurement requirements by expansion and change that make the overall test simpler, faster and more reliable.
The modular structure of the DAQ-9600 provides 3 module slots and 5 optional modules, including general-purpose modules (DAQ-900/ DAQ-901), multi-function module (DAQ-903), matrix module (DAQ-904) and high-voltage and high-current module (DAQ-909).
Users can combine and match arbitrarily according to the measurement needs. Since the DMM is built-in, it will not take up the slot space for maximum flexibility to expand channels to 60 two-wire channels or 120 single-ended channels or 96 matrix cross-points.
Key Features:
- Large 4.3” TFT color display
- 3-slot mainframe with built-in 6 ½ digit DMM
- Basic 0.0035% DCV accuracy
- 5 selectable switch modules
- Up to 450 channels/s scan rate
- Up to 100 kilo points internal memory
- Measures and converts 14 different input signals:
- Temperature with thermocouple, RTDs and thermistor;
- dc/ac volts; 2 and 4-wire resistance;
- frequency and period;
- dc/ac current and capacitance;
- direct strain and bridge strain
- Commands compatible with the DAQ970A
- USB storage supports copy/log data in standalone operation
- Interfaces: Digit I/O, LAN, USB host/device and mini GPIB (optional)
- Free PC software DAQ-Data logger, allows easy configuration and control of test
