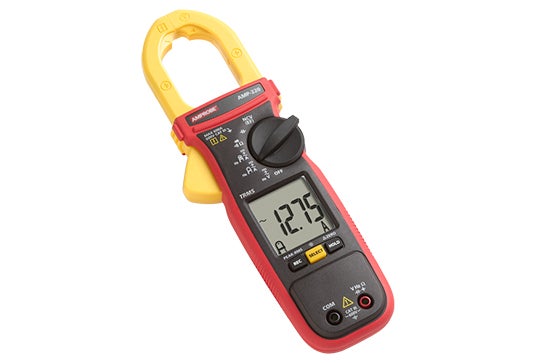

With a full range of AC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-210 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today’s complex electrical environments.
The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).
| Key Features |
| Measures AC Current to 600 A and AC/DC Voltage to 600 V |
| Features True-RMS sensing for accurate voltage measurements in noisy electrical environments |
| Amp-Tip delivers precise low AC current measurements – 0 to 60 A |
| Includes a low pass filter to accurately measure voltage and current on variable frequency drives |
| Capacitance measurement, continuity beeper and diode test |
| Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils |
| Offers data hold and relative zero for quick analysis |
| Maximizes battery life with auto power off and low battery indicator |
| Backlit display for easy measurement viewing in bright and dim environments |
| Accommodates conductors up to 1.18 in (30 mm) |
| CAT III 600 V safety rated |
| Specifications |
|
|
AMP-200 Series
TRMS Clamp Meters
|
|
|
| Model Overview |
|
|
| Model | AMP-210 | AMP-220 |
| Safety Rating | CAT III 600 V | CAT III 600 V |
| Voltage | Up to 600 V AC/DC | Up to 600 V AC/DC |
| AC Current | Up to 600 A | Up to 600 A |
| DC Current | -- | Up to 600 A |
| Frequency | 5.00 to 999.9 Hz | 5.00 to 999.9 Hz |
| Resistance | Up to 60.00 kΩ | Up to 60.00 kΩ |
| Capacitance | Up to 2500 µF | Up to 2500 µF |
| Specifications |
|
AMP-200 Series
TRMS Clamp Meters
|
|
| Model Overview |
|
| Model | Description |
| AMP-210 | AC Clamp Meter Electrical |
| AMP-220 | AC/DC Clamp Meter Electrical |
