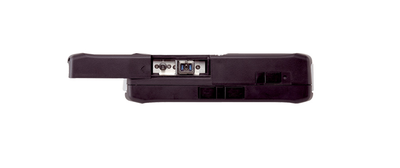

Anritsu MU909014C

MT9090A with MU909014/15 Overview There are many handheld OTDRs on the market that appear to be a good value until they are put into action and the user quickly finds out that they lack the performance needed to install and maintain today’s networks. The new MU909014/15 µOTDR Module series for the MT9090A Network Master™ platform from Anritsu finally addresses this need by providing all of the features and performance required for installation and maintenance of optical fibers in a compact, modular test set. The MT9090A represents an unmatched level of value and ease of use, while not compromising performance. Data sampling of 2 centimeters, dead zones of 0.8-meter and dynamic range up to 38 dB ensure accurate and complete fiber evaluation of any network type – premise to access, metro to core…including PON-based FTTx networks featuring up to a 1 × 64 split. The MT9090A with MU909014/15 module represents a new era in optical fiber testing!

Key Features:

• Tri-wavelength OTDR for both installation and maintenance (1310 nm/1550 nm plus filtered 1650 nm or 1625 nm)
• Built-in PON Power Meter, Loss Test Set and Light Source functions
• High-end OTDR performance in a pocket-size package with unique battery operation
• “Fiber Visualizer” mode simplifies operation, no OTDR knowledge needed
• Complete PON testing through splitters up to 1 × 64
• Bluetooth, WLAN and Ethernet connectivity
