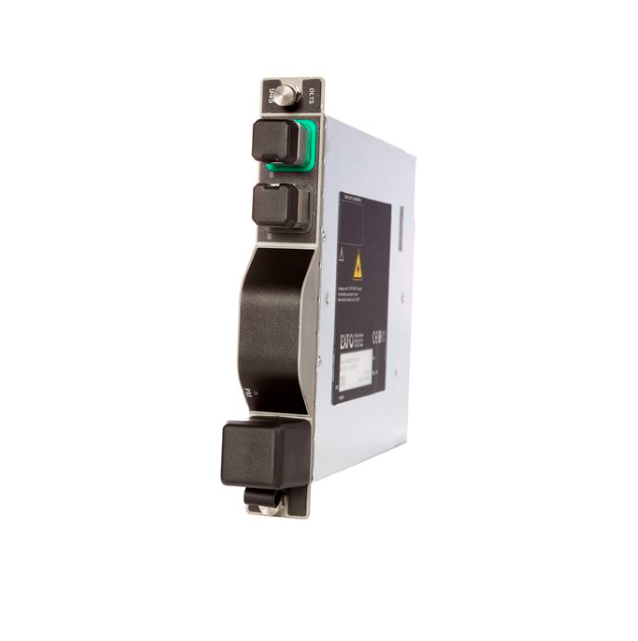

The FTBx-940/945 Fiber Certifier OLTS has been specifically designed to certify fiber cabling in data centers and enterprise networks. The unit’s intuitive Windows-like user interface ensures a minimal learning curve. The FTBx-940/945 Fiber Certifier offers icon-based functions, onboard assistance and onboard professional reporting. The FTBx-940/945 Fiber Certifier lets you certify to both cabling and application standards simultaneously. You can therefore certify the cabling (i.e., the physical quality of the fiber and its components, such as splices and connectors), as well as the application that the fiber can carry; for instance, IEEE or Fibre Channel.
The FTBx-940/945 Fiber Certifier comes with onboard PDF reporting to convert multiple measurements into a single professional report in a format recognized by industry standards. The reporting includes clear pass/fail certification status against the multiple standards tested, and a summary of the measurements with margins, anomalies, test-cord references and verification. This feature serves as a natural complement to our FastReporter 2 PC-based software designed for batch processing of high-count fiber and multiple measurement combinations (e.g., connector certification, loss and OTDR).
Key Features:
- SM1 = Singlemode OLTS 1310/1550 nm
- Leading FasTesT performances: certifies two fibers at two wavelengths in 3 seconds
- Onboard assistant and diagnosis to reduce the risk of reference errors and negative loss
- Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC
- 100% automated fiber inspection: one-step process with pass/fail analysis at both ends of the fiber
- Certifies to multiple industry standards simultaneously
- Onboard professional PDF reporting
- Optional Optical Return Loss measure (FTBx-945)
- Batch processing of results with FastReporter 2 software
- Best-in-class single-mode distance range of 200 km
- EXFO Connect-ready
