The InfiniiVision 3000 X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. The 3000 X-Series innovation starts with the industry’s only 6-instruments in-1 integration. The industry-leading one million waveforms per second update rate is 20 times faster than the competition to display the most signal detail. The 3000 X-Series provides maximum investment protection with fully-upgradable 6-instruments-in-1; even bandwidth is upgradable.
For higher performance applications, Electro Rent recommends the EXR Series from Keysight.
Key Features:
- One million waveforms per second update rate
- MegaZoom IV smart memory technology
- Large 8.5-inch WVGA display with Touchscreen
- Standard segmented memory
- 6- instruments-in-1 (oscilloscope, digital channels, built-in 20 MHz function/ arbitrary waveform generator with modulation, integrated digital voltmeter frequency counter and protocol analyzer)
- Fully upgradable oscilloscope, including bandwidth to 1 GHz
- Industry’s leading application solutions
| Specifications | |

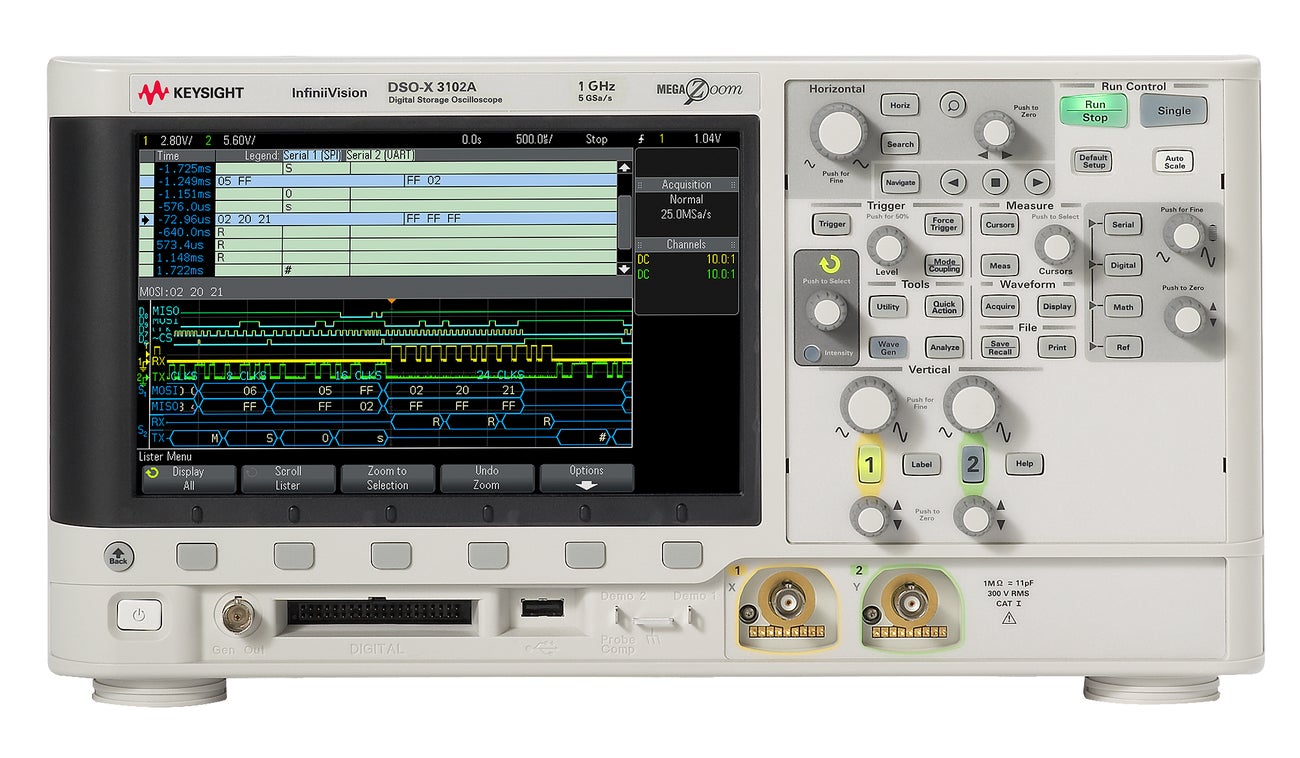

| DSOX3102A Digital Oscilloscope | |
| Features | Parameters |
| Bandwidth | 1 GHz |
| Analog Channels | 2 |
| Max Memory Depth | 2 Mpts standard, 4 Mpts optional |
| Max Sample Rate | 5 GSa/s |
| Display Size | n/a |
| Waveform Update Rate | n/a |
| ADC Bits | 8 bits |
| Operating System | Embedded |
| Probes | Accessories |
| Differential & single ended | LAN and GPIB modules |
| Active & passive | Carrying case |
| Voltage & current | Rackmount kit |
