Support fast transfer speeds for high data throughput and easily attach to low-profile PCs.

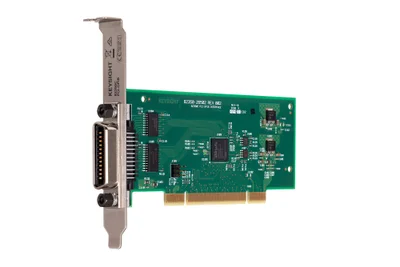

The 82350C PCI-GPIB interface card converts any PCI bus computer into an instrumentation control and data acquisition system. It comes with direct PCI computer connection, and transaction overhead is minimized for the best overall operating performance.
The 82350C interface card is fully compatible with IEEE-488 control and communication standard, decouples GPIB transfers from PCI bus transfers. Buffering provides I/O and system performance that is superior to direct memory access (DMA). The hardware is software configurable and compatible with the plug-and-play standard for easy installation.
The GPIB interface card offers high flexibility to plug into standard or low-profile PC with a bracket change.
NOTE: When using 82350C with low-profile bracket, attach the 10834A GPIB to-GPIB adaptor to increase clearance for GPIB cable or other connector.
| Key Features |
| PCI IEEE-488 interface for PCs |
| Transfer rates up to 900 KB/s |
| Dual processor support on the latest Windows operating system |
| Benefits |
| Maximum GPIB throughput for all configurations |
| Standard and low-profile brackets allow flexible connection |
| Specifications |
|
|
| PCI High-Performance GPIB Interface Card |
|
|
| Model Overview |
|
|
| Model | Description | Recommended Use |
| 82350B | High Performance PCI-GPIB Interface Card | Maximum GPIB throughput for all configurations
Adding GPIB connection for PCI-based PCs or workstations
|
| 82350C | High Performance PCI-GPIB Interface Card | Maximum GPIB throughput for all configurations
Standard and low-profile brackets allow flexible connection
|
| 82351A | High Performance PCIe-GPIB Interface Card | Bandwidth-intense test applications
Adding GPIB connection for PCIe-based PCs or workstations
|
| 82351B | High Performance PCIe/GPIB card Interface Card | Bandwidth-intensive test applications
Standard and low-profile brackets allow flexible connection
|
