Keysight Technologies E5007A

Configure Unit

Available to Buy Online

View Configurations

Software upgrade; Impedance analysis for E5061B-3L5 LF-RF

Model

E5007A

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

LF-RF NA Option (5 Hz to 500 MHz/1.5 GHz/3 GHz)

E5061B-3L3/3L4/3L5 + 005 Impedance Analysis Option

NA plus ZA in one box

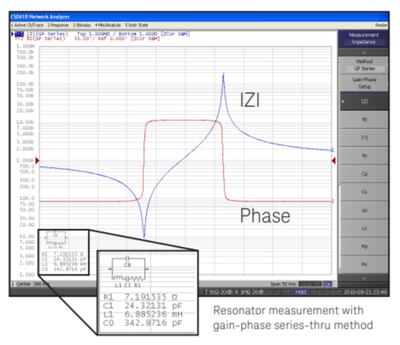

The E5061B-005 provides the impedance analysis (ZA) firmware for the E5061B-3L3/3L4/3L5 LF-RF network analyzer. This option enables the analyzer to measure impedance parameters of electronic components such as capacitors, inductors, and resonators. The combination of NA and ZA capabilities further enhances the analyzer’s versatility as a general R&D tool. Basic ZA functionalities including fixture compensation and equivalent circuit analysis are supported by the firmware. The DC biased impedance measurement is possible with the built-in DC bias source provided by the E5061B-3L3/3L4/3L51.
