Keysight Technologies MX0106A

Configure Unit

Available to Buy Online

View Configurations

InfiniiMax Differential Solder-in Head; 23 GHz

Model

MX0106A

Manufacturer

Keysight Technologies

Configured models contain the following attributes:

Oscilloscope Probes

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

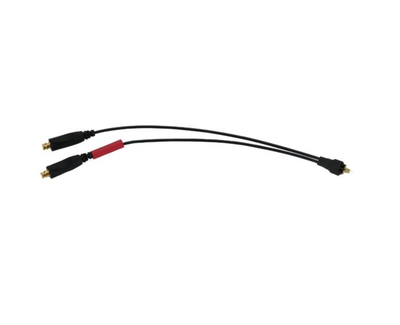

The MX0106A is a solder-in head allowing a soldered connection into the target for reliable hands-free connection. This probe head provides 23 GHz bandwidth and low capacitive loading.

The MX0106A is a solder-in head allowing a soldered connection into the target for reliable hands-free connection. This probe configuration provides 23 GHz bandwidth and low capacitive loading for measuring both single-ended and differential signals. It utilizes strong 7 mil (or optional 4 mil) diameter nickel wires, which allow connection to very small, fine pitch targets, and the lead wires are replaceable. The solder-in head allows for wide operating temperature of -55 to +150 °C.

Key Features

23 GHz bandwidth when used with InfiniiMax MX0023A RC probe amp

Very low probe loading, differential input capacitance of 170 fF

Reliable semi-permanent connection

6.4" coax cable length for reaching into tight spaces such as a DIMM socket

Variable span of leads from 0.2 - 3.3 mm (8 to 130 mils)

Wide operating temperature range of -55 to +150 °C.
