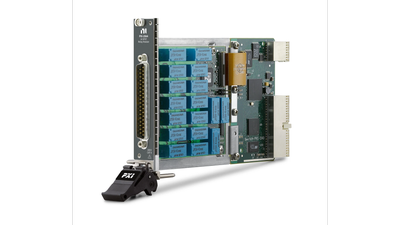

NI PXI-2564

16-Channel, 5 A, SPST PXI Relay Module

Model

PXI-2564

Manufacturer

Configured models contain the following attributes:

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

16-Channel, 5 A, SPST PXI Relay Module.

The PXI-2564 is a general-purpose switch module that features independent single-pole single-throw (SPST) Form A armature relays.

Each relay is nonlatching with very low on-resistance and low thermal offsets. The PXI-2564 is fully software programmable. With an efficient coupling of voltage/current capability and relay density, this switch module is ideal for switching medium- to high-power signals and loads in military, automotive, or automated test applications.

SPECIFICATIONS
Model: PXI-2564
Feature	Parameter
Scan Rate	45 cycles/s
Bus Connector	PXI Hybrid
Maximum Switching Current DC	5 A
Maximum Switching Voltage DC	150 V
Relay Configuration	SPST (open)
Switch Bandwidth	10 MHz
Number of Relays	16
