NI PXIe-5820
Model
PXIe-5820Manufacturer
NIConfigured models contain the following attributes:
Let us help you with your exact configuration
Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.
You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.
Key Specs
Please refer to the Resources section for Datasheets or see the Product Overview.
If you would like to know more, please get in touch and one of our team will be happy to help.
Product Overview

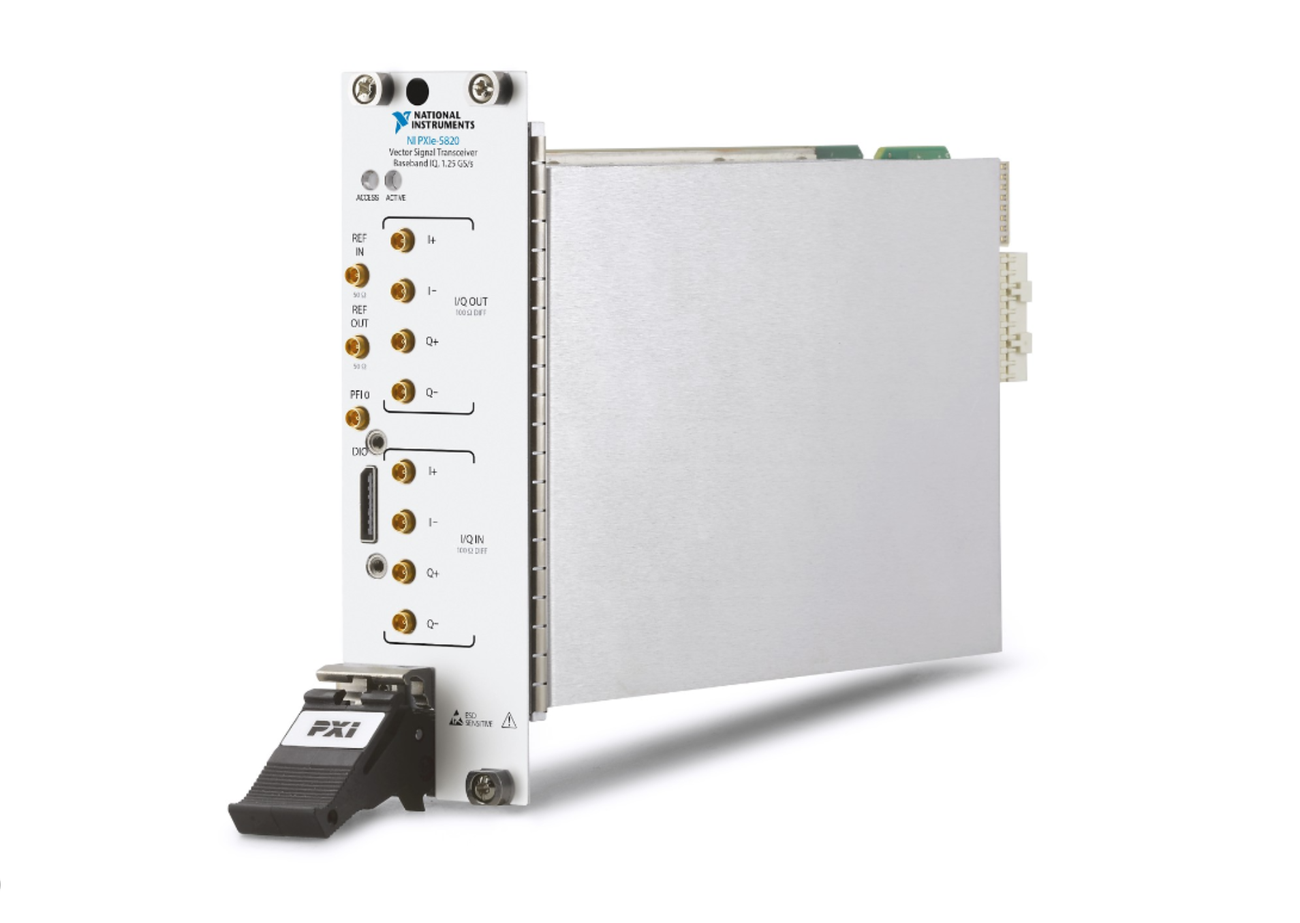

The PXIe‑5820 is the baseband model of the second-generation vector signal transceiver (VST) with 1 GHz of complex I/Q bandwidth. It combines a wideband I/Q digitizer, wideband I/Q arbitrary waveform generator, and high-performance user-programmable FPGA in a single 2-slot PXI Express module. You can use the VST for a variety of applications including baseband I/Q test of wireless and cellular chipsets; envelope tracking of digitally predistorted waveforms for power amplifiers; and the generation and analysis of new wireless standards such as 5G, 802.11ax, and LTE-Advanced Pro.
Combines a vector signal generator and vector signal analyzer with FPGA-based, real-time signal processing and control.
The PXI Vector Signal Transceiver (VST) combines the flexibility of a software defined radio architecture and RF instrument class performance. You can use the VST to test a variety of cellular and wireless standards, and you can easily expand the small PXI Express form factor to support multiple input, multiple output (MIMO) configurations. The VST software is built on LabVIEW FPGA, and features several starting points for your application including application IP, reference designs, examples, and LabVIEW sample projects.
| Key VST Features |
| Generate and acquire wide instantaneous bandwidth from baseband through RF in one instrument for test and measurement |
| Ensure test coverage for new and legacy wireless standards, including 5G NR and all Wi-Fi bands |
| Stream high-speed data to and from the instrument through front panel Digital I/O |
| Achieve better than -50dB EVM performance for higher order modulation schemes, such as Wi-Fi 6 |
| Synchronize multiple VSTs with phase coherent generation and acquisition for true MIMO applications. |
| Utilize I/Q baseband signals for wideband testing and envelope tracking applications |
| Get maximum test speed and customization with access to onboard FPGA |
| Take advantage of easy to use software with soft front panels for interactive control and extensive measurement API for rapid test automation |
| Specifications | ||||||
PXI Vector Signal Transceiver | ||||||
| Model Overview | ||||||
Model Part Number | RF Generator Instantaneous Bandwidth | RF Generator Frequency Range | RF Analyzer Frequency Range | RF Analyzer Instantaneous Bandwidth | Generator Tuning Time (Typical) | I/O Type |
PXIe-5820 783967-01 | 1 GHz | 0 MHz to 500 MHz | 0 Hz to 500 MHz | 1 GHz | 0.38ms | Baseband |
PXIe-5830 787047-01 | 1 GHz | 5 GHz to 12 GHz | 5 GHz to 12 GHz | 1 GHz | -- | RF |
|
786853-01 | 1 GHz | 5 GHz to 21 GHz | 5 GHz to 21 GHz | 1 GHz | -- | RF |
|
786856-01 | 1 GHz | 5 GHz to 31.3 GHz 37 GHz to 44 GHz | 5 GHz to 44 GHz | 1 GHz | -- | RF mmWave |
PXIe-5832 787728-01 | 1 GHz | 5 GHz to 44 GHz | 5 GHz to 44 GHz | 1 GHz | -- | RF mmWave |
|
788843-01 | -- | -- | 9 kHz to 6 GHz | 1 GHz | 380 μs | RF |
|
788842-01 | 1 GHz | 9 kHz to 6 GHz | -- | -- | 380 μs | RF |
|
788845-01 | -- | -- | 9 kHz to 6 GHz | 1 GHz | 175 μs | RF |
|
788844-01 | 1 GHz | 9 kHz to 6 GHz | -- | -- | 175 μs | RF |
|
786982-01 | 1 GHz | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 1 GHz | 380 μs | RF |
|
785832-01 | 1 GHz | 9 kHz to 6 GHz | 9 kHz to 6 GHz | 1 GHz | 175 μs | RF |
|
788565-03 | 1 GHz | 50 MHz to 8 GHz | 50 MHz to 8 GHz | 1 GHz | 230 μs | RF |
|
788565-02 | 2 GHz | 50 MHz to 12 GHz | 50 MHz to 12 GHz | 2 GHz | 230 μs | RF |
|
788565-01 | 2 GHz | 50 MHz to 23 GHz | 50 MHz to 23 GHz | 2 GHz | 230 μs | RF |
