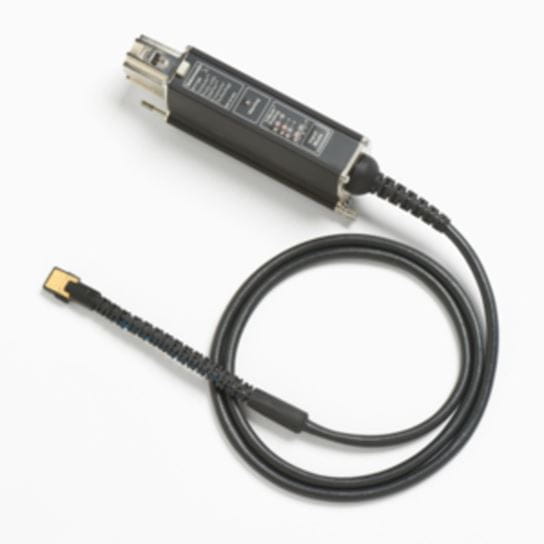

The P7700 Series TriMode probes provide the highest probe fidelity available for real-time oscilloscopes. In addition, with connectivity innovations such as solder down tips with the probe’s input buffer mounted only a few millimeters from the end of the tip, the P7700 series probes provide unmatched usability for connecting to today’s most challenging electronic designs.
| Specifications |
|
|
|
|
|
|
|
| TriMode Probe Family |
|
|
|
|
|
|
|
| Model | P7720 | P7720 | P7720 | P7716 | P7716 | P7713 | P7708 |
| P77STFLXA
P77STCABL
P77C292MM
| P77STFLXB | P77BRWSR | P77STFLXA
P77STCABL
P77C292MM
P77BRWSR
| P77STFLXB | P77STFLXA
P77STFLXB
P77STCABL
P77C292MM
P77BRWSR
| P77STFLXA
P77STFLXB
P77STCABL
P77C292MM
P77BRWSR
|
| Bandwidth (typical) | 20 GHz * | 15 GHz | 16 GHz | 16 GHz | 15 GHz | 13 GHz | 8 GHz |
| Rise Time (10-90%) | 27 ps ** | 36 ps | 32 ps | 32 ps | 36 ps | 40 ps | 55 ps |
| Rise Time (20-80%) | 18 ps | 24 ps | 24 ps | 24 ps | 24 ps | 28 ps | 35 ps |
* Differential and single ended modes only. Bandwidth is 19 GHz in the common mode setting.
** Rise times in common mode setting: 29 ps (10 - 90%), 19 ps (20 - 80%).
| Specifications |
|
| P7700 Series |
|
| Recommended Accessories |
|
| Model Number | Description |
| P77STFLXA | Active, solder-in tip with TekFlex connector technology, 20 GHz (5 tips/kit)* |
| P77STFLXB | Active, 75 Ω solder-in tip with TekFlex connector technology for DDR4/LPDDR4 electrical validation, 15 GHz (5 tips/kit)** |
| P77STCABL | Active, coaxial cable based, solder-in tip with TekFlex connector technology, 20 GHz |
| P77BRWSR | Browser accessory with TekFlex connector technology, 16 GHz |
| P77C292MM | SMA Coaxial adapter with TekFlex connector technology, 20 GHz |
| 90010302 | DC probe calibration fixture |
| P77DESKEW | Deskew fixture*** |
| 407-6019-xx | Probe adapter to attach the browser to the PPM203B articulated arm/positioner |
* Each probe ships with three of these solder-in tips as standard accessories.
**For use with Nexus Technology XH Series Interposers.
***Deskew fixture instructions can be downloaded
