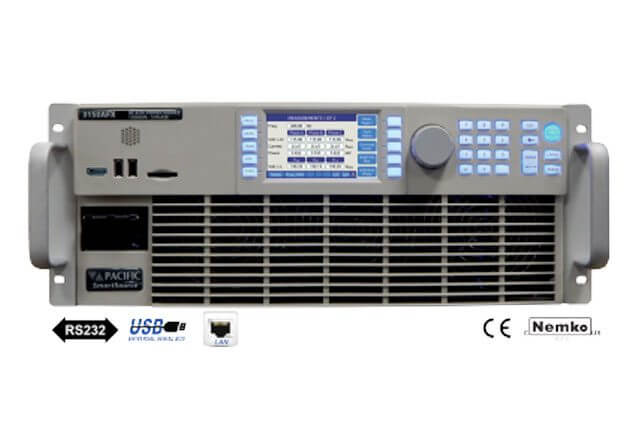

Pacific Power 3150AFX-2L

Power Supply Source; AC 3 Phase, 15kVA

Model

3150AFX-2L

Product Family

Power Supplies / Electronic Loads

Manufacturer

Pacific Power

Configured models contain the following attributes:

Power Supplies / Electronic LoadsAC Power Supplies400V1/315000W3

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' and we’ll contact you and quote for your exact need.

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Key Specs

Indicates attributes available at part level. See Configurations tab for part detail.

Attribute	Value
Maximum Voltage	400V
Phases	1/3
Maximum Power	15000W
Channel/Port Count	3

Product Overview

The AFX Series is a family of high power, single, split and three phase, AC, DC and AC+DC output capable Power Sources. Available models range from 6 kVA to 90 kVA with available configurations to 150kVA. Using a modern user interface for ease of use, the AFX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications.

The AFX Series consists of a range of High Power Switching AC, DC and AC+DC capable Power Sources covering a power range from 6 kVA to 90 kVA and higher if needed. All AFX models offer single, split and three phase output configurations. The AFX is a state-of-the-art design using the latest digital power conversion technologies. Power density is among the highest in the industry allowing 15 kVA/kW of power in only 4U (7″) of rack space.

Key Features

AC Output, DC Output, AC+DC Output

DC, 15 to 1,200 Hz Frequency Range full power, 1 to 3000Hz Frequency Range extension

Single, Constant Power mode 333V L-N/576V L-L/425Vdc voltage range offers wider operating range

Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor

Waveform capture scope function for voltage and current on all phases

Harmonic measurement for voltage and current on all phases

Extensive Analog and Digital I/O for ATE and system integration

Available PPSC Manager Windows graphical user interface

Also compatible with legacy UPC Studio graphical user interface

1, 2 or 3 Phase Switch Selectable Output from front panel or bus command

Sine, Square, Triangle, THD and Arbitrary waveforms

Available in 208-240V or 380-480V 3 Phase AC input with Active PFC

200 stored programs for both static and dynamic Transient Testing

LIST, PULSE and STEP Mode Transients

Continuous Self Calibration (CSC)

Precision Voltage Programming – 0.02% with CSC engaged in AC and DC modes

Standard Models in Power Levels from 6 kVA to 150 kVA. Contact us for higher power.

Standard RS-232, USB, GPIB and Ethernet Interface with SCPI compatibility

LXI Compliant LAN/Ethernet with embedded web server

IVI Instruments drivers

CE (EMC/Safety) and Nemko (Safety) Marks

POWER FLEX upgrade program allows units to be retrofitted for higher power output

Specifications
AFX Series – Programmable AC and DC Power Source
Features	Parameters
Output Frequency	DC, 15 to 1,200 Hz. Full Power 1 to 3,000 Hz with some restrictions
Output Modes	AC DC AC+DC DC+AC
Phase Output Modes	Single (1) Split (2) Three Phase (3)
AC Voltage Range	0 – 300 Vrms L-N / 0-520 Vrms L-L Constant Power Mode (0-333 Vrms L-N / 0 – 576 Vrms L-L AC output available up to 9kVA per unit, 45-100Hz)
DC Voltage Range	0 – 425 Vdc Constant Power Mode

Specifications
AFX Series – Programmable AC and DC Power Source
Model Overview
Model	Rated Power (VA)	Output Form	Output Volts-Max (Vac/Vdc¹)	Output Amps/Phs (Aac/Adc²)	Input Power Form (3)	Height (U) (4)	Weight (Lbs./KG)
Bench or Rack Mount Models
360AFX	6000	1,2,3 Ø	333 (L-N) / 425	16.7 / 8.3	3Ø	4	112/51
390AFX	9000	1,2,3 Ø	333 (L-N) / 425	25.0 / 12.6	3Ø	4	112/51
3120AFX	12000	1,2,3 Ø	333 (L-N) / 425	33.3 / 16.7	3Ø	4	112/51
3150AFX	15000	1,2,3 Ø	333 (L-N) / 425	41.7 / 21.0	3Ø	4	112/51
Cabinet Systems
3180AFX	18000	1,2,3 Ø	333 (L-N) / 425	50.0 / 25.0	3Ø	15	320/146
3240AFX	24000	1,2,3 Ø	333 (L-N) / 425	66.7 / 33.4	3Ø	15	320/146
3300AFX	30000	1,2,3 Ø	333 (L-N) / 425	83.3 / 41.7	3Ø	15	320/146
3450AFX	45000	1,2,3 Ø	333 (L-N) / 425	125.0 / 62.5	3Ø	15	435/197
3600AFX	60000	1,2,3 Ø	333 (L-N) / 425	166.7 / 83.3	3Ø	28	550/249
3750AFX	75000	1,2,3 Ø	333 (L-N) / 425	208.3 / 104.1	3Ø	28	665/302
3900AFX	90000	1,2,3 Ø	333 (L-N) / 425	250.0 / 125.0	3Ø	28	780/354

Notes:

All AFX models have a single voltage range with constant power profile. This eliminates the need for switching between a high and a low voltage range. If desired, a low voltage range can be simulated.
Maximum current ratings shown are available up to 120Vrms in AC mode and 238Vdc in DC mode. Voltage and Current follow constant power profile so higher current at lower voltage and lower current at higher voltage is available.
Three phase input: -2 Models: 208 to 240 VAC ±10% input range. -4 Models: 380 to 480 VAC ± 10% input range. All models has active power factor corrected AC inputs. Cabinet systems above 60kVA require 400/480Vac Input service. For 208Vac input requirements (-2 versions), contact factory.
Cabinet weights are approximate and vary with certain available cabinet configuration options.
Models 360AFX, 390AFX and 3120AFX can be upgraded to higher power levels using Pacific’s AFX POWER FLEX upgrade program. Cabinet models 3180AFX and 3240AFX can also by upgraded to higher power levels.
