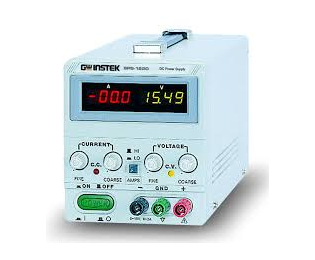

GW Instek SPS-1230

Configure Unit

Available to Buy Online

View Configurations

Switching D.C. Power Supply

Model

SPS-1230

Product Family

Power Supplies / Electronic Loads

Manufacturer

GW Instek

Configured models contain the following attributes:

Power Supplies / Electronic LoadsDC Power Supplies <50V

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

The SPS-Series is single output, 360W, switching DC power supplies. OVP protects the SPS-Series and their loads from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.

Key Features:

Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control

Specifications
MODEL	SPS-1230	SPS-1820	SPS-2415	SPS-3610	SPS-606
OUTPUT
Voltage	0~12V	0~18V	0~24V	0~36V	0~60V
Current	0~30A	0~20A	0~15A	0~10A	0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation	< 5mV	< 5mV	< 5mV	< 5mV	< 5mV
Load Regulation	< 5mV	< 5mV	< 5mV	< 5mV	< 5mV
Ripple & Noise	< 5mVrms, 100mVp-p 20Hz ~ 20MHz	< 5mVrms, 100mVp-p 20Hz ~ 20MHz	< 5mVrms, 100mVp-p 20Hz ~ 20MHz	< 5mVrms, 100mVp-p 20Hz ~ 20MHz	< 5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time	< 500μS ( 50% Load change, Minimum load 0.5A )	< 500μS ( 50% Load change, Minimum load 0.5A )	< 500μS ( 50% Load change, Minimum load 0.5A )	< 500μS ( 50% Load change, Minimum load 0.5A )	< 500μS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient	< 100 ppm/°C	< 100 ppm/°C	< 100 ppm/°C	< 100 ppm/°C	< 100 ppm/°C
Output Range	0 to rating voltage continuously adjustable	0 to rating voltage continuously adjustable	0 to rating voltage continuously adjustable	0 to rating voltage continuously adjustable	0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation	< 3mA	< 3mA	< 3mA	< 3mA	< 3mA
Load Regulation	< 3mA	< 3mA	< 3mA	< 3mA	< 3mA
Ripple Current	< 3mArms (SPS-606)	< 3mArms (SPS-606)	< 3mArms (SPS-606)	< 3mArms (SPS-606)	< 3mArms (SPS-606)
	< 5mArms (SPS-3610)	< 5mArms (SPS-3610)	< 5mArms (SPS-3610)	< 5mArms (SPS-3610)	< 5mArms (SPS-3610)
	< 10mArms (SPS-2415)	< 10mArms (SPS-2415)	< 10mArms (SPS-2415)	< 10mArms (SPS-2415)	< 10mArms (SPS-2415)
	< 10mArms (SPS-1820)	< 10mArms (SPS-1820)	< 10mArms (SPS-1820)	< 10mArms (SPS-1820)	< 10mArms (SPS-1820)
	< 30mArms (SPS-1230)	< 30mArms (SPS-1230)	< 30mArms (SPS-1230)	< 30mArms (SPS-1230)	< 30mArms (SPS-1230)
Output Range	0 to rating current continuously adjustable (Hi/Lo range switchable)	0 to rating current continuously adjustable (Hi/Lo range switchable)	0 to rating current continuously adjustable (Hi/Lo range switchable)	0 to rating current continuously adjustable (Hi/Lo range switchable)	0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type	3 1/2 Digit 0.39" LED Display	3 1/2 Digit 0.39" LED Display	3 1/2 Digit 0.39" LED Display	3 1/2 Digit 0.39" LED Display	3 1/2 Digit 0.39" LED Display
Accuracy	±( 0.5% of rdg + 2 digits )	±( 0.5% of rdg + 2 digits )	±( 0.5% of rdg + 2 digits )	±( 0.5% of rdg + 2 digits )	±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal	20MΩ or above (DC 500V)	20MΩ or above (DC 500V)	20MΩ or above (DC 500V)	20MΩ or above (DC 500V)	20MΩ or above (DC 500V)
Chassis and AC Cord	30MΩ or above (DC 500V)	30MΩ or above (DC 500V)	30MΩ or above (DC 500V)	30MΩ or above (DC 500V)	30MΩ or above (DC 500V)
POWER SOURCE	AC 115V/230V ±15%, 50/60Hz	AC 115V/230V ±15%, 50/60Hz	AC 115V/230V ±15%, 50/60Hz	AC 115V/230V ±15%, 50/60Hz	AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT	128(W) x 145(H) x 285(D)mm Approx. 3.2kg	128(W) x 145(H) x 285(D)mm Approx. 3.2kg	128(W) x 145(H) x 285(D)mm Approx. 3.2kg	128(W) x 145(H) x 285(D)mm Approx. 3.2kg	128(W) x 145(H) x 285(D)mm Approx. 3.2kg
