Keithley 2230-30-3

Configure Unit

Available to Buy Online

View Configurations

Programmable Power Supply; High Power, 3 Channel, 195 W, Two 30 V, 3 A Channels, One 5 V, 3 A Channel

Model

2230-30-3

Product Family

Power Supplies / Electronic Loads

Manufacturer

Keithley

Configured models contain the following attributes:

Power Supplies / Electronic LoadsDC Power Supplies <50V

Configurations

Key Specs

Product Overview

Resources

Let us help you with your exact configuration

Please use 'Get Quick Quote' or ‘Configure Unit’ and we’ll contact you and quote for your exact need.

Configure Unit

You can also get in touch, if you prefer, and our experts will be able to guide you with the right application and procurement solution for this product.

Product Overview

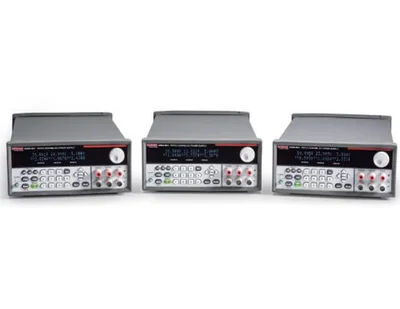

Series 2230 power supplies provide up to 375 W of power in a compact 2 U high, half-rack wide enclosure. The 2230-30-6 offers up to 6 A from two channels; the 2230-60-3 offers up to 60 V from two channels. Adjustable, independent, and isolated channels can test two single voltage devices or a multiple voltage device with one power supply.

Combine 30 V channels in series to increase voltage up to 60 V, or connect two or three channels in parallel to output as much as 15 A using the 2230-30-6.

Key Features

Choose from one 195 W model and two 375 W models

195 W model has two 30 V, 3 A channels and one 5 V, 3 A channel

375 W models have two 30 V, 6 A channels or two 60 V, 3 A channels and one 5 V, 3 A channel

All channels are independently controlled and are isolated to power a wide range of test setups

All channels have remote sensing so the programmed voltage is accurately applied to the load

Set and monitor output voltages with 0.03% basic accuracy and 1 mV resolution

Monitor load current with 0.1% basic accuracy and 1 mA resolution

Low noise, linear regulation with

Combine channels in series to output as high as 60 V and in parallel with two or three channels to create capacity as high as 15 A (2230-30-6)

Voltage and current outputs of three channels are displayed simultaneously for immediate observation of each output state

USB and RS-232 interfaces and rear panel connections for automated test convenience

Benefits
Control Noise with Independent Outputs	The 2230 power supplies can power circuits that are optically isolated or transformer-isolated from each other and have different reference points. The isolated channels eliminate the need for a second power supply for powering one of the isolated circuits. Additionally, each channel can be independently controlled and turned on or off at any time; control over each individual channel minimizes noise in the circuit.
Control Noise with Independent Outputs	Each 2230 channel offers 0.03% basic voltage accuracy and 1 mV resolution setting and measurement, ensuring that the programmed output is accurately applied to the output terminals. Plus, using remote sense leads for each channel compensates for and overcomes voltage drops due to resistances in the test leads, assuring that the programmed voltage is applied to the load.
Automation Made Easy	USB and RS-232 interfaces enable complete control of the 2230 power supplies from a PC. LabView and IVI drivers facilitate instrument control, data logging, and analysis. Series 2230 power supplies can be controlled in either a semi-automated or full-automated test system with these drivers or software packages such as MatLab.

Applications

Series 2230 Power Supplies are Ideal for Testing:

High power analog ICs

Automotive circuits

Telecom infrastructure circuits

LED driver circuitry

Wide Bandgap modules

Specifications
2230 Series High Power Programmable Power Supplies
Feature	Parameter
Communications	USB: Type A to B connector, USB 2.0, USBTMC compatible RS232: Baud Rates: 4800/9600/19,200/38,400/57,600/115,200
Rear-Panel Connectors	Output: 15-pin terminal block socket RS-232: DB-9 connector USB Device: Type B connector AC Power Input: 3-prong socket assembly with fuse
Display	Vacuum fluorescent display
Memory	36 setup memories
Output and Remote Sense	Removable 15-15-pin screw-terminal block carries the following signals: Output Channels: Duplicates the front-panel outputs Remote Sense Lines: Connections for remote sense for each channel
Floating Voltage Rating	Up to 400 V (DC + peak AC) between protective earth (safety ground) and any output terminal
Power Source	110 V AC Setting: 99 V_RMS to 132 V_RMS 108 V_RMS to 132 V_RMS (2230-30-6 and 2230-60-3 with 2230G-HRM installed) 220 V AC Setting: 198 VRMS to 264 VRMS Frequency: 50/60 Hz Power Consumption: 2230-30-3: 700 VAC; 2230-30-6, 2230-60-3: 1000 VAC
EMC	European Union: Conforms to European Union EMC directive USA: FCC, CFR Title 47, Part 15, Subpart B, Class A Australia: EMC Framework, demonstrated per Emission Standard AS/NZS 2064 (industrial, scientific, and medical equipment)
Safety	European Union: Conforms to Low Voltage Directive USA: NRTL listed to UL61010-1-2004 Canada: CAN/CSA C22.2 No. 61010-1 2004
Dimensions (H x W x D)	With boot: 104.2 mm × 225.3 mm × 481.1 mm 4.10 in. × 8.87 in. × 18.94 in. Without boot: 88.2 mm × 214.5 mm × 456.6 mm 3.47 in. × 8.44 in. × 17.98 in.
Shipping Weight	2230-30-3: 12.3 kg / 27 lb. 2230-30-6: 13.8 kg / 30 lb. 2230-60-3: 13.8 kg / 30 lb.
Net Weight	2230-30-3: 9.6 kg / 21 lb.) 2230-30-6: 11.1 kg / 24 lb.) 2230-60-3: 11.1 kg / 24 lb.)
Operating Altitude	Up to 2000 meters (6562 ft ) above sea level
Storage Altitude	Up to 4000 meters (13124 ft ) above sea level
Operating Temperature	0 °C to 40 °C, 10% to 80% relative humidity up to 40°C
Storage Temperature	–20°C to 70°C, 10% to 80% relative humidity up to 40°C –20°C to 70°C, 5% to 60% relative humidity above 40°C up to 70°C

Specifications
2230 Series High Power Programmable Power Supplies
Model Overview
Model	Total Power	Channel 1 and 2 Max V	Channel 1 and 2 Max I	Channel 3 Max V and I
2230-30-3	195W	30 V	3A	5V @ 3A
2230-60-3	375W	60V	3A	5V @ 3A
2230-30-6	375W	30V	6A	5V @ 3A
